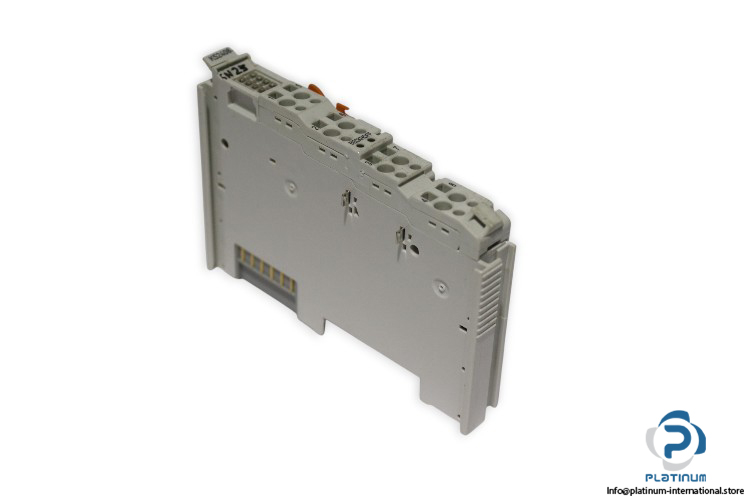

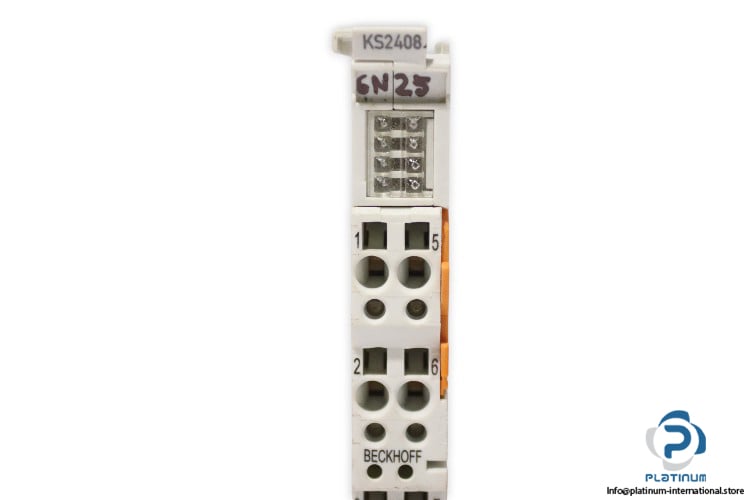

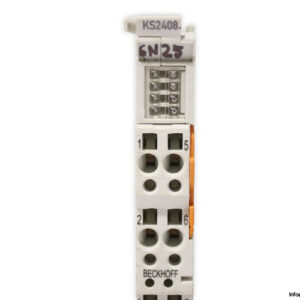

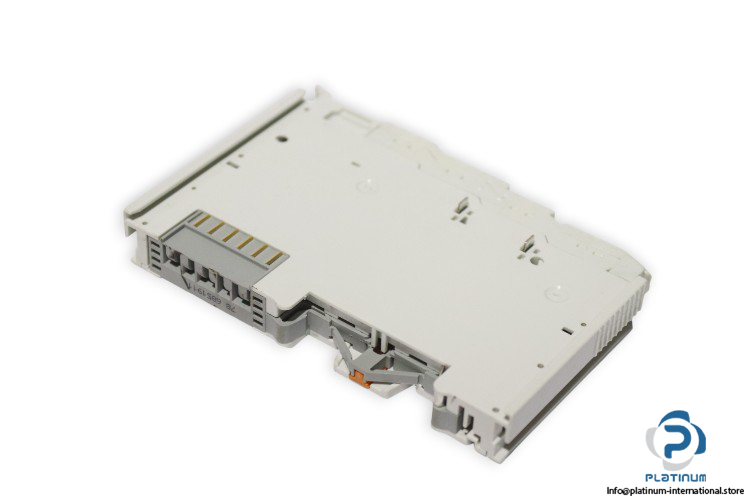

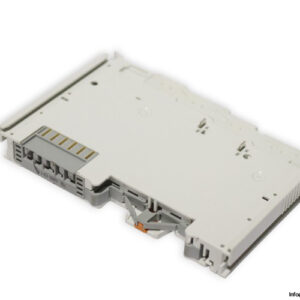

Beckhoff KS2408 Digital Output Terminal

The Beckhoff KS2408 is a compact and reliable digital output terminal designed for industrial automation systems. Belonging to the KS2xxx series, it offers high performance, safe operation, and flexible integration with pluggable wiring for all KSxxxx bus terminals.

Manufacturer: Beckhoff
Type: Digital Output Terminal
Model: KS2408

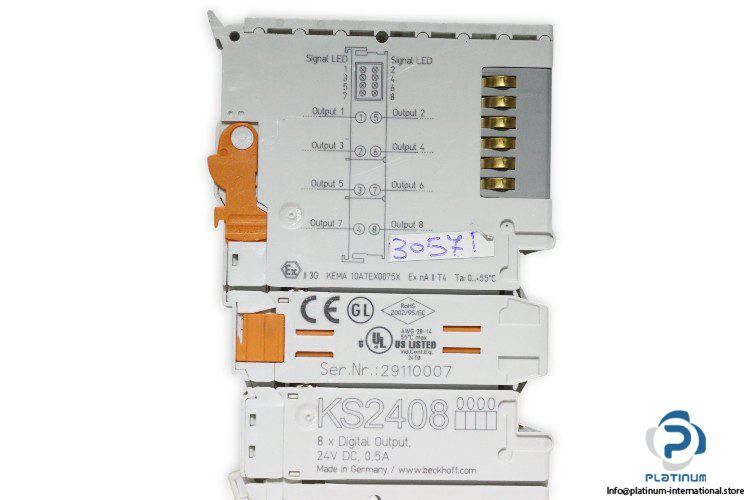

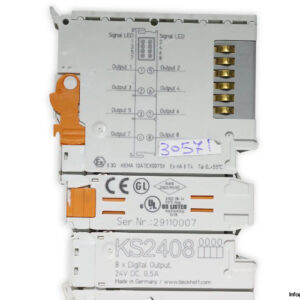

Serial No.: 29110007
Series: KS2xxx

Technical Information

• Connection Technology: 1-wire
• Number of Outputs: 8 (positive switching)
• Nominal Voltage: 24 VDC (-15 %/+20 %)
• Load Type: Ohmic, Inductive, Lamp Load
• Max. Output Current: 0.5 A (short-circuit proof) per channel
• Short Circuit Current: < 2 A
• Electrical Isolation: 500 V (K-bus / field voltage)
• K-Bus Current Consumption: typ. 18 mA
• Current Consumption Power Contacts: typ. 60 mA + load
• Bit Width in Process Image: 8 outputs
• Dimensions (W x H x D): 15 mm x 100 mm x 70 mm
• Protection Class: IP20
• Wiring: Pluggable wiring for all KSxxxx Bus Terminals
• ATEX Certification: II 3 G Ex nA IIC T4 Gc, II 3 D Ex tc IIIC T135 °C Dc
