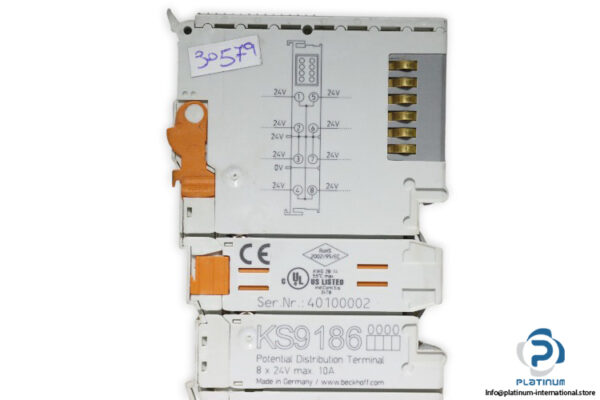

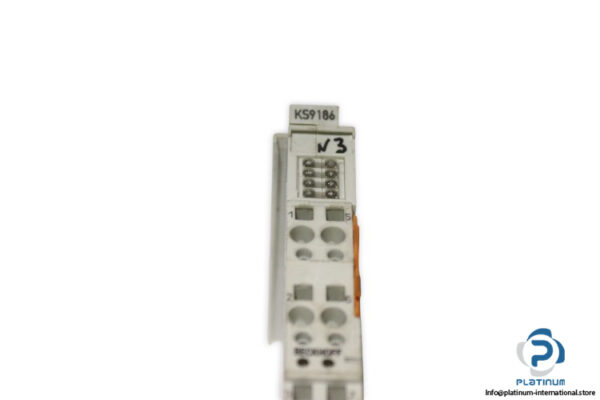

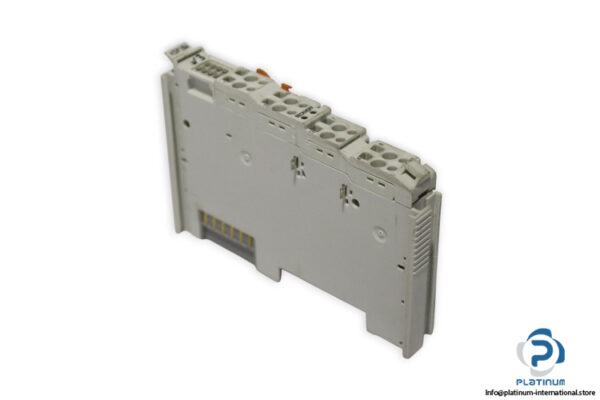

Beckhoff KS9186 Potential Distribution Terminal
The Beckhoff KS9186 is a compact potential distribution terminal designed for efficient and reliable distribution of 24 V power in automation systems. With a slim 12 mm housing and multiple connection options, it is built for space-saving installation and dependable operation.
Manufacturer: BECKHOFF
Type: Potential Distribution Terminal
Model: KS9186
SN: 40100002
Technical Information
- Housing Width: 12 mm
- Number of Outputs: 8 x 24 V contact
- Connection Facility to Additional Power Contact: 8
- Special Features: 8 x 24 V connection
- Operating Temperature: -25 / +60°C
- Ex Marking ATEX: II 3 G Ex ec IIC T4 Gc
- IECEx: Ex ec IIC T4 Gc
- Material: Polycarbonate
- Installation: On 35 mm DIN rail, conforming to EN 60715 with lock
- Side by Side Mounting: Double slot and key connection
- Current Load Power Contacts: Imax: 10 A
- Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
