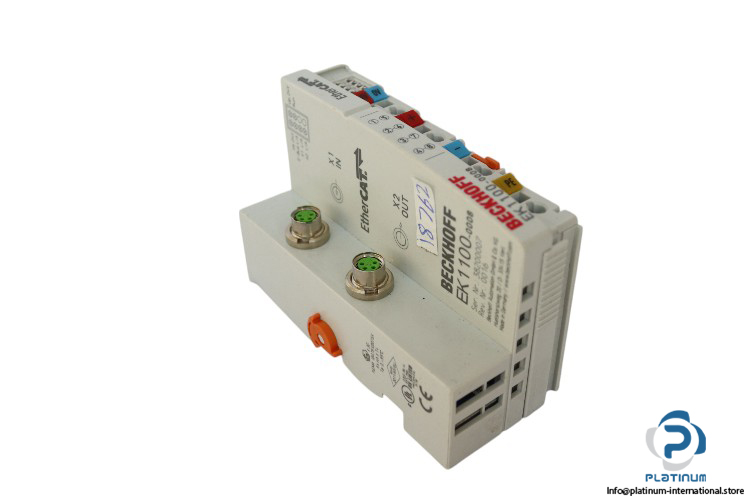

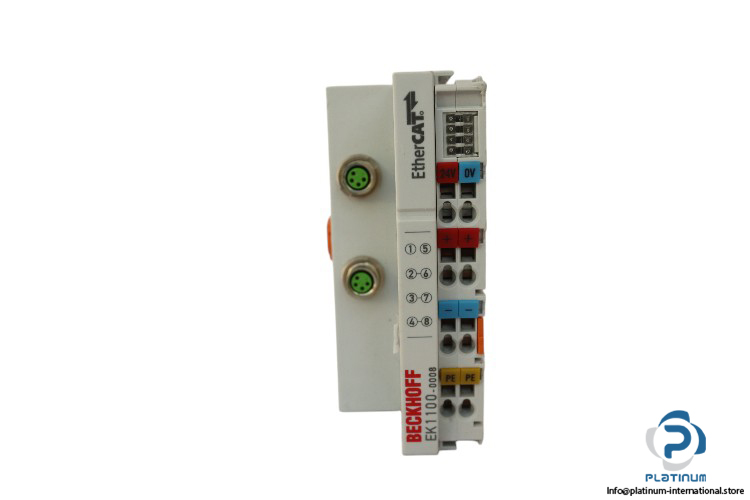

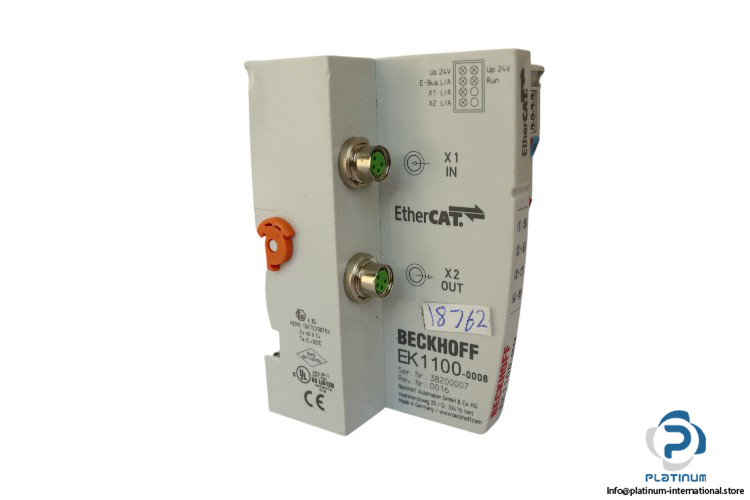

Beckhoff EK 1100-0008 Ethercat Coupler
EtherCAT Coupler
The Beckhoff EK 1100-0008 EtherCAT Coupler supports 24 V DC power supply, 100 Mbit/s data transfer, and 2 x M8 screw-type interfaces. It features 2000 mA E-bus current supply and operates in temperatures from -25°C to +60°C.Beckhoff EK 1100-0008 EtherCAT Coupler
The Beckhoff EK 1100-0008 EtherCAT Coupler is designed to facilitate seamless communication between devices in an industrial Ethernet network. This compact terminal housing features signal LEDs for status indication, making it easy to monitor its operation. The coupler supports data transfer rates of 100 Mbit/s and uses two M8, shielded screw-type bus interfaces for reliable and secure connections. It operates with a 24 V DC power supply and has a current consumption of 70 mA. The unit is capable of handling a maximum current load of 10 A on its power contacts, with a K-bus current supply of 2000 mA.
Manufacturer: Beckhoff
Type: EtherCAT Coupler
Model: EK 1100-0008
This EtherCAT Coupler is ideal for industrial applications requiring robust and reliable communication, offering flexible mounting and ease of integration with other devices in the network.
| Design Form | Compact terminal housing with signal LEDs |
| Distance Between Stations Max. | 100 m |
| Data Transfer Rates | 100 Mbit/s |
| Bus Interface | 2 x M8, shielded, screw type |
| Power Supply | 24 V DC |
| Current Consumption | 70 mA |
| Stripping Length | 8 / 9 mm |
| Current Load Power Contacts Imax | 10 A |
| Current Supply E-bus | 2000 mA |
| Power Contacts Max. | 24 V DC/max. 10 A |
| Electrical Isolation | 500 V |
| Mounting | Side by side mounting by means of double slot and key connection |
| Protection Rating | IP20 |
| Material | Polycarbonate |
| Operating Temperature | -25°C to +60°C |
| Dimensions (W x H x D) | 44 mm x 100 mm x 68 mm |
