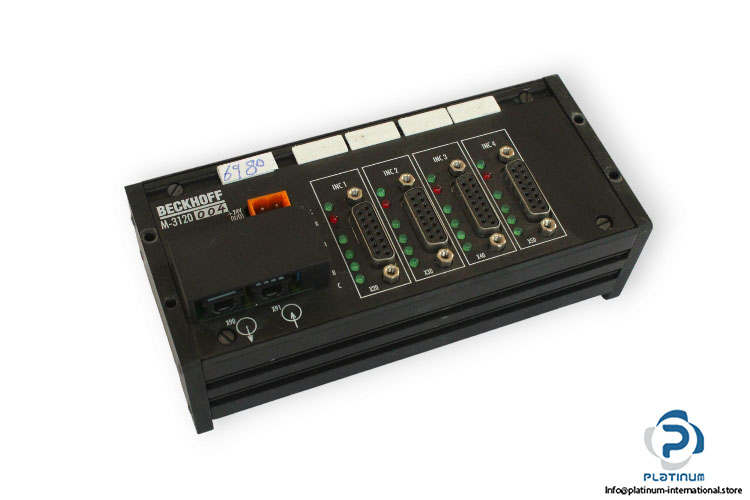

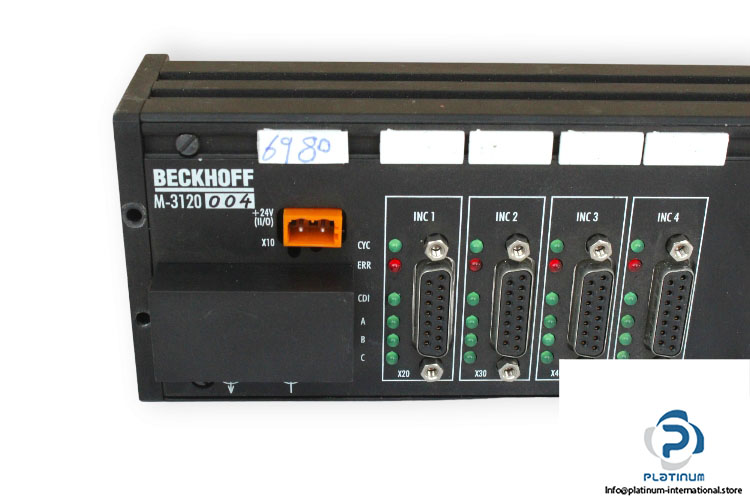

BECKHOFF M3120004 INCREMENTAL ENCODER
The Beckhoff M3120004 is a high-performance incremental encoder designed for precise digital signal processing in industrial automation systems. Its robust construction, fast data transmission, and compact form make it ideal for space-sensitive applications.
Manufacturer: Beckhoff
Type: Incremental Encoder
Model: M3120004
Technical Information
- Power Supply: 24 V DC
- Input Voltage: 24 V DC (0“8V = LOW, 15“24V = HIGH)
- Input Current: 10 mA
- Counter: 24 Bits Binary
- Limiting Frequency: 1 MHz
- Data Connection: II/O-Light Bus System
- Transmission Rate: 2.5 MBaud, 25µsec for 32 Bits
- Housing: Compact Aluminum Housing for Terminal Rail Mount
- Operating Temperature: 0 / +55°C
- Dimensions: 170 x 76 x 68 mm
