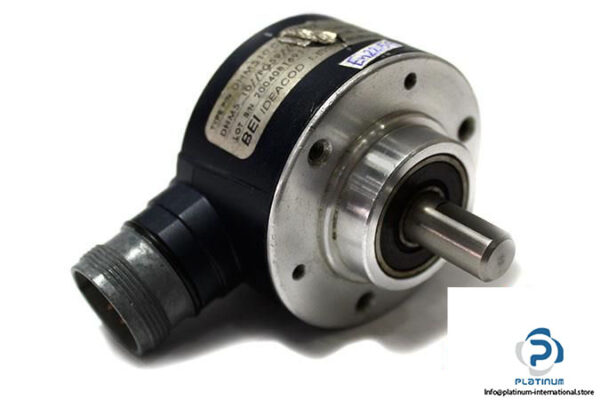

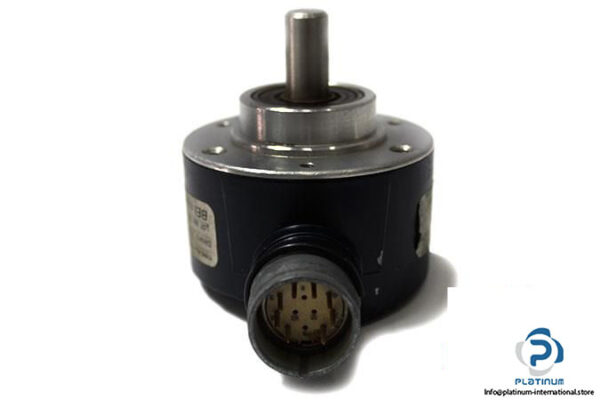

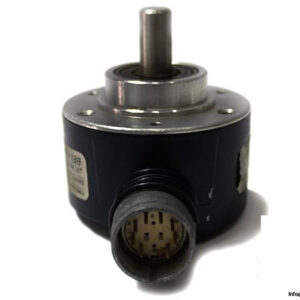

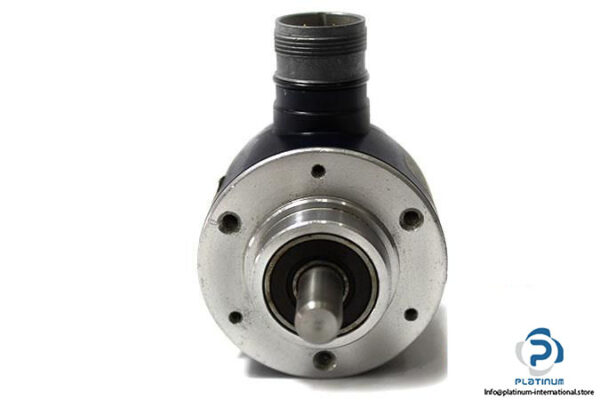

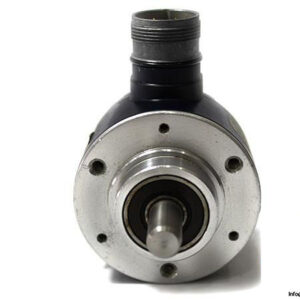

BEI DHM5-100180-002 INCREMENTAL ENCODER

The BEI DHM5-100180-002 is a high-precision incremental encoder engineered for industrial motion control and automation systems. Offering 180 Pulses Per Revolution (PPR) with robust protection and compact mechanical design, this encoder ensures reliable signal output in harsh environments.

Manufacturer: BEI
Type: Incremental Encoder
Model: DHM5-100180-002

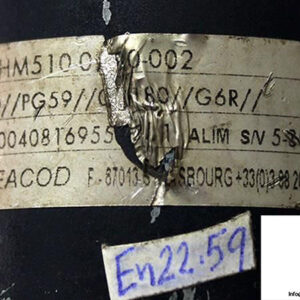

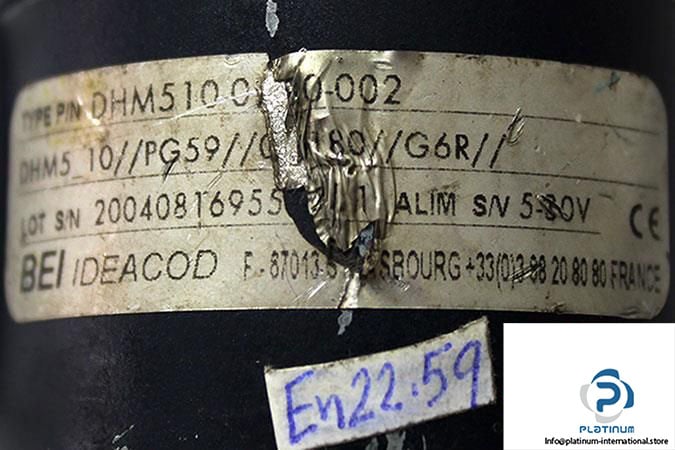

Order Code: DHM5_10//PG59//00180//G6R//

Technical Information

• Flange Design: Clamping flange
• Shaft Type: Solid shaft
• Shaft Diameter: 10 mm
• Resolution: 180 Pulses per Revolution (PPR)
• Voltage Supply: 5 / 30 VDC
• Output Frequency: 0 / 300 kHz
• Max Rotation Speed: 9000 rpm

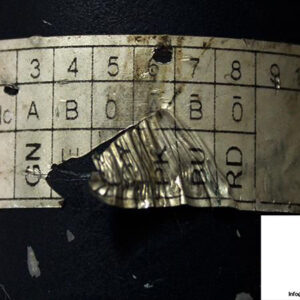

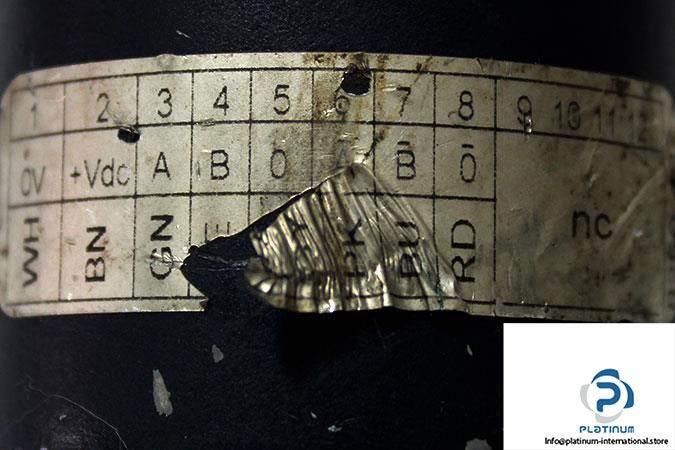

• Connection Type: M23, 12 Pins
• Protection Class: IP65
• Temperature Range: -30 / 100 °C
