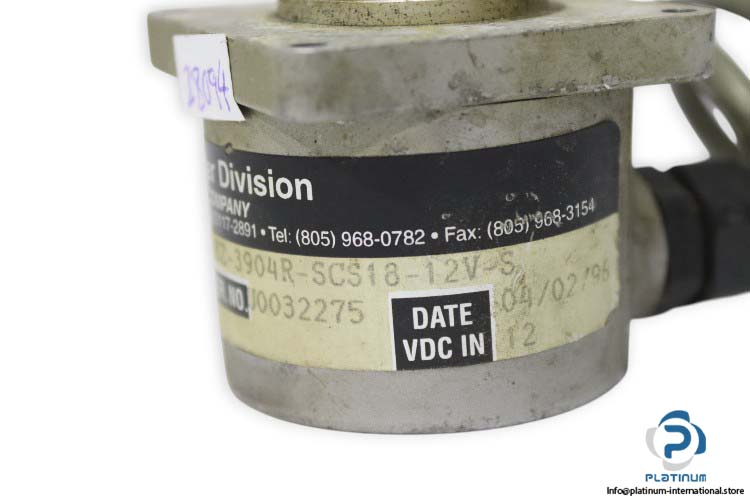

Manufacturer: BEI

Type: Incremental Encoder

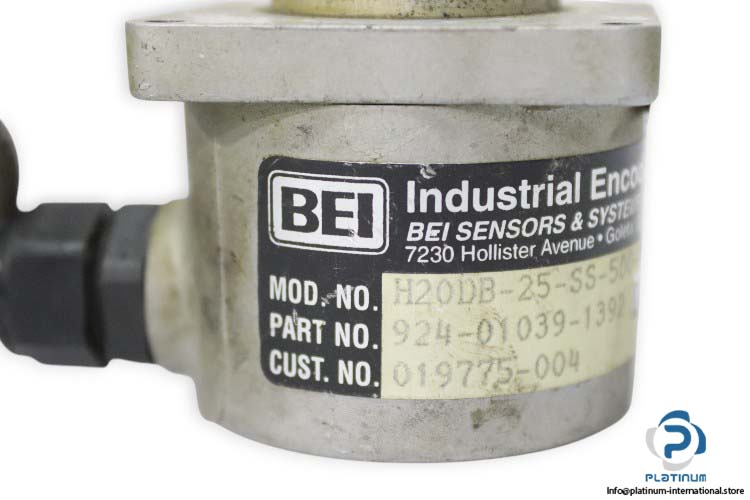

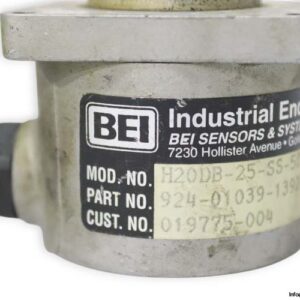

Model: H20DB-25-SS-500-ABZ-3904R-SCS18-12V-S

Part No.: 924-01039-1392

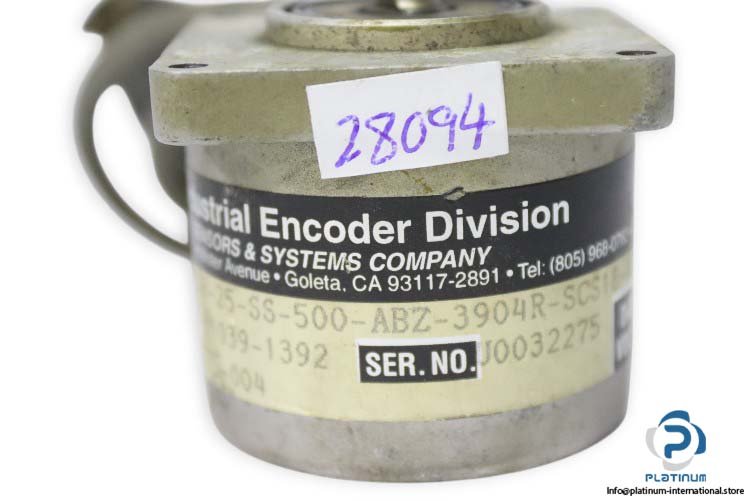

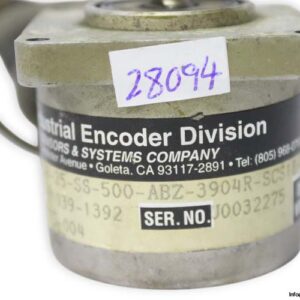

Serial No.: J0032275

Series: H20

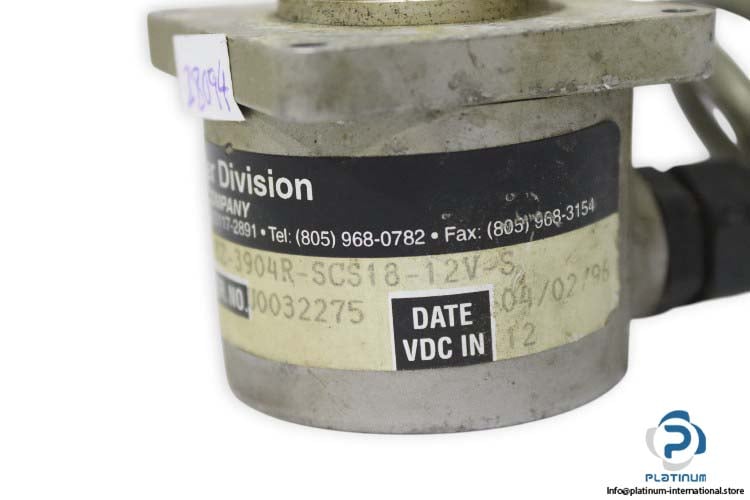

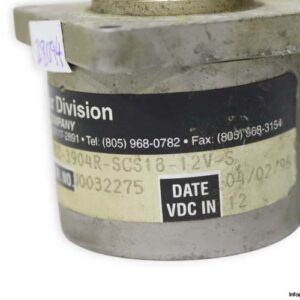

Supply Voltage: 12 V DC

Resolution: 500 pulses per revolution (PPR)

Housing Configuration: Square Flange

No. of Channels: Dual with Index

Shaft Diameter: 6.34 mm

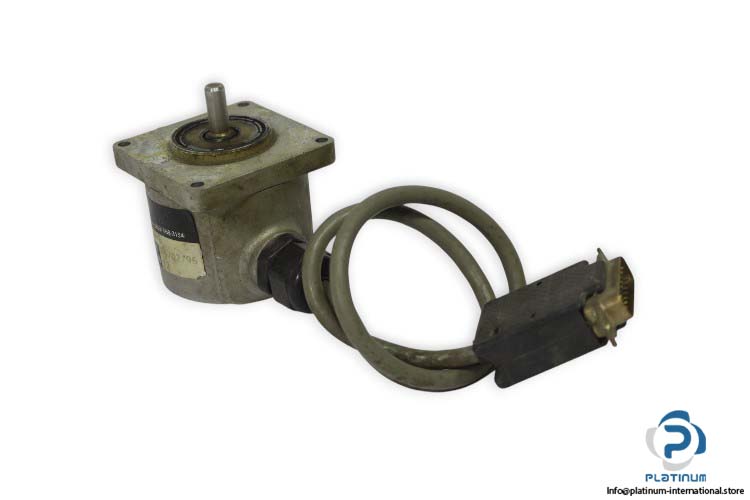

The BEI H20 Series incremental encoder offers high-resolution feedback for industrial motion control systems. Built with a square flange housing and dual output channels with an index pulse, this encoder provides accurate and stable position tracking. Designed for compact installations and precise rotary motion sensing, it is ideal for servo systems, automation machinery, and motor feedback applications. The 500 PPR resolution combined with a robust 12V DC supply ensures reliable performance in dynamic environments.
