Eltra EL63F1000Z5/28C8X3PR Incremental Encoder
INCREMENTAL ENCODER

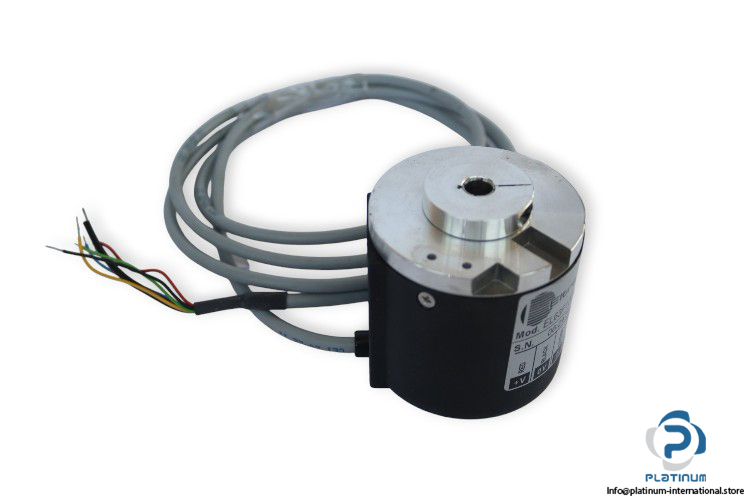

ELTRA EL63F1000Z5/28C8X3PR is an optical incremental rotary encoder with a blind hollow shaft, 1000 PPR resolution, IP54 protection, and NPN open collector output, ideal for high-speed motion control.ELTRA EL63F1000Z5/28C8X3PR INCREMENTAL ENCODER
The ELTRA EL63F1000Z5/28C8X3PR is a high-precision incremental encoder ideal for rotary motion sensing in industrial automation systems. Designed with durability and accuracy in mind, it features a robust blind hollow shaft, spring mounting, and optical sensing technology. Its compact design and broad power input range make it suitable for various demanding environments.
Manufacturer: ELTRA
Type: Incremental Encoder

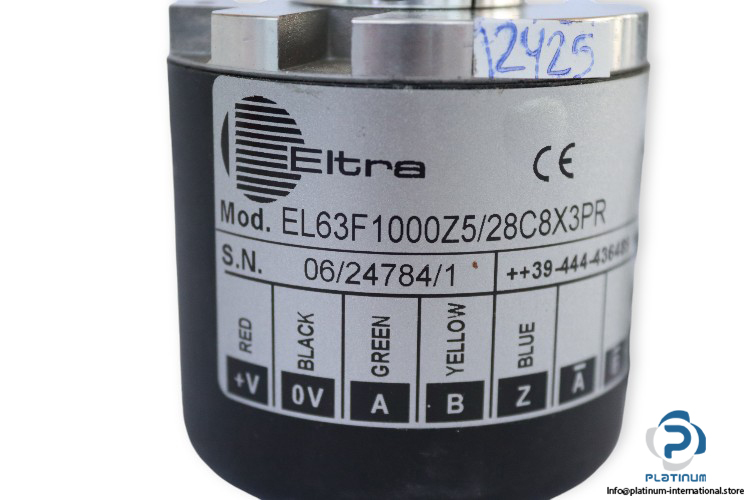

Model: EL63F1000Z5/28C8X3PR
Serial No.: 06/24784/1
| Power Supply | 5 / 28 V DC |
| Principle of Operation | Incremental |
| Shaft Type | Blind Hollow Shaft |
| Mounting Type | With Spring |
| Electronic Interface | NPN Open Collector |
| Resolution | 1000 PPR |
| Bore Diameter | 8 mm |
| Max Rotation Speed | 3000 RPM |

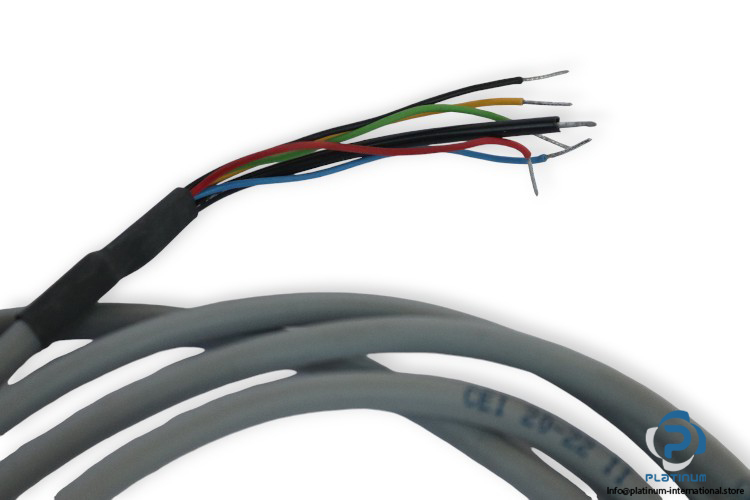

| Output Type | Cable (6 Wires) |
| Protection Degree | IP54 |
| Direction Type | Radial |
| Construction Size (Diameter) | 63.5 mm |
| Max Output Frequency | 250 kHz |
| Operating Temperature | -10 / +60°C |
| Measurement Type | Rotary |
| Type of Sensor | Optical |
