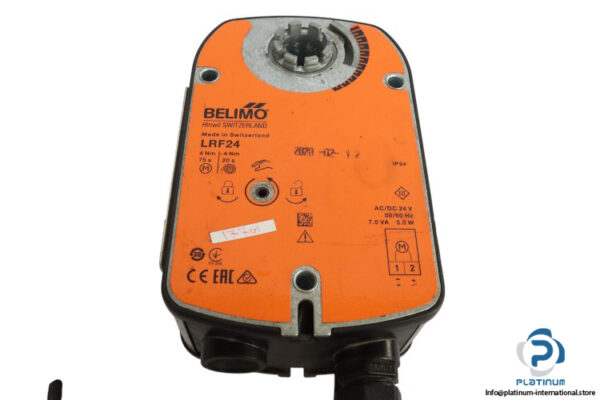

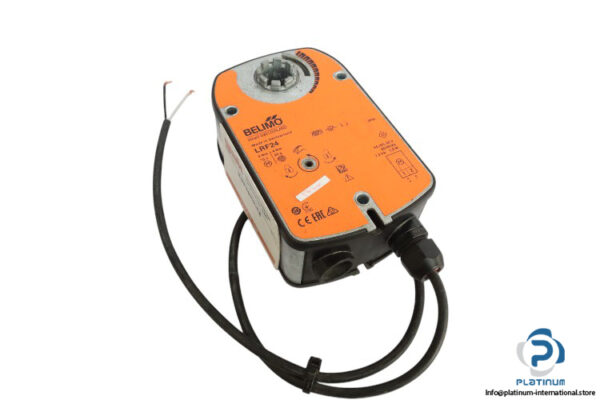

BELIMO Rotary Actuator LRF24
The BELIMO LRF24 Rotary Actuator is designed for precision control and efficient operation in industrial applications. Operating on a 24 V AC/DC power supply, it provides 4 Nm torque with an IP54 protection rating, ensuring durability and reliability. With its compact design and robust performance, the LRF24 is ideal for demanding environments.
Specifications:
- Manufacturer: BELIMO
- Type: Rotary Actuator
- Model: LRF24
- Nominal Voltage: 24 V AC/DC
- Nominal Voltage Frequency: 50/60 Hz
- Nominal Voltage Range: 19.2…28.8 V / DC 21.6…28.8 V AC
- Power Consumption (Operation): 5 W
- Power Consumption (Rest Position): 2.5 W
- Power Consumption for Wire Sizing: 7 VA
- Connection Supply/Control Cable: 1 m, 2x 0.75 mm²
- Torque Motor: 4 Nm
- Degree of Protection: IP54
- Rated Impulse Voltage: 0.8 kV
- Pollution Degree: 3
- Ambient Temperature: -30…50°C
- Dimensions: 87.5 x 155 x 98 mm
