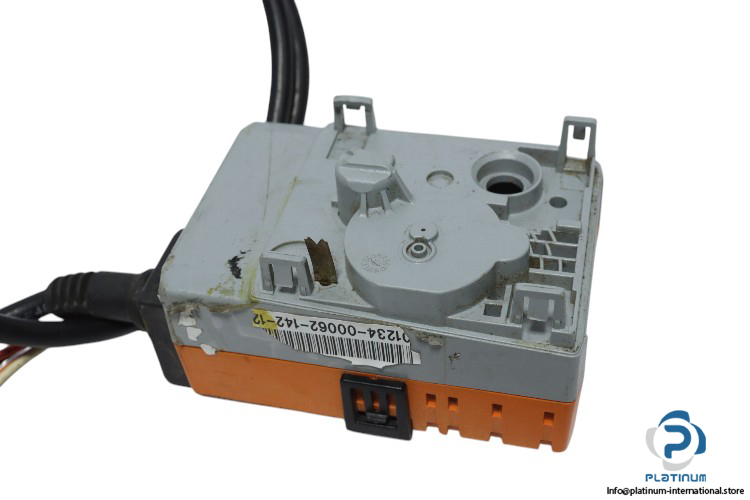

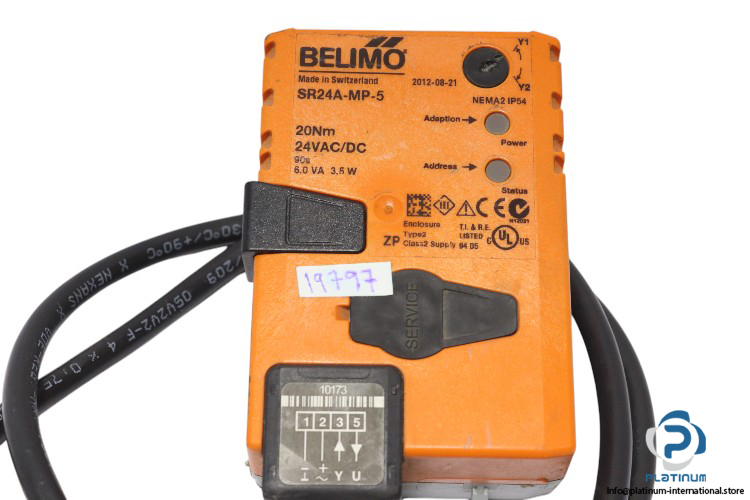

Belimo SR24A-MP-5 Rotary Actuator

In stock1 unitReady to ship

Belimo Rotary Actuator SR24A-MP-5

24V AC/DC rotary actuator with 20 Nm torque, MP-Bus control, and temperature range of -30 to 50°C for HVAC systems.

Manufacturer
BELIMO
SKU
1060053
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Belimo Rotary Actuator SR24A-MP-5

The Belimo Rotary Actuator SR24A-MP-5 is designed for precise control of heating, ventilation, and air conditioning (HVAC) systems. It operates with a nominal voltage of AC/DC 24 V and features a torque motor of 20 Nm. The actuator supports communicative control via MP-Bus and can accommodate up to 8 nodes. The power consumption is 3.5 W during operation and 1.25 W in the rest position, with a power consumption for wire sizing of 6 VA. The actuator operates within a temperature range of -30 to 50°C, providing reliable performance for various HVAC applications.

Nominal VoltageAC/DC 24 V
Nominal Voltage Frequency50/60 Hz
Nominal Voltage Range19.2...28.8 V AC / 21.6...28.8 V DC
Power Consumption in Operation3.5 W
Power Consumption in Rest Position1.25 W
Power Consumption for Wire Sizing6 VA
Connection Supply/ControlCable 1 m, 4x 0.75 mm²
Communicative ControlMP-Bus
Number of Nodes MP-Bus Max8
Torque Motor20 Nm
Operating RangeY 2...10 V
Input Impedance100 k„¦
Ambient Temperature-30...50°C
