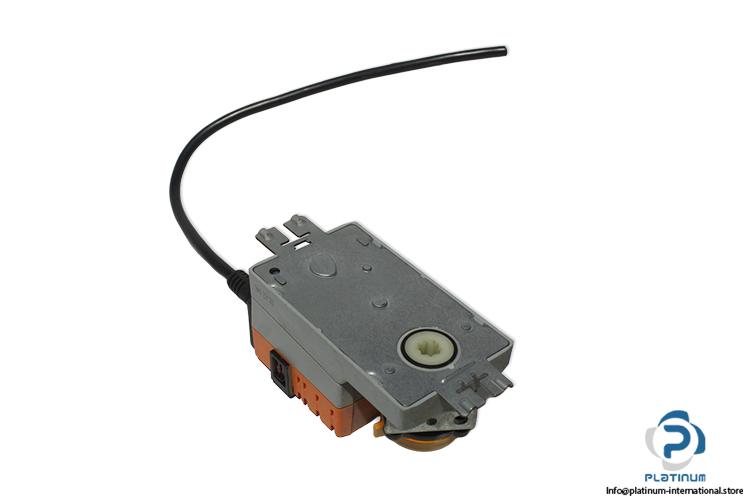

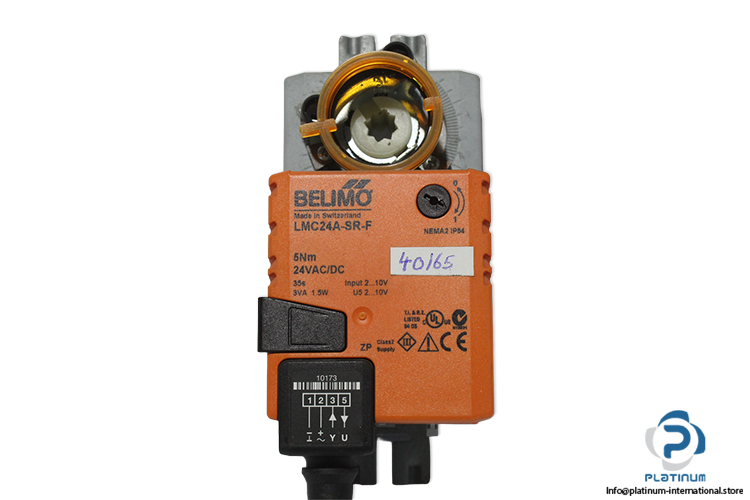

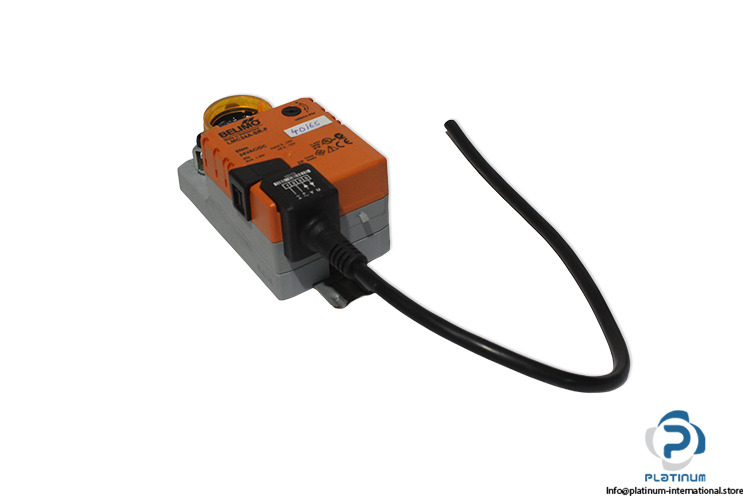

Belimo LMC24A-SR-F Damper Actuator
Used
In stock2 unitsReady to ship
Damper Actuator The BELIMO LMC24A-SR-F is a 24 V AC/DC damper actuator with 5 Nm torque, 35 s running time, and IP54 protection for HVAC automation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Rated Nominal Voltage | 24 V AC/DC |
| Power Consumption In Operation | 1.5 W |
| Power Consumption In Rest Position | 0.4 W |
| Power Consumption For Wire Sizing | 3 VA |
| Frequency | 50 … 60 Hz |
| Torque | 5 Nm |
| Shaft Connection | Positive Connection 8 x 8 mm Square Shaft |
| Running Time | 35 s |
| Manual Operation | Pushbutton, Auto-Return |
| Angle of Rotation Max. | 95° |
| Sound Power Level Max. | 45 dB (A) |
| Position Indication | Mechanical |
| Protection Class | IP54 |
| Ambient Temperature | -30 … 50 °C |
| Dimensions | 116 x 66 x 61 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103977 |
| Weight | 0,41 |
