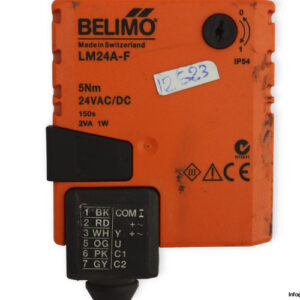

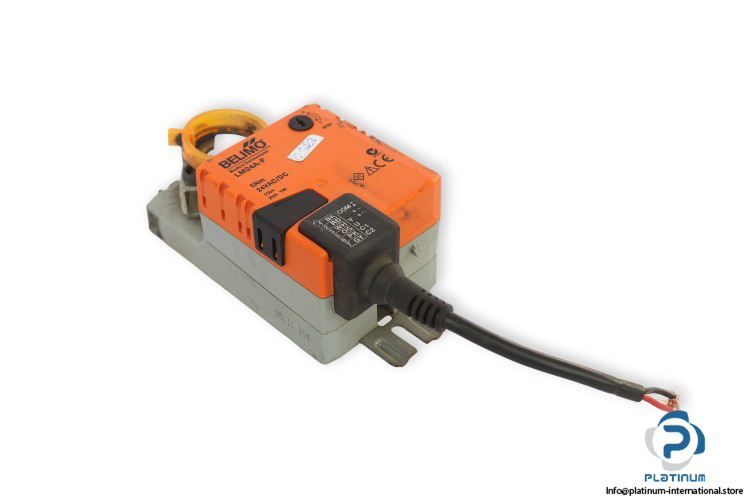

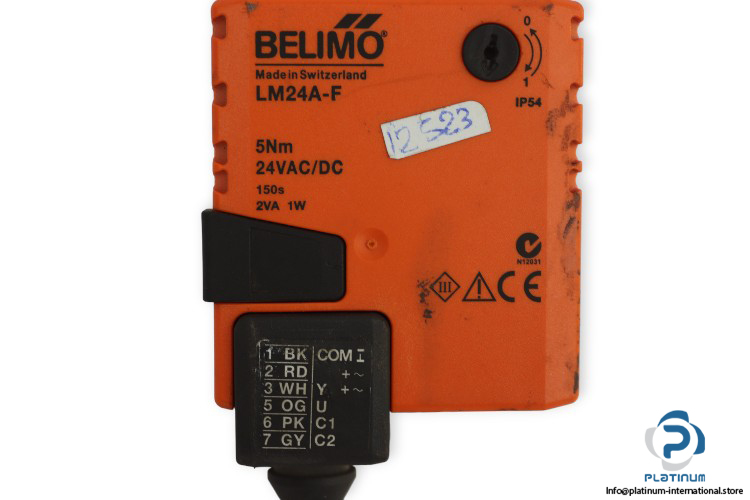

Belimo LM24A-F Damper Actuator

Manufacturer: Belimo
Type: Damper actuator
Model: LM24AF

Used: for adjusting dampers in technical building installations
Torque motor: 5 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC/DC)
Nominal voltage frequency: 50/60 Hz
Power consumption: 1 W
Power consumption for wire sizing: 2 VA
Angle of rotation max.: 95°
Direction of motion motor: selectable with switch 0 (ccw rotation) / 1 (cw rotation)
Running time motor: 150 s / 90°
Degree of protection: IP54
Connection Cable cross section: 3x 0.75 mm²
Ambient temperature: -30 … 50°C
Dimensions: 61 x 116 x 66 mm
