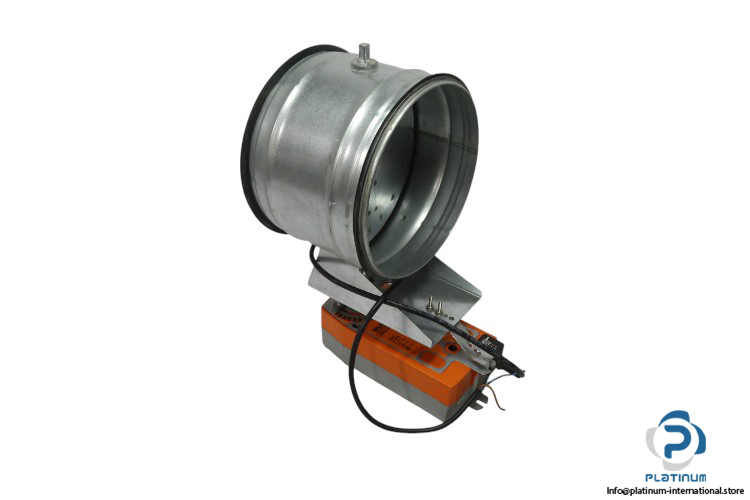

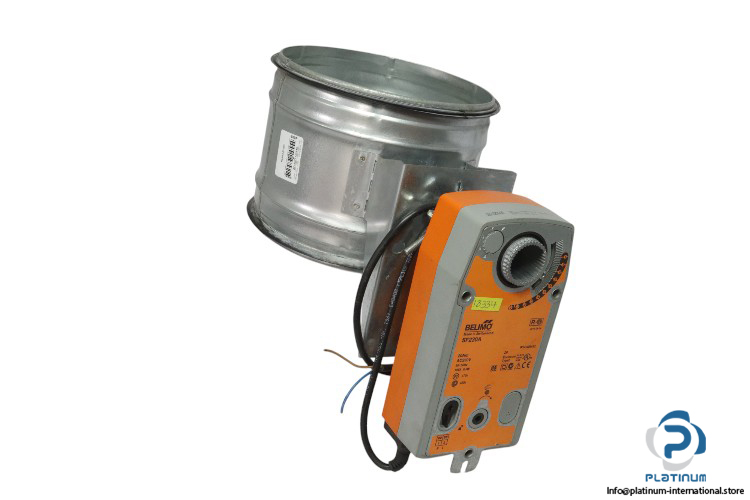

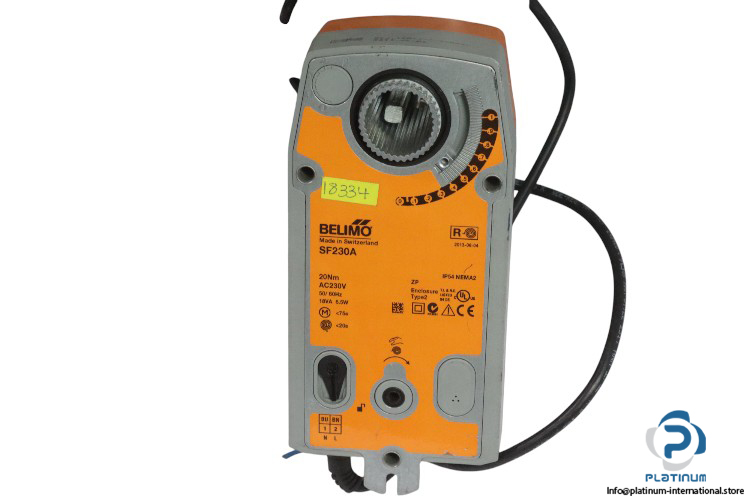

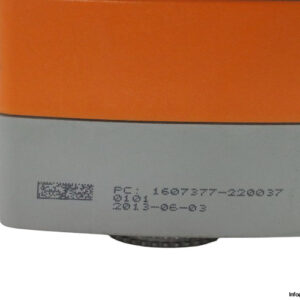

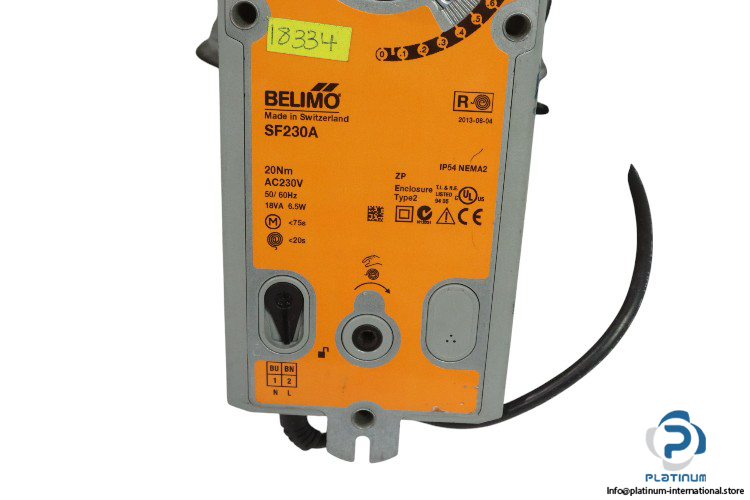

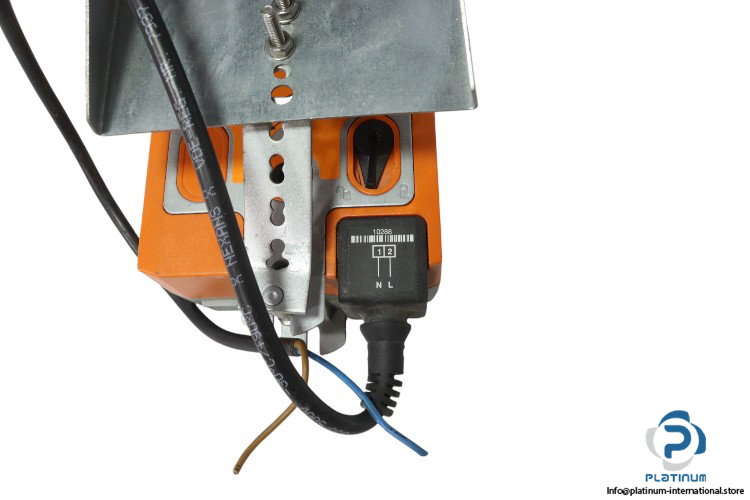

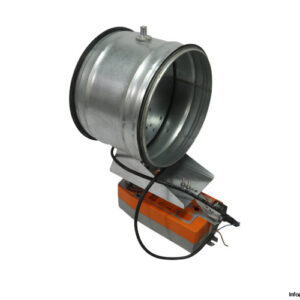

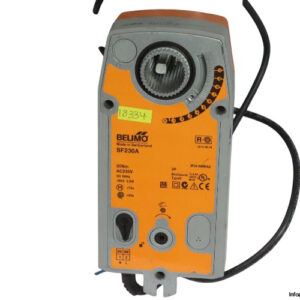

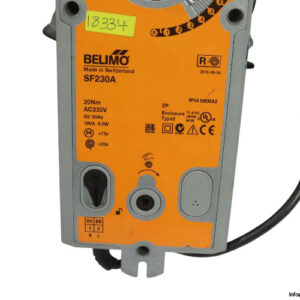

Belimo SF230A Rotary Actuator

Belimo SF230A Rotary Actuator

The Belimo SF230A is a high-performance rotary actuator engineered for reliable operation in HVAC and automation systems. Operating on 230V AC, this actuator is optimized for low power consumption with 6.5 W in motion and 3.5 W at rest. Built with an IP54 protection rating and a wide operating temperature range, it is suitable for various indoor and protected outdoor environments.

• Manufacturer: Belimo
• Type: Rotary Actuator
• Model: SF230A

Technical Specifications:

• Nominal Voltage: 230V AC, 50/60 Hz
• Power Consumption: 6.5 W (operation), 3.5 W (rest)
• Wire Sizing Power: 18 VA
• Degree of Protection: IP54
• Rated Impulse Voltage: 4 kV
• Ambient Temperature: -30 … 50°C

Applications:

• HVAC systems
• Air damper control
• Building automation
