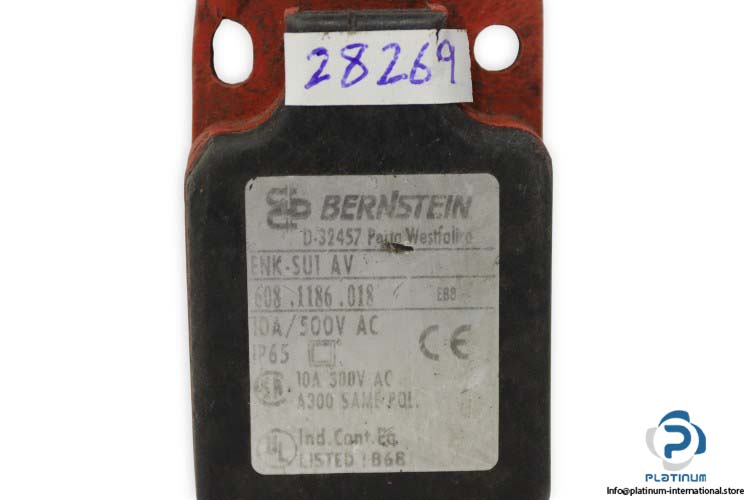

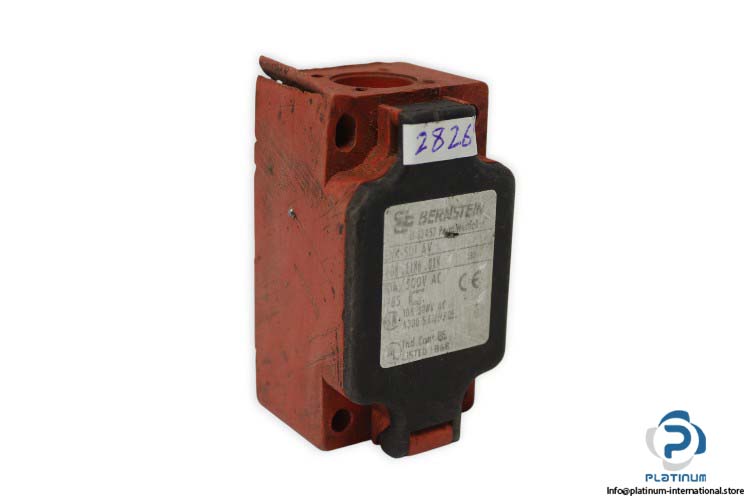

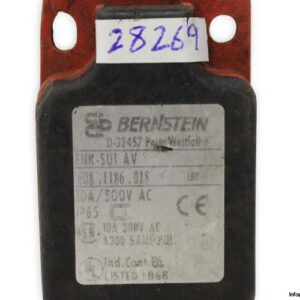

BERNSTEIN ENK-SU1 AV PLASTIC BODIED LIMIT SWITCH

The Bernstein ENK-SU1 AV is a robust plastic-bodied limit switch designed for reliable position detection in industrial automation and machinery applications. Featuring a thermoplastic, glass fibre reinforced housing and a turret head roller actuator, it ensures long service life and dependable performance in demanding environments. This model offers high insulation voltage, wide operating temperature range, and IP65 protection.

Manufacturer: BERNSTEIN
Type: Plastic Bodied Limit Switch
Model: ENK-SU1 AV
Part No.: 608-1186-018

Technical Information

• Rated Insulation Voltage (Ui): 400 V AC
• Conventional Thermal Current (Ithe): 10 A
• Rated Operational Voltage (Ue): 240 V
• Short-Circuit Protective Device: Fuse 2 A gG
• Enclosure: Thermoplastic, glass fibre reinforced (UL 94-V0)
• Cover: Thermoplastic, glass fibre reinforced (UL 94-V0)
• Actuator: Turret head, roller (thermoplastic)
• Cable Entrance: 1 x M20 x 1,5
• Protection Type: IP65
• Contact: 1 NC, 1 NO
• Ambient Temperature: -30 °C … 80 °C
