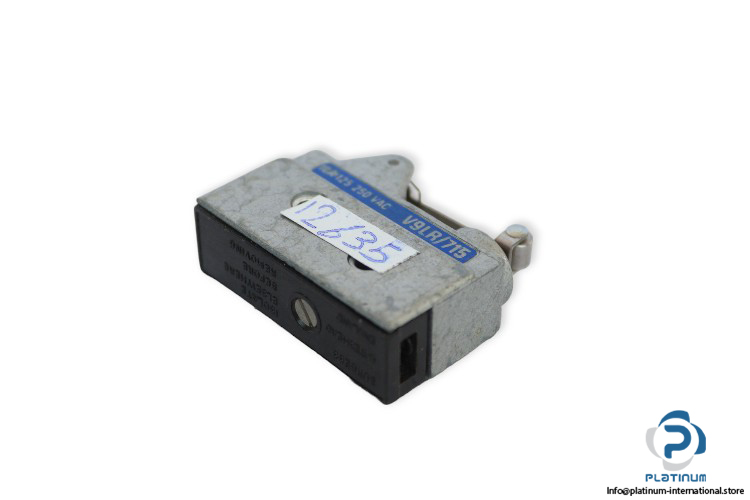

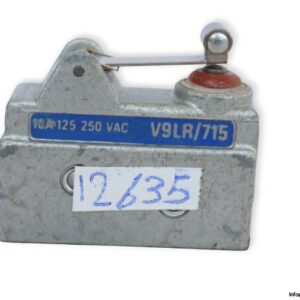

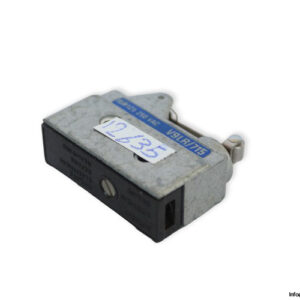

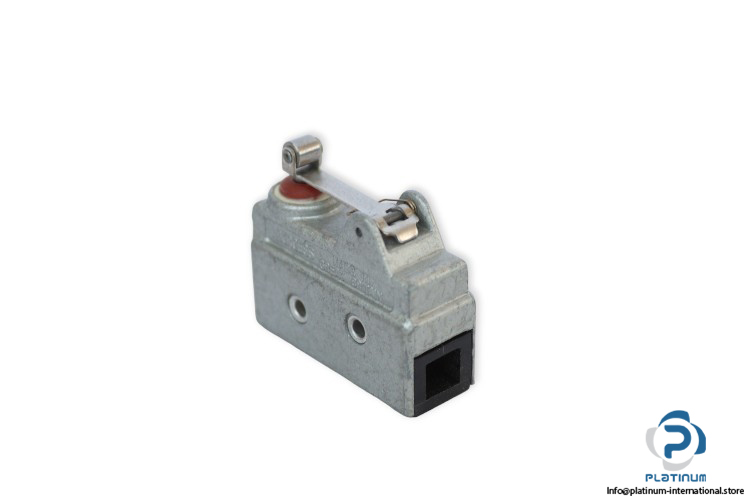

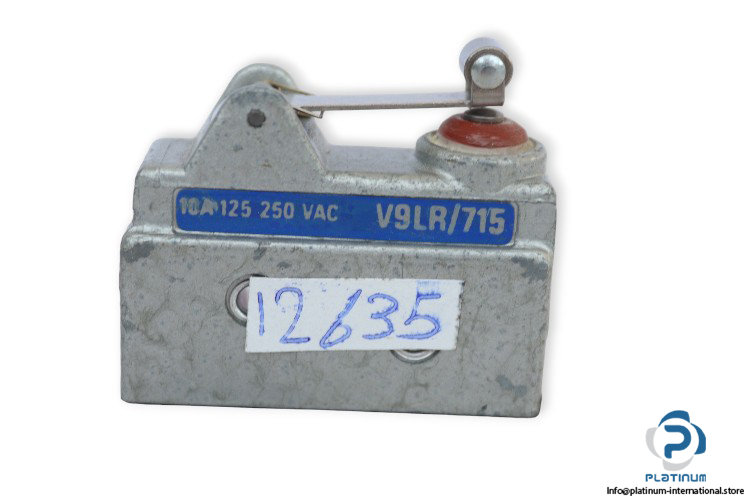

Burgess V9LR/715 Micro Switch

Manufacturer: BURGESS
Type: Micro Switch
Model: V9LR715

Rated Voltage: 125 … 250 V AC
Rated Current: 10 A
Frequency: 50 … 60 Hz
Contact: SPDT
Actuator Type: Roller Lever
Actuator Length: 22 mm
Material: Zinc Diecasting
Protection Class: IP67
Temperature: -40 … 125 °C
Dimensions: 42.3 x 28.1 x 16 mm
