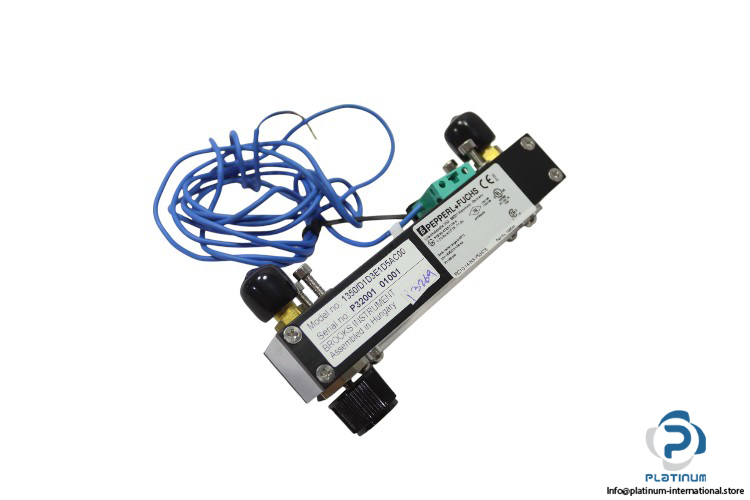

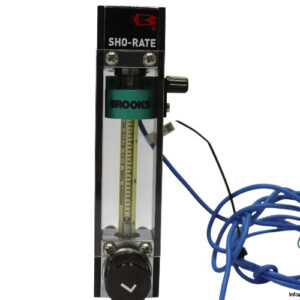

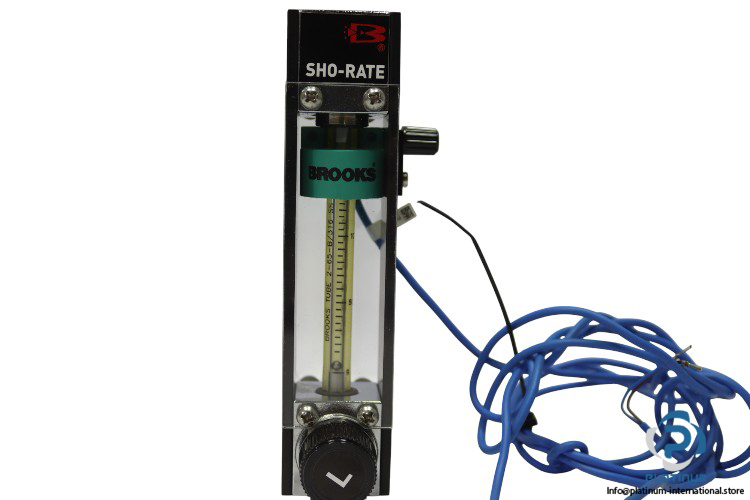

Brooks Instruments 1350D1D3E1D5AC00 “ Glass Tube Variable Area Low-Flow Meter

The Brooks Instruments 1350D1D3E1D5AC00 Glass Tube Variable Area Low-Flow Meter is designed for precision flow measurement in critical industrial applications. With its robust construction and wide flow ranges, this meter is ideal for use in pharmaceutical production, research, and chemical manufacturing.

• Manufacturer: Brooks Instruments
• Type: Glass Tube Variable Area Low-Flow Meter
• Model: 1350D1D3E1D5AC00
• Series: Sho-Rate„¢

Applications:

• Pharmaceutical production
• Research
• Chemical manufacturing
• Analytical instrumentation
• Water treatment and distribution systems

Technical Information:

• Flow Ranges:
• Air: Up to 140 scfh / 63 slpm
• Water: Up to 34 gph / 2000 cc/min
• Max Pressure: 200 psig
• Max Temperature: 121°C
• Materials of Construction: Borosilicate Glass, Brass, Aluminum, 316 Stainless Steel, Clear Polycarbonate, Milk White Polycarbonate, Teflon
• Materials of Housing: Aluminum or Stainless Steel
• Metering Tube Material: Borosilicate Glass
• Float Material: Carboloy, Glass, Sapphire, Stainless Steel, Tantalum
• Connection Materials: Stainless Steel
• Scale Length: 150 mm

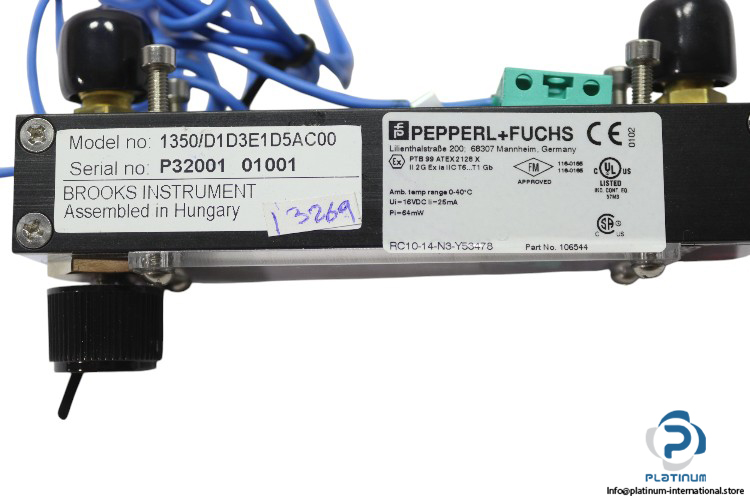

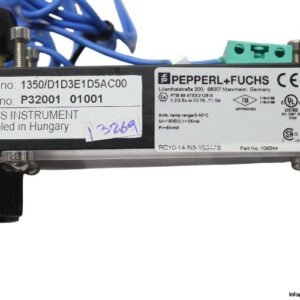

Pepperl+Fuchs RC10-14-N3-Y53478 Inductive Ring Sensor

The Pepperl+Fuchs RC10-14-N3-Y53478 inductive ring sensor is a reliable component designed for use with the Brooks Instruments low-flow meter for precise detection and control in flow measurement applications.

• Manufacturer: Pepperl+Fuchs
• Type: Inductive Ring Sensor
• Model: RC10-14-N3-Y53478
• Part No.: 106544

Technical Information:

• Initial Voltage: 16 V DC
• Current: 25 mA
• Initial Power: 64 mW
