Endress+Hauser 65I-20AB1AD1AAABCA Thermal Mass Flowmeter
Used
In stock1 unitReady to ship
Thermal Mass Flowmeter
The Endress+Hauser PROLINE t-MASS 65 thermal mass flowmeter measures gas flow rates from 20 to 720,000 kg/h. It supports various gases and offers digital communication options like Profibus and Modbus. Designed for duct or pipe installations, it is ideal for industrial gas measurement systems.65CommunicationDigitalEndress+HauserflowFlowmeterGasIndustrialInsertionMassMeasurementModbusProfibusProlineRatet-MASSThermal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

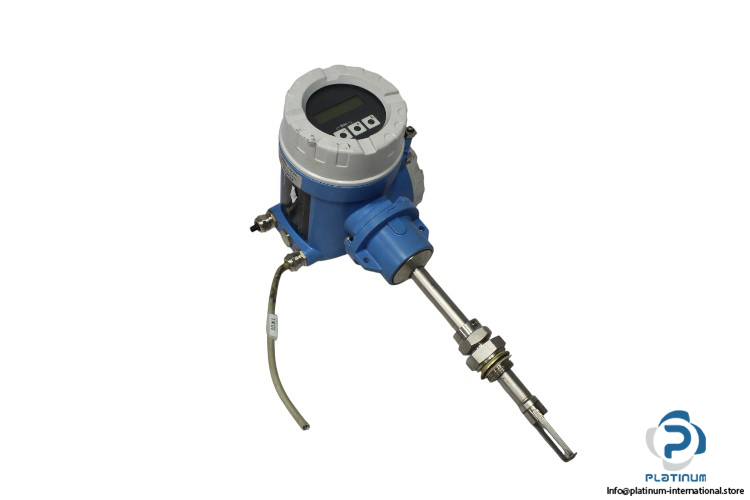

Endress+Hauser PROLINE t-MASS 65 “ Thermal Mass Flowmeter
The Endress+Hauser PROLINE t-MASS 65 is a state-of-the-art thermal mass flowmeter designed for precise mass flow measurement of gases in industrial applications. This model offers digital communication and flexible configurations, making it ideal for duct or pipe installations.
Manufacturer: Endress+Hauser
Type: Thermal Mass Flowmeter
Model: PROLINE t-MASS 65

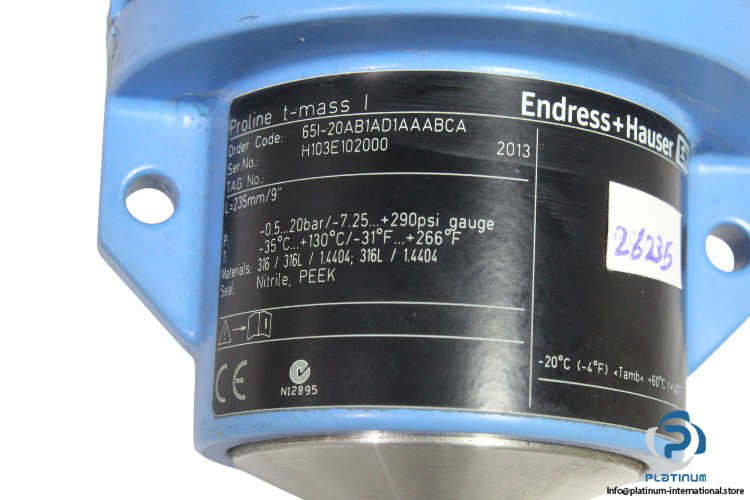

Order Code: 65I20AB1AD1AAABCA
| t-mass 65I | Insertion version for duct or pipe installations |
| Used | For precise measurement of mass flow rates of gases, particularly in industrial applications |
| Measuring Ranges | 20 to 720000 kg/h (44 to 1587328 lb/h) |
| Measuring Variables | Mass flow, temperature, volume flow, energy flow |
| Gas Compatibility | Suitable for air, oxygen, nitrogen, carbon dioxide, argon, and other gases |
| Digital Communication | Profibus DP, Profibus PA, Foundation Fieldbus, Modbus |
| Max. Process Pressure | -0.5 to 20 bar gauge (-7.25 to 290 psi gauge) |
| Output Signals | 4-20mA HART (active/passive selectable), pulse, frequency, status |
| Input Signal | 4-20mA, status input |

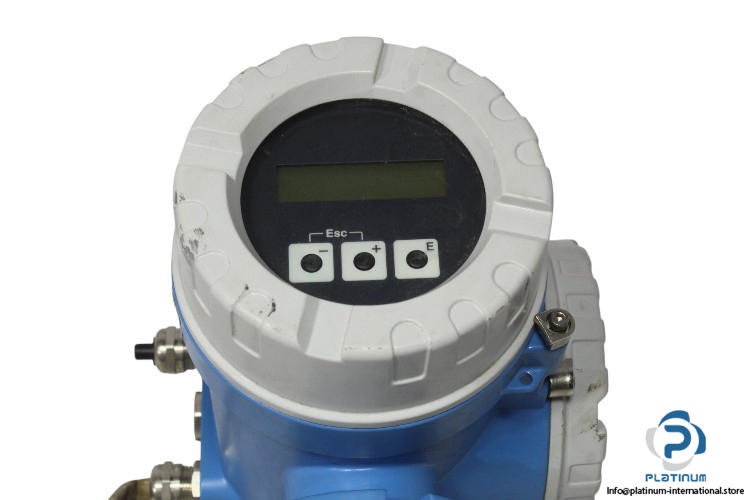

| Display | Liquid crystal: back-lit, two lines with 16 characters per line |
| Configuration | Via local display and operating tools possible |

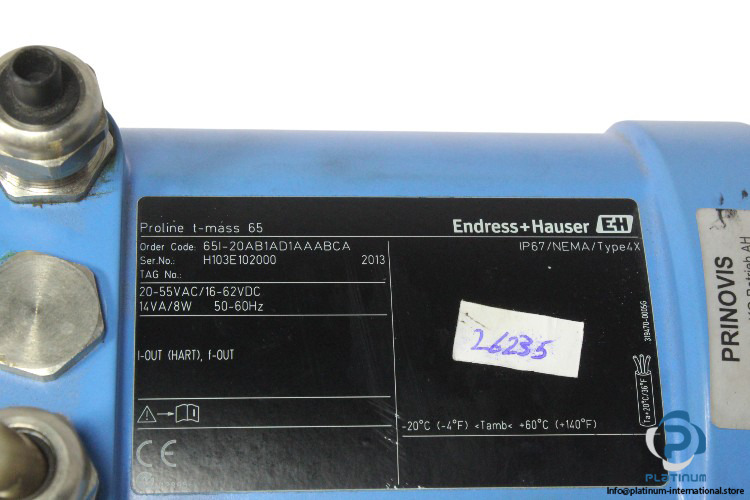

| Supply Voltage | 20 to 55 VAC, 50 to 60 Hz / 16 to 62 VDC |
| Power | 14VA/8W |
| Ambient Temperature Range | -20 to 60°C |
| Medium Temperature Range | -40 to +130°C |
| Transmitter Housing Material | Powder coated die-cast aluminum |
| Nominal Diameter Range | DN 80 to 1500 (3 to 60") |
| Protection Class | IP67 (NEMA 4X) for transmitter and sensor |
