Negele NSK-157/0700 Continuous Level Sensor
Used
In stock1 unitReady to ship
Continuous Level Sensor
The Anderson “ Negele NSK-157/0700 is a precise continuous level sensor for vessels up to 3 m. It features a 700 mm stainless steel electrode, 4“20 mA analog output, and fast 50 ms response time.4“20700ContinuousControlElectrodeIndustrialInsulatorLevelLiquidmAMeasurementmmPeekProcessSensorstainlessSteelTank
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

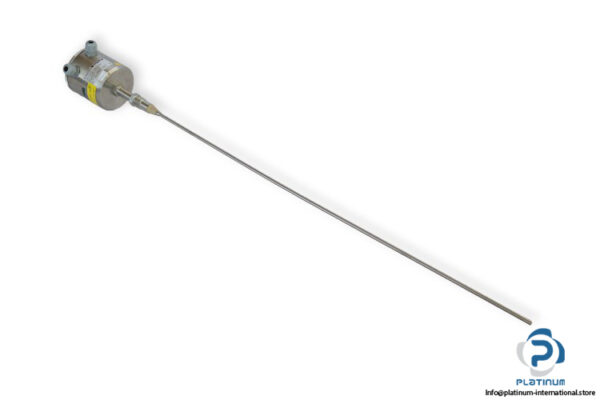

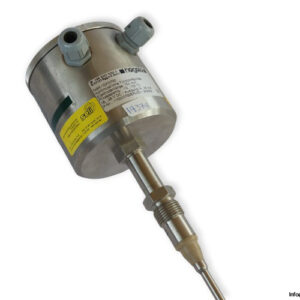

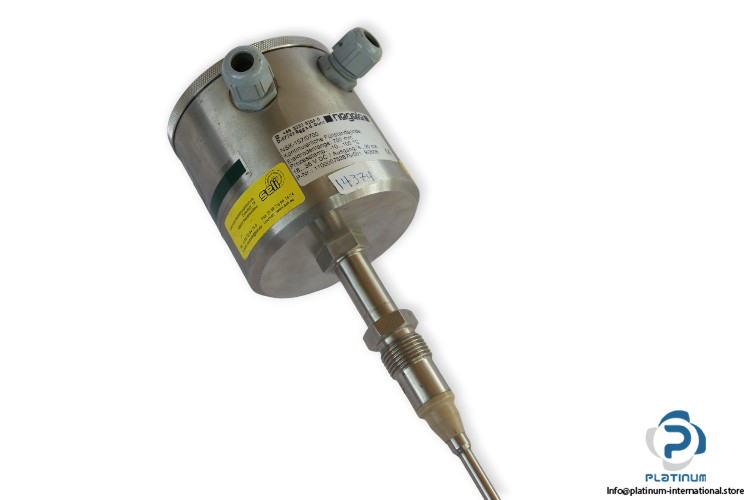

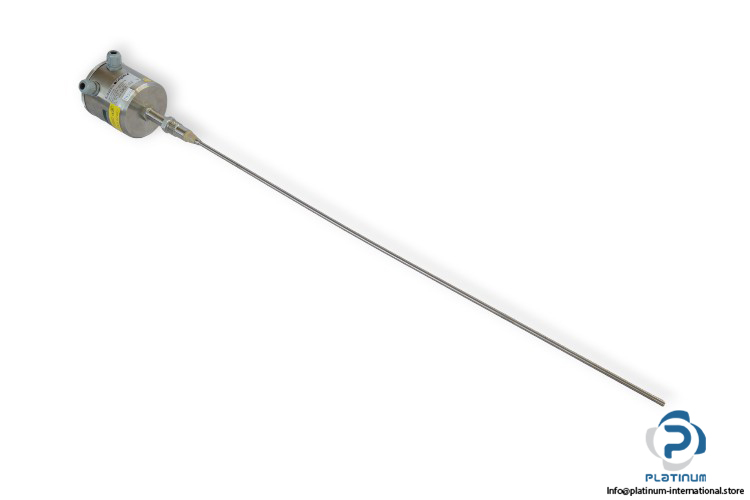

Anderson “ Negele NSK-157/0700 Continuous Level Sensor
The Anderson “ Negele NSK-157/0700 is a high-precision continuous level sensor designed for monitoring liquid levels in metallic vessels up to 3 meters in height. It offers fast response time, high accuracy, and robust construction for industrial applications.
Manufacturer: Anderson “ Negele
Type: Continuous Level Sensor
Model: NSK-157/0700

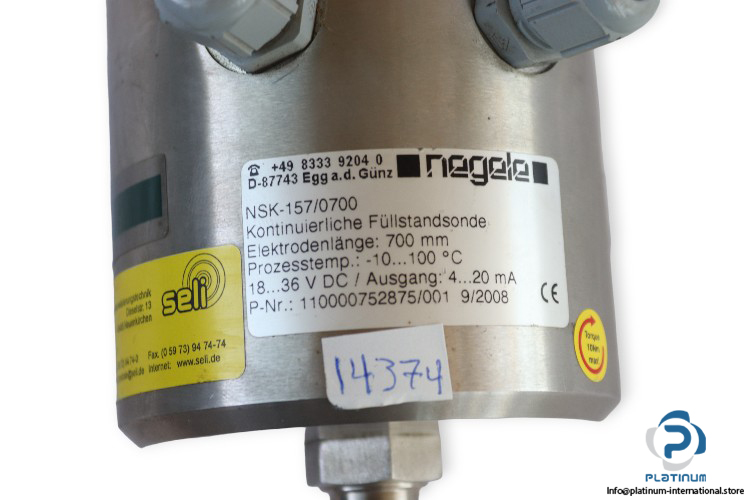

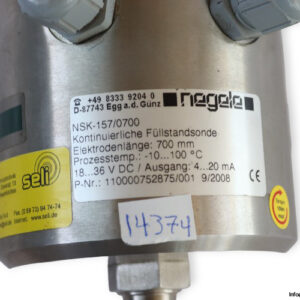

Part No.: 110000752875/001 9/2008
Technical Data:
- Application: For metallic vessels up to 3 m in height
- Process Pressure: Max. 10 bar
- Ambient Temperature: 0 / 50 °C
- Process Temperature: -10 / 100 °C
- Resolution: 1.0% of upper range value (rod length)
- Response Time: 50 ms
- Power Supply: 18 to 36 V DC

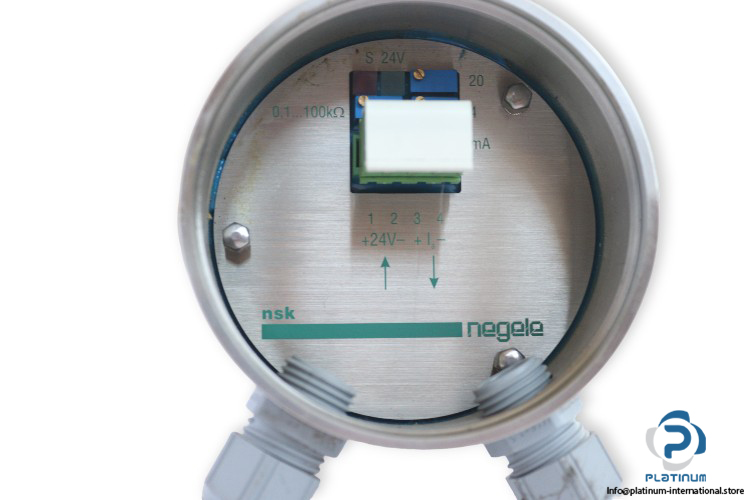

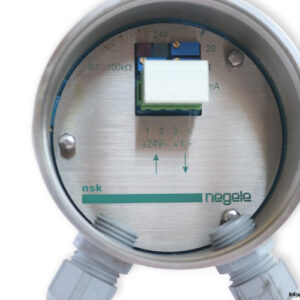

- Output Signal: Analog 4 to 20 mA, 2-wire loop
- Output Resistance: Max. 500 Ohm

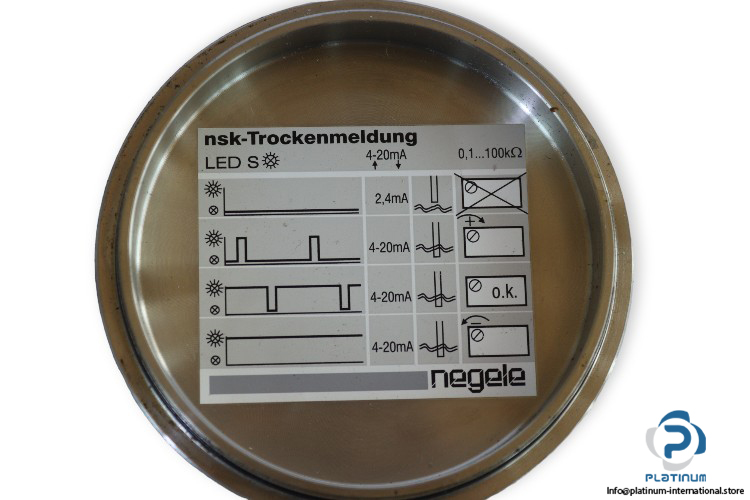

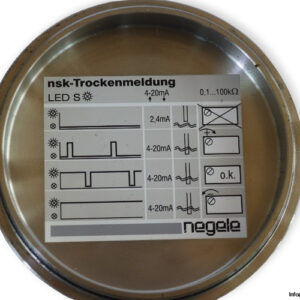

- Dry Alarm: 2.4 mA
- Electrode Length: 700 mm
- Sensor Diameter: 6 mm
- Material – Sensor: Stainless Steel
- Material – Insulator: PEEK
