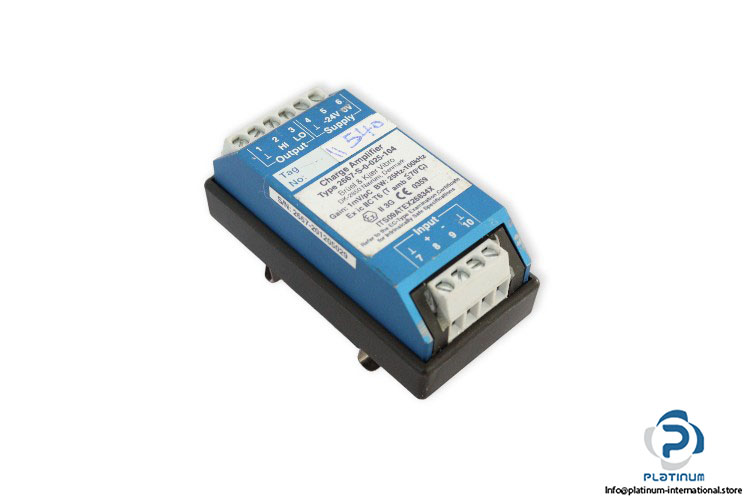

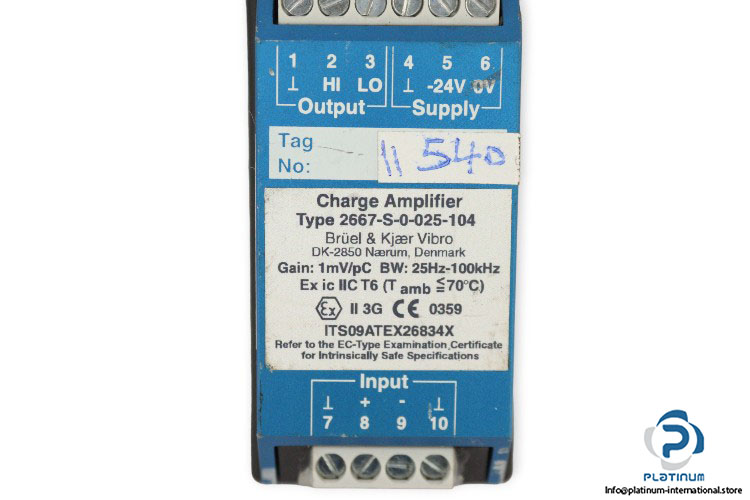

Manufacture: Brüel&Kjær Vibro
Type: Charge amplifier
Model: 2667S0025104
Part No.: ITS09ATEX26834X
Used: for connection to charge type accelerometers in areas with potential risk of explosions
Sensitivity: 1 mV/pC
Quiescent Current Consumption: < 8 mA (typically 5 mA)
Power Supply: -24 V
Filter frequency: 25 Hz … 100 kHz
Max. Input Signal: 8 nC
High-Pass Filter: 2nd order, -3 dB @ 0,48 Hz
Connections: Screw terminals
Max. wire gauge: 1,5 mm2
Min. voltage deviation: -2 … -18 V unloaded
Output Impedance: 2 x 5 ohm
DC offset voltage: -10 V
Intrinsically Safe Certification: II 3G Ex ic IIC T6 Gc (-40 °C ≤ Ta ≤ +70 °C)
Non Ex Operating temperature: -40 … +85 °C
Enclosure Protection class: IP20
Dimensions: 41 x 41 x 83 mm
