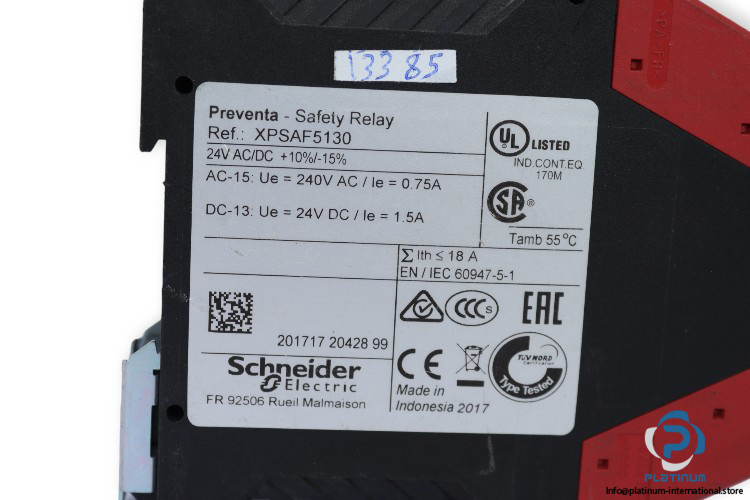

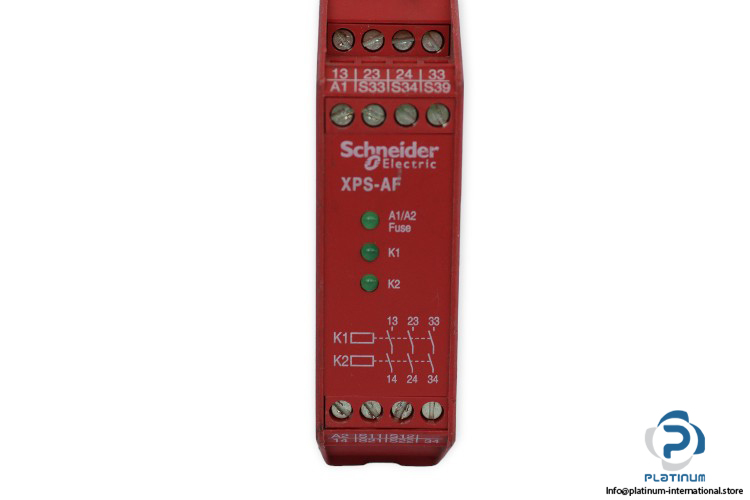

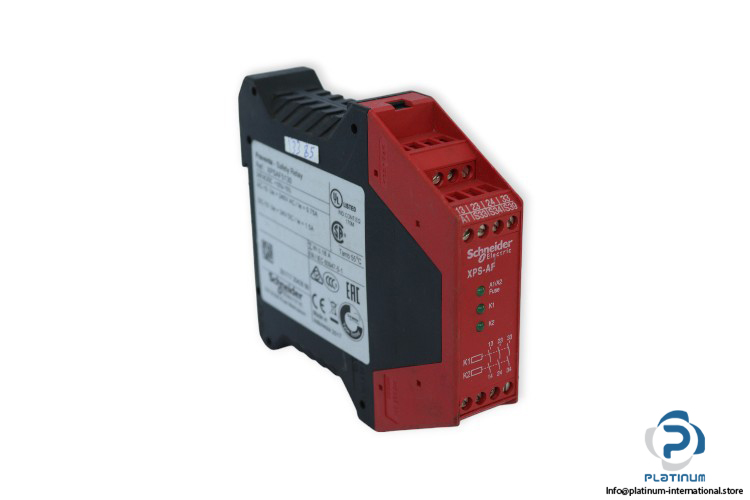

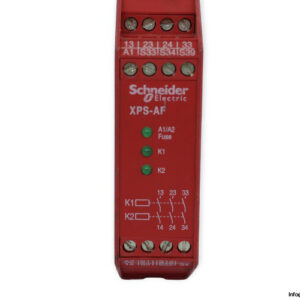

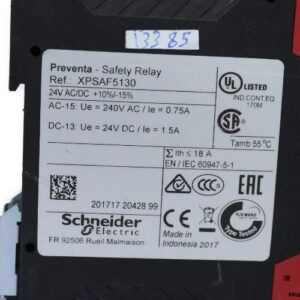

Schneider XPSAF5130 Safety Relay

Manufacturer: SCHNEIDER
Type: Safety Relay
Model: XPSAF5130

Safety Module Name: XPS-AF
Application: for Emergency Stop and Switch Monitoring
Rated Supply Voltage: 24 V AC / DC
Rated Thermal Current: 18 A
Rated Operational Ratings:
AC15: 230 V, 0.75 A
DC13: 24 V, 1.5 A
Power Consumption Max.: 5 VA
Frequency: 50 … 60 Hz
Line Resistance: 90 Ohm
Contact: 3-Pole 3 Normally Open (NO)
Protection Class: IP40
Ambient Temperature: -25 … 60 °C
Dimensions: 99 x 22.5 x 114 mm
