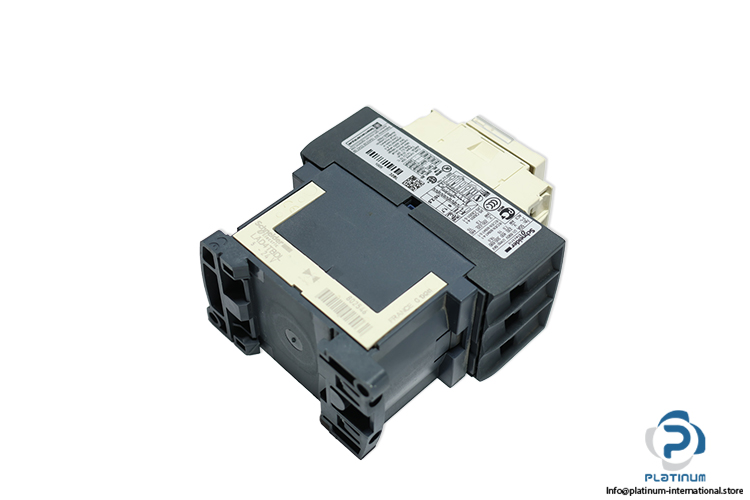

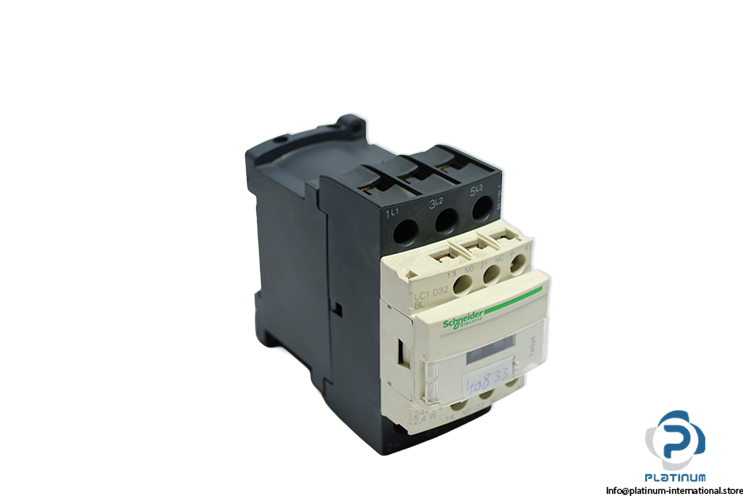

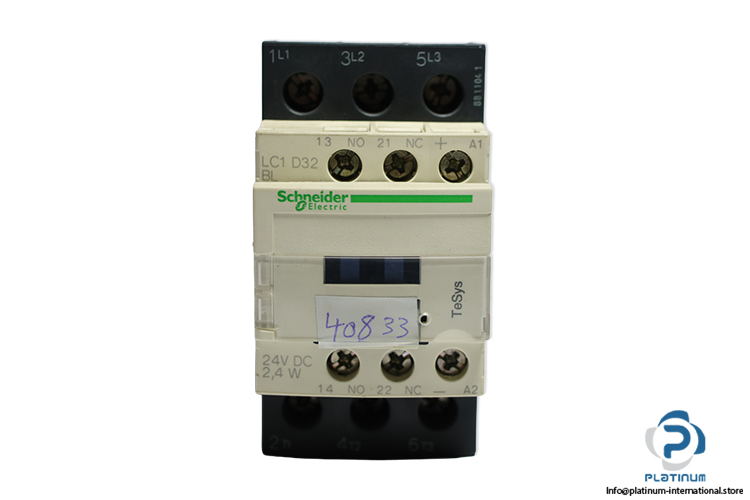

Schneider LC1D32BL Contactor
Used
In stock3 unitsReady to ship
Contactor The Schneider LC1D32BL is a 3-pole industrial contactor with a 24 V DC coil, 32 A AC-3 current, and 690 V AC rated operational voltage.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Short Name | LC1D |
| Coil Voltage | 24 V DC |
| Rated Operational Voltage | 690 V AC |
| Rated Operational Current AC-3 | 32 A |
| Rated Thermal Current | 50 A |
| Frequency | 50 … 60 Hz |
| Power AC-3 | 15 kW |
| Inrush Power | 2.4 W |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Poles No. | 3-Pole |
| Auxiliary Contact | 2-Pole 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Rated Breaking Capacity | 550 A |
| Protection Class | IP20 |
| Ambient Temperature | -40 … 60 °C |
| Dimensions | 85 x 45 x 101 mm |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1104306 |
| Weight | 0,57 |
