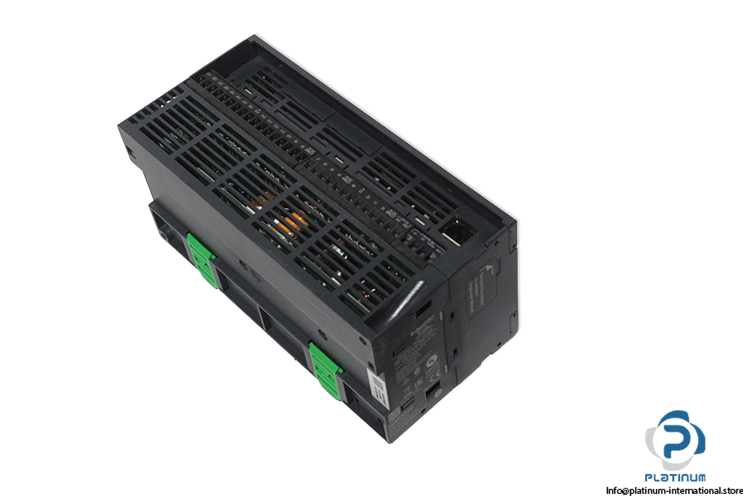

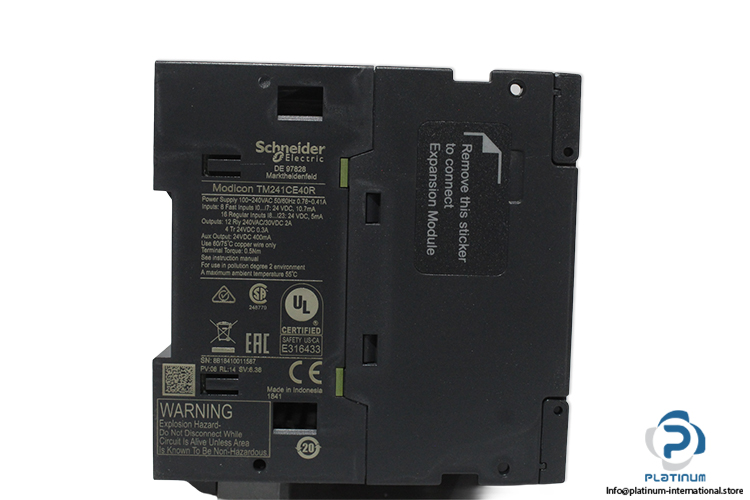

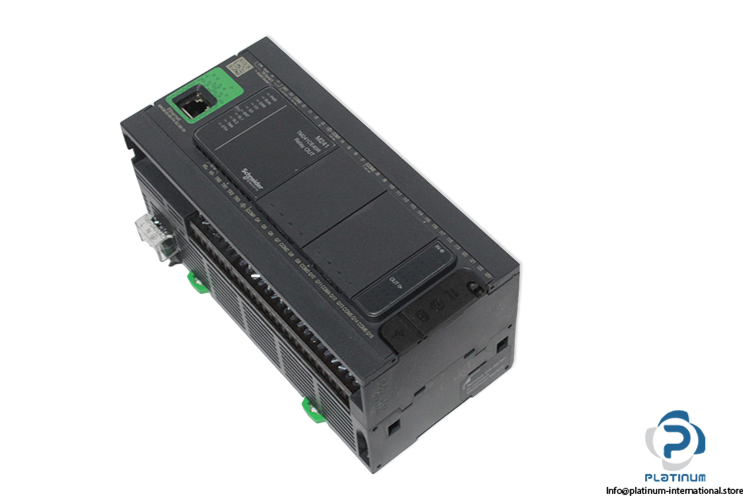

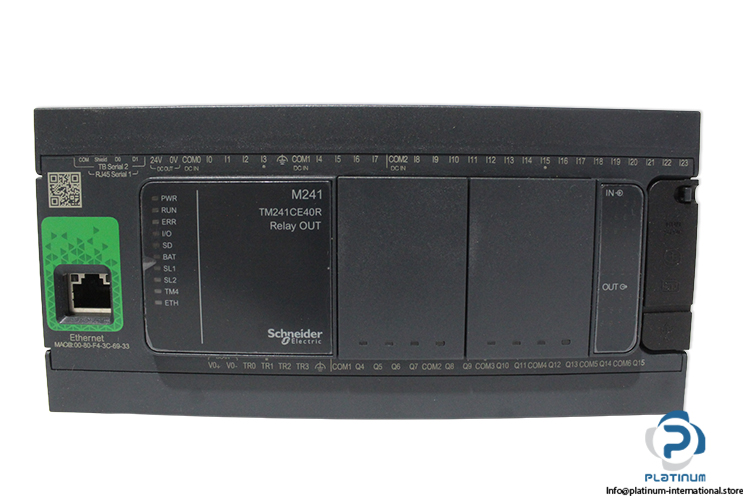

Schneider TM241CE40R Controller
New
In stock1 unitReady to ship
Logic Controller Schneider Electric TM241CE40R Modicon M241 logic controller with 40 discrete I/O, relay and transistor outputs, Ethernet and Modbus communication.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | TM241CE40R |
| ref no. | 3606480648847,064884 |
| Range of product | Modicon M241 |
| Product or component type | Logic controller |
| [Us] rated supply voltage | 100...240 V AC |
| Discrete input number | 24, discrete input 8 fast input conforming to IEC 61131-2 Type 1 |
| Discrete output type | Relay,Transistor |
| Discrete output number | 4 transistor 4 fast output,12 relay |
| Discrete output voltage | 5...125 V DC for relay output,5...250 V AC for relay output,24 V DC for transistor output |
| Discrete output current | 0.1 A for fast output (PTO mode) (TR0...TR3),2 A for relay output (Q4...Q15),0.5 A for transistor output (TR0...TR3) |
| Discrete I/O number | 40 |
| Maximum number of I/O expansion module | 7 (local I/O-Architecture),14 (remote I/O-Architecture) |
| Supply voltage limits | 85…264 V |
| Network frequency | 50/60 Hz |
| Discrete input logic | Sink or source |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15 V for input |
| Voltage state 0 guaranteed | 5 V for input |
| Discrete input current | 7 mA for input |
| Input impedance | 4.7 kOhm for input |
| Response time | 50 µs turn-on, I0...I15 terminal(s) for input |
| Configurable filtering time | 1 s for fast input |
| Output voltage limits | 125 V DC relay output,30 V DC transistor output,277 V AC relay output |
| Maximum output frequency | 1 kHz for transistor output,20 kHz for fast output (PWM mode),100 kHz for fast output (PLS mode) |
| Accuracy | +/- 0.1 % at 0.02…0.1 kHz for fast output,+/- 1 % at 0.1…1 kHz for fast output |
| Protection type | Short-circuit protection for transistor output |
| Memory capacity | 64 MB for system memory RAM |
| Data backed up | 128 MB built-in flash memory for backup of user programs |
| Data storage equipment | 16 GB SD card (optional) |
| Battery type | BR2032 lithium non-rechargeable, battery life: 4 year(s) |
| Communication port protocol | Non isolated serial link: Modbus master/slave |
| Port Ethernet | 10BASE-T/100BASE-TX - 1 port(s) copper cable |
| Height | 90 mm |
| Depth | 95 mm |
| Width | 190 mm |
| Standards | ANSI/ISA 12-12-01,CSA C22.2 No 142,CSA C22.2 No 213,IEC 61131-2:2007,Marine specification (LR, ABS, DNV, GL) |
| Stock key | CH001 |
| Condition | New |
| SKU | 1101389 |
| Weight | 0,95 |
