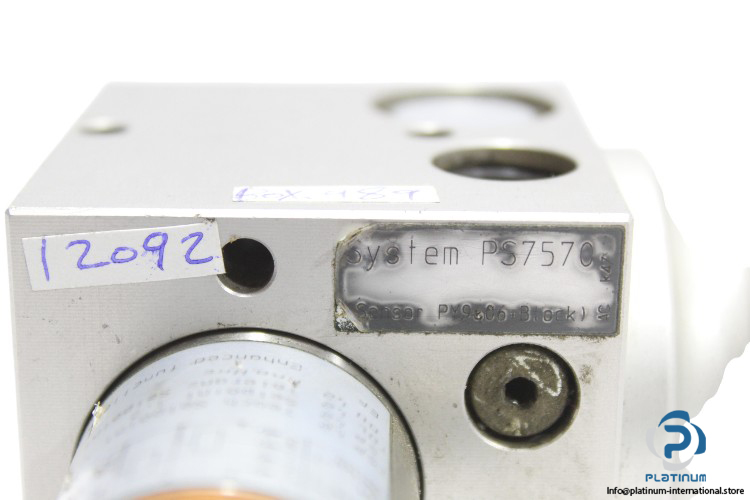

IFM PS7570 Control Unit Part Seat Monitor
CONTROL UNIT WITH PRESSURE SENSOR
IFM PS7570 Control Unit with PY9606 Pressure Sensor delivers precise air and fluid monitoring for industrial systems. With IP67 protection, configurable outputs, and high pressure capacity, it ensures reliable performance in harsh environments.IFM PS7570 CONTROL UNIT PART SEAT MONITOR WITH PY9606 PRESSURE SENSOR

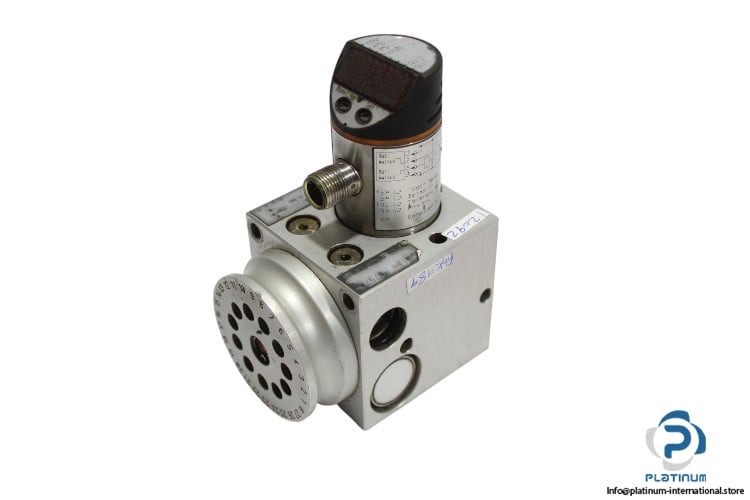

The IFM PS7570 Control Unit Part Seat Monitor, paired with the IFM PY9606 Pressure Sensor, delivers a complete solution for monitoring pressure and seat position in pneumatic and hydraulic systems. Built with robust IP67 protection and high switching precision, this setup is ideal for demanding industrial environments.
Manufacturer: IFM
Type: Control Unit Part Seat Monitor
Model: PS7570
Main Unit Technical Information

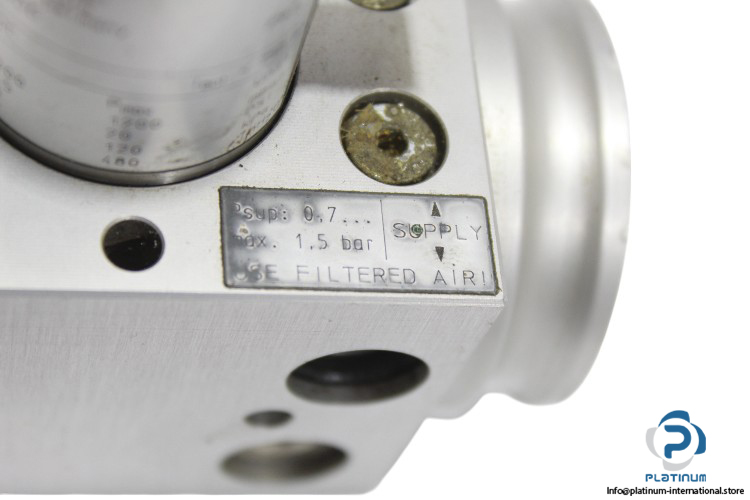

Fluid: Filtered Air
Operating Pressure Max.: 1.5 bar
Rated Voltage: 18 … 30 V DC
Rated Current Consumption: 250 mA
Output Switching Signal: 2 Normally Open (NO) + Normally Closed (NC)
Protection Class: IP67

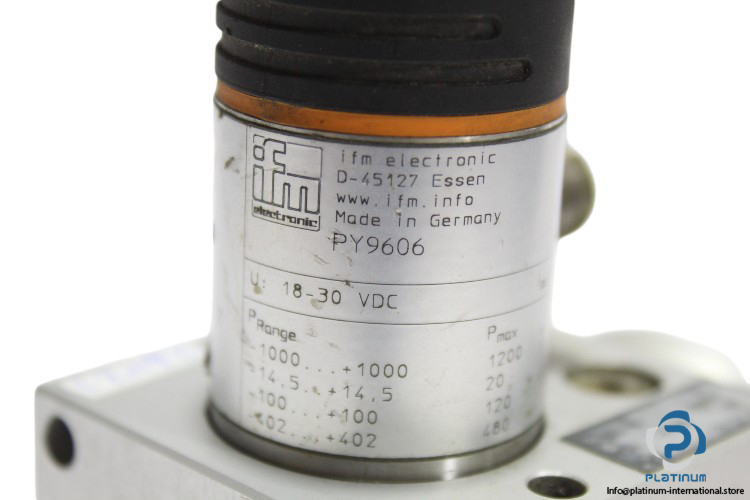

Attachment: IFM PY9606 PRESSURE SENSOR WITH DISPLAY
Manufacturer: IFM
Type: Pressure Sensor with Display
Model: PY9606
Sensor Technical Information
Fluid: Liquids and Gases
Measuring Pressure Range: 0 … 600 bar
Operating Pressure Rate: 1200 bar / 120 MPa
Operating Voltage: 20 … 30 V DC
Current Consumption Max.: 65 mA

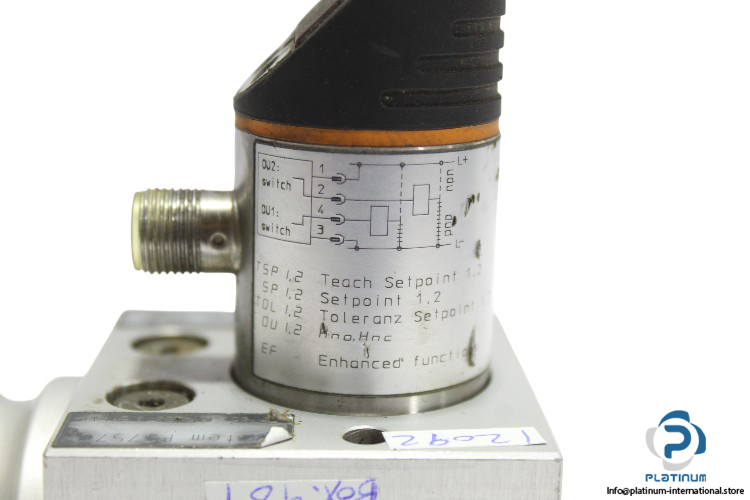

Output Switching Signal: PNP/NPN Normally Open (NO) / Normally Closed (NC) (Parameterizable)
Switching Voltage Max.: 250 V DC
Analogue Current Output: 4 … 20 mA

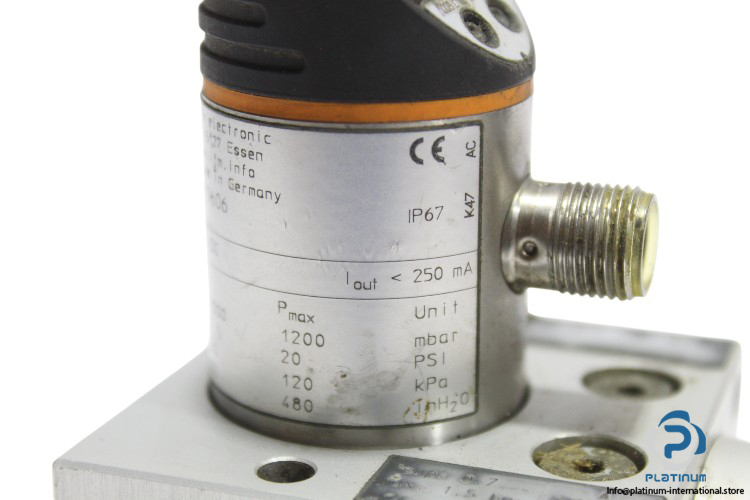

Protection Class: IP67
Ambient Temperature: -25 … 80 °C
