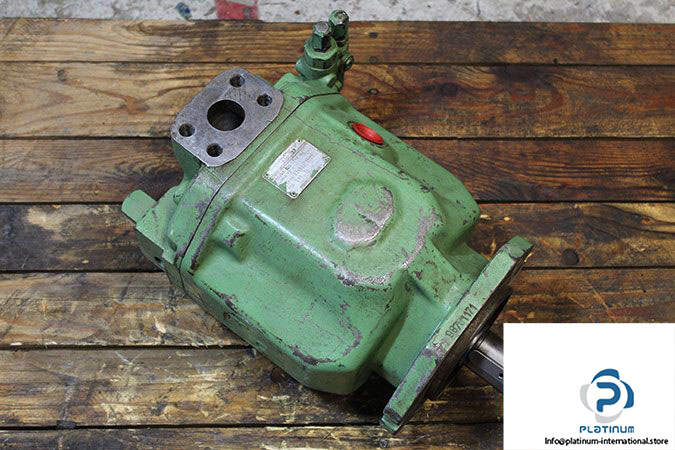

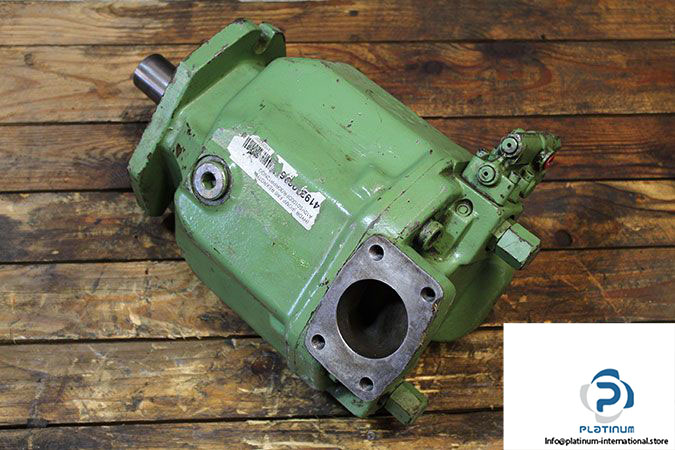

Manufacturer: Brueninghaus Hydraulik / Rexroth

Type: Axial Piston Variable Pump

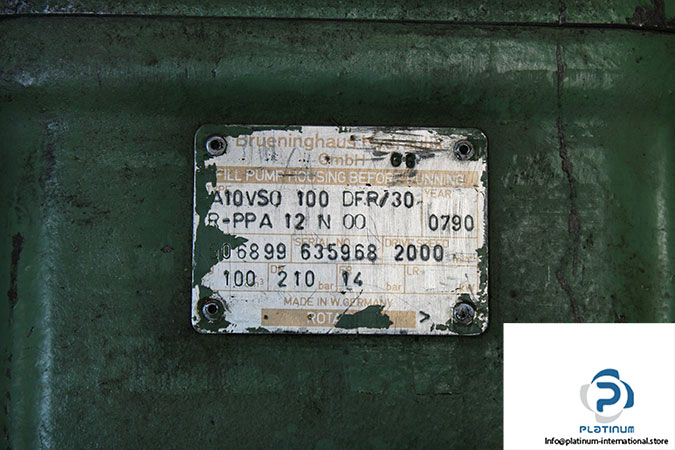

Model: A10VSO 100 DFR/30R-PPA12N00

Size: 100

Displacement: 100 cm³

Control Device: with Flow Control X-T Open

Direction of Rotation: Clockwise

Mounting Flange: ISO 3019-2 (2 holes)

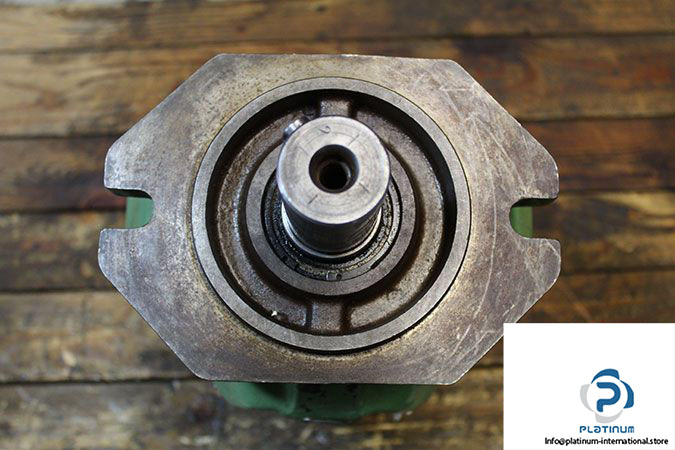

Shaft Diameter: 40 mm

Actual Speed: 2000 min^-1

Speed: 2000 …. 2400 rpm

Flow Rate at 1500 rpm: 150 l/m

Power at 280 bar, 1500 rpm: 70 KW

Torque at 280 bar: 445 N.M

Viscosity Range: 16 ….  36 mm²/s

Weight: 47 Kg
