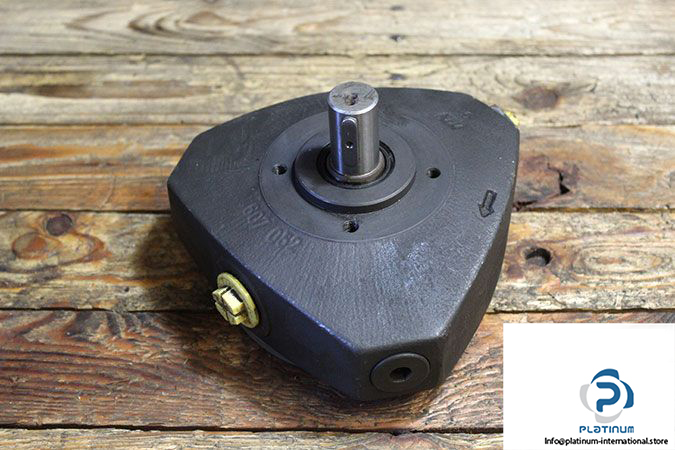

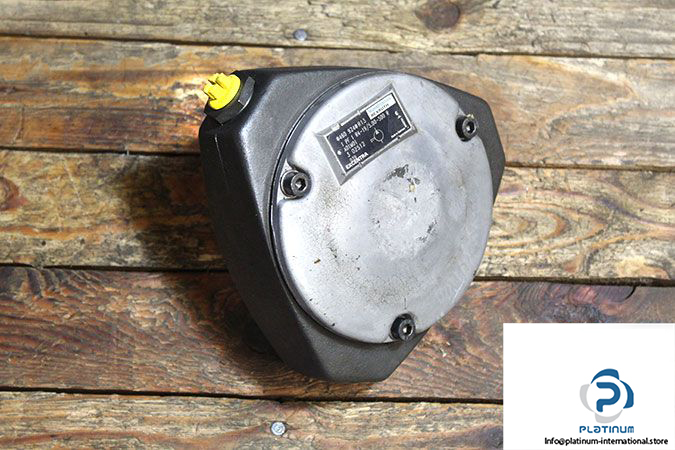

Rexroth R900460924 Fixed Displacement Radial Piston Pump
Manufacturer: Rexroth
Type: Fixed Displacement Radial Piston Pump

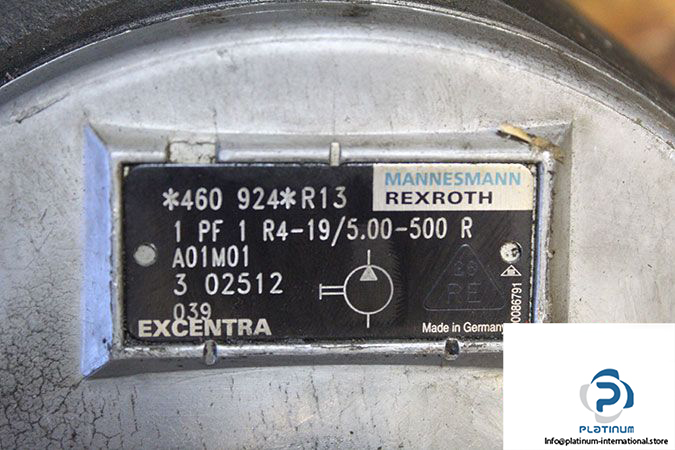

Model: 1PF1R4-19/5.00-500RA01M01
MNR: R900460924
Size: 5
Displacement: 4.82 cm3
Direction of Rotation: Clockwise
Shaft Diameter: 25 mm
Operating pressure: 500 bar
Pressure fluid temperature range: -10 … 70 °C
Speed Range: 1000 …. 2000 rpm
Flow Rate at 1450 rpm: 6.7 l/m
No. of Piston: 3
Torque at 100 bar: 160 N.m
Viscosity Range: 10 …. 200 mm2/s
Weight: 9.2 Kg
