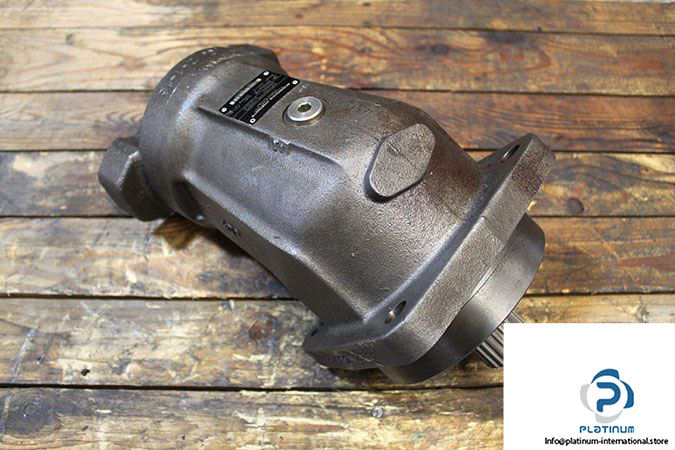

Manufacturer: BRUENINGHAUS HYDROMATIK / Rexroth
Type: Axial Piston Fixed Motor

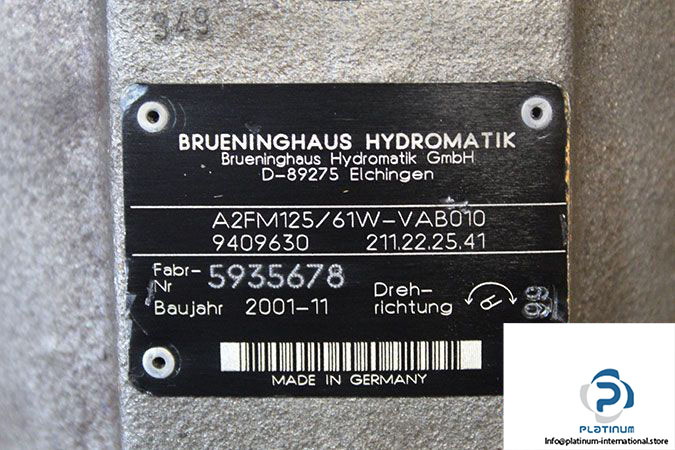

Model: A2FM125/61W-VAB010
Size: 125
Displacement: 125 cm3
Mounting Flange: ISO 3019-2 4-hole
Direction of Rotation: Viewed on drive shaft, bidirectional
Pressure Max: 450 bar
Speed: 4000 rpm

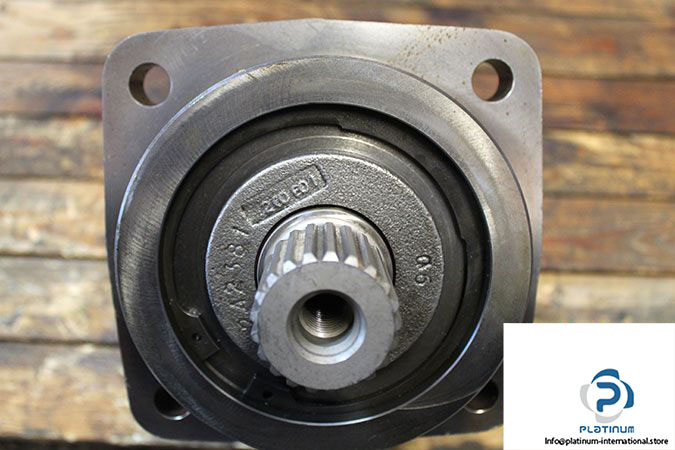

Shaft Diameter: 45 mm
No. of Teeth: 21
Flow Rate: 500 l/m
Torque at 400 bar: 796 Nm
Viscosity Range: 16 …. 36 mm2/s
Weight: 32 Kg
