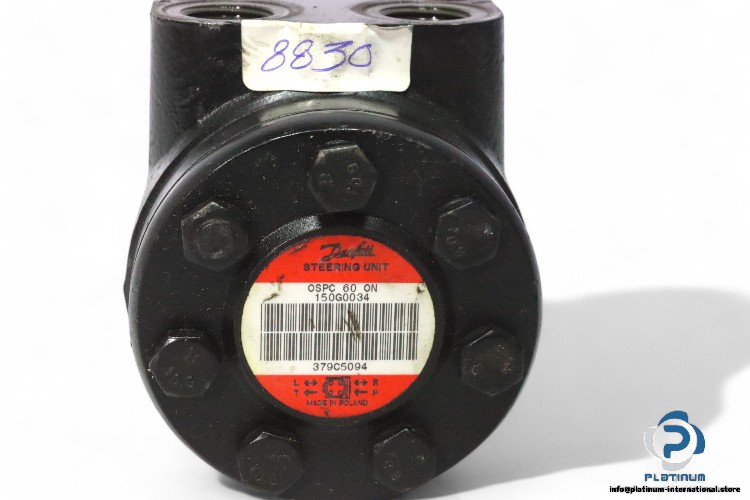

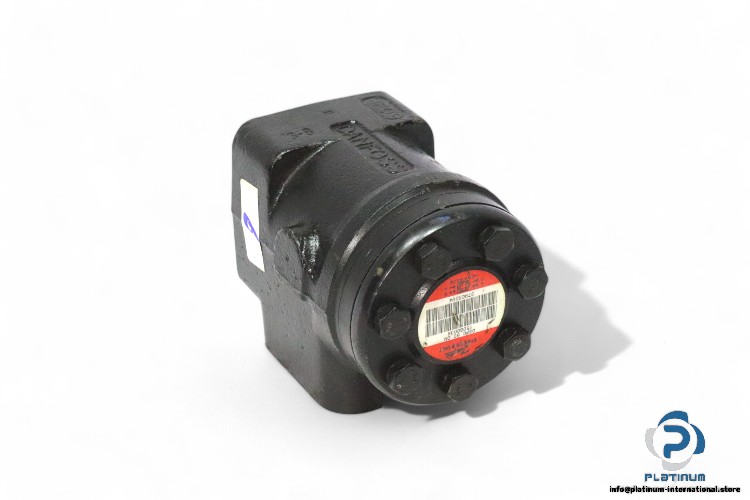

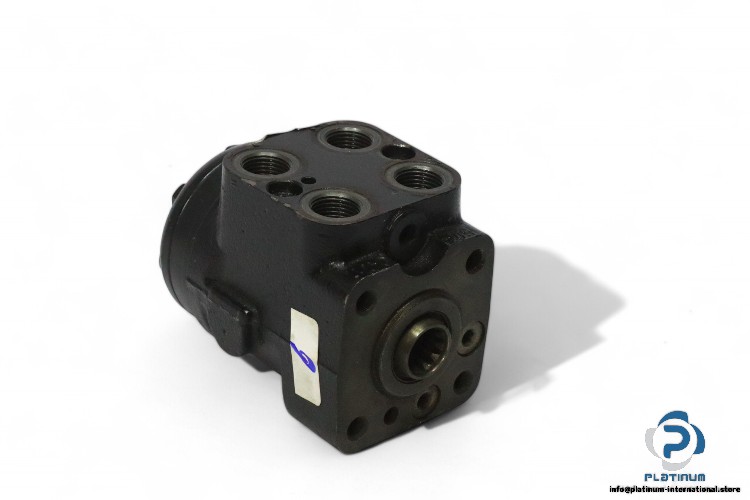

Danfoss Ospc 60 ON Hydraulic Steering Unit

DANFOSS Hydraulic Steering Unit OSPC60ON

The DANFOSS OSPC60ON Hydraulic Steering Unit is engineered for precise and efficient steering control in demanding hydraulic systems. Its robust construction and advanced features make it ideal for a wide range of applications in heavy machinery and vehicles.

Technical Specifications:

• Manufacturer: DANFOSS
• Type: Hydraulic Steering Unit
• Model: OSPC60ON
• Part No.: 150G0034
• Ref No.: 379C5094
• No. of Teeth: 12
• Displacement: 60 cm³/rev
• System Pressure (P-T Port): 140 bar
• High Back Pressure: Up to 40 bar
• Oil Viscosity Range: 10 mm²/s to 1000 mm²/s
• Recommended Oil Viscosity: 12 mm²/s to 80 mm²/s
• Maximum Temperature Difference: 10°C
• Normal Steering Torque: 0.8 Nm to 3.0 Nm
• Maximum Manual Steering Torque: 120 Nm
• Maximum Momentary Load Steering Torque: 240 Nm
• Ambient Temperature Range: -30°C to 60°C

With its precise steering capability and compatibility with diverse hydraulic systems, the DANFOSS OSPC60ON offers outstanding performance and reliability under challenging conditions.
