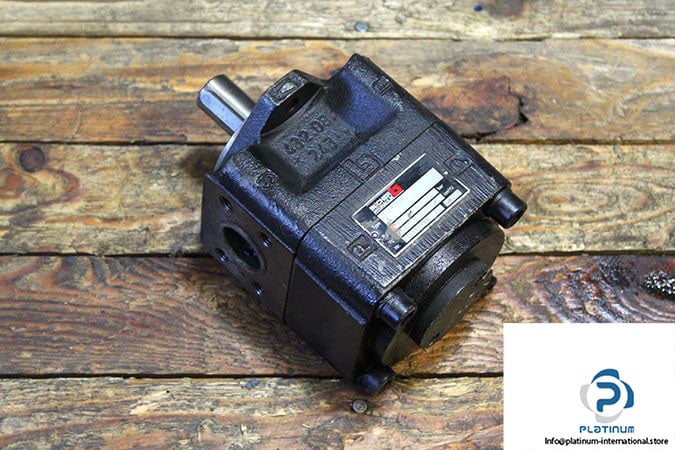

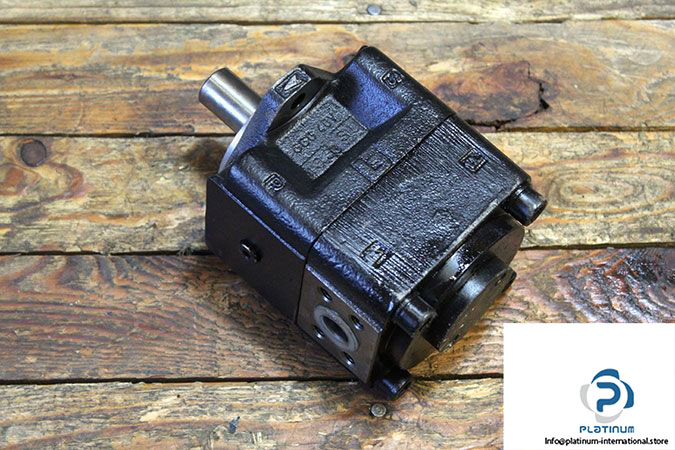

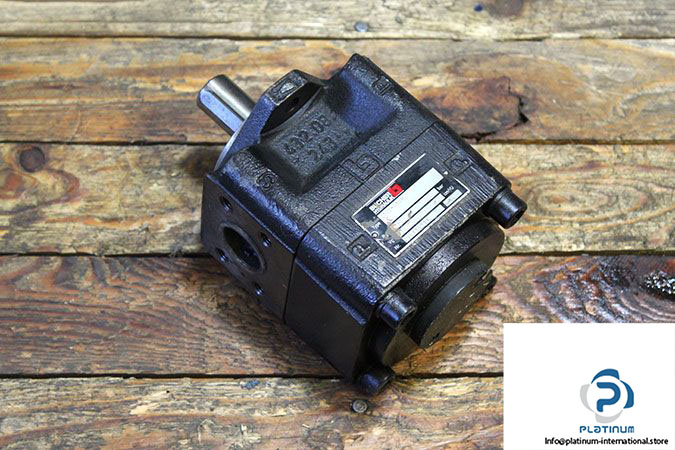

Bucher QT32-010R Internal Gear Pump

The Bucher QT32-010R is a precision-engineered internal gear pump designed for hydraulic applications requiring efficiency and reliability. With a displacement of 10 cm³, high torque, and wide operating speed range, it ensures optimal performance under demanding industrial conditions.

Manufacturer: Bucher
Type: Internal Gear Pump
Model: QT32-010R

Technical information

• Size: 10
• Displacement: 10 cm³
• Output Flow at 1500 rpm: 14.5 l/min
• Nominal Pressure: 180 bar

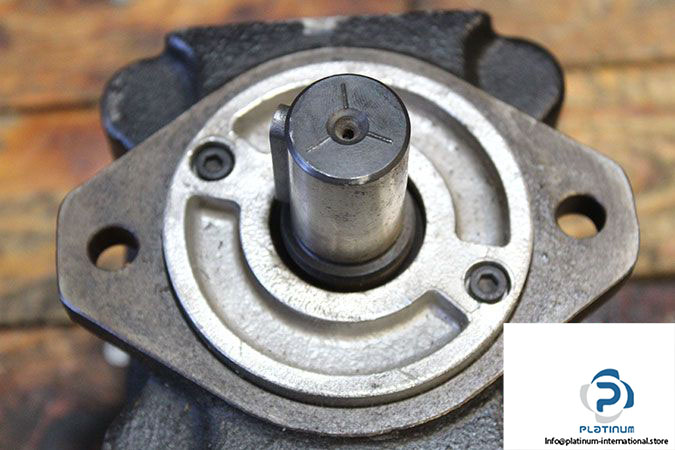

• Shaft Diameter: 25 mm
• Input Power at 1500 rpm: 5.1 kW
• Minimum Speed: 1400 min»¹
• Maximum Speed: 3400 min»¹
• Torque: 34 Nm
• Viscosity Range: 10 / 100 mm²/s
