Kracht KP 1/14 M10A K0A 4NL2/418 Hydraulic Gear Pump
New
In stock5 unitsReady to ship
Hydraulic Gear Pump
The KRACHT KP 1/14 M10A K0A 4NL2/418 Hydraulic Gear Pump is built for high-pressure applications with mineral and engine oils. Featuring **300 bar pressure max**, **aluminium housing**, and a **media temperature range of -20 to 150 °C**, it is designed for durability and reliable performance.1/14150203004NL2/418AluminiumbarCCapacityclockwiseconnectionEngineFKMGearHydraulicK0AKPKrachtLoadM10AMediaMineraloilPneumaticPressurepumprotationSealshaftTemperatureto
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

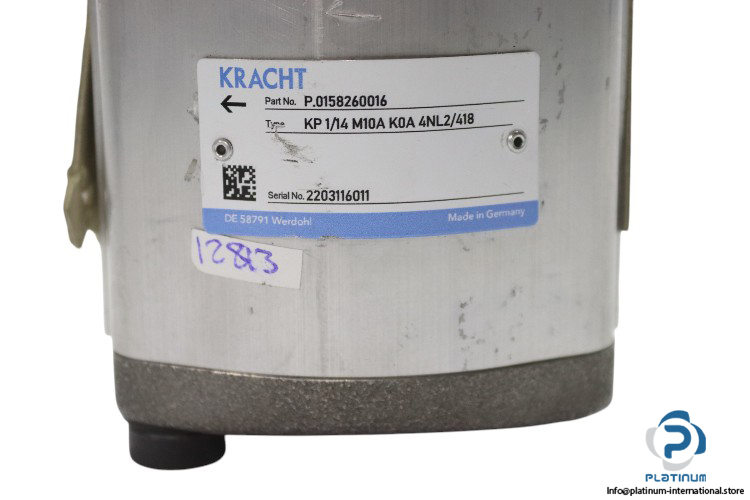

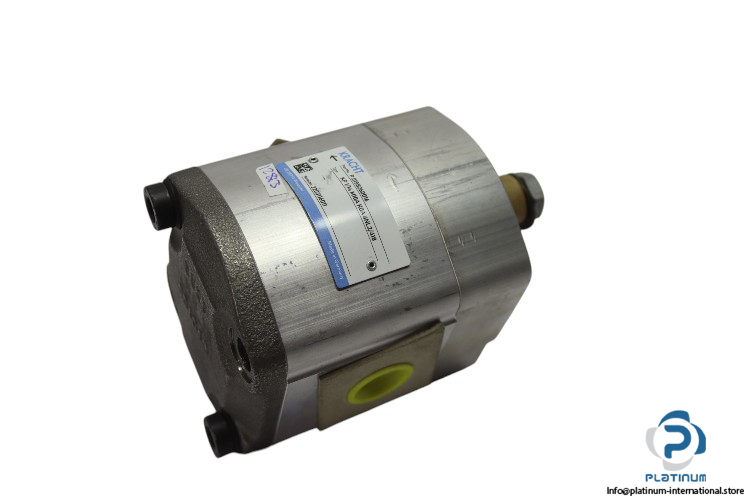

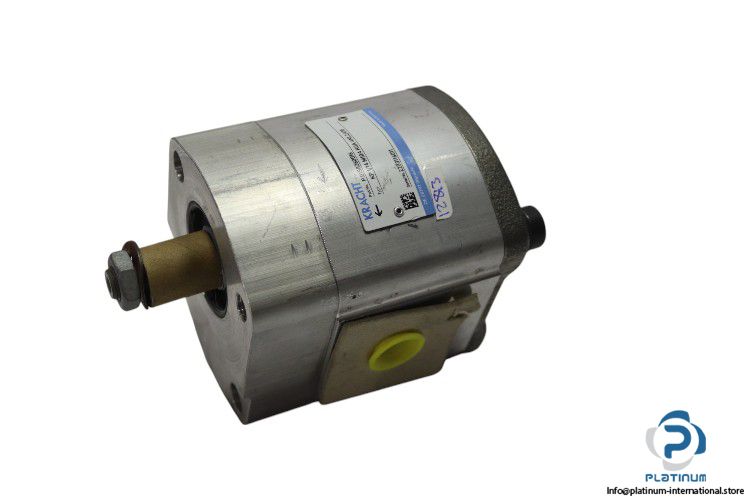

KRACHT KP 1/14 M10A K0A 4NL2/418 Hydraulic Gear Pump
The KRACHT KP1/14M10AK0A4NL2/418 Hydraulic Gear Pump is designed for high-performance fluid handling. Ideal for use with mineral and engine oils, this pump is engineered to operate under high pressure with a maximum rating of 300 bar. Built with durable aluminium housing and FKM seals, it offers reliable operation in challenging environments.
Manufacturer: KRACHT
Type: Hydraulic Gear Pump
Model: KP 1/14 M10A K0A 4NL2/418
Part No.: P.0158260016
| Size | 1 |
| Fluid | Mineral Oil / Engine Oil |
| Pressure Max. | 300 bar |

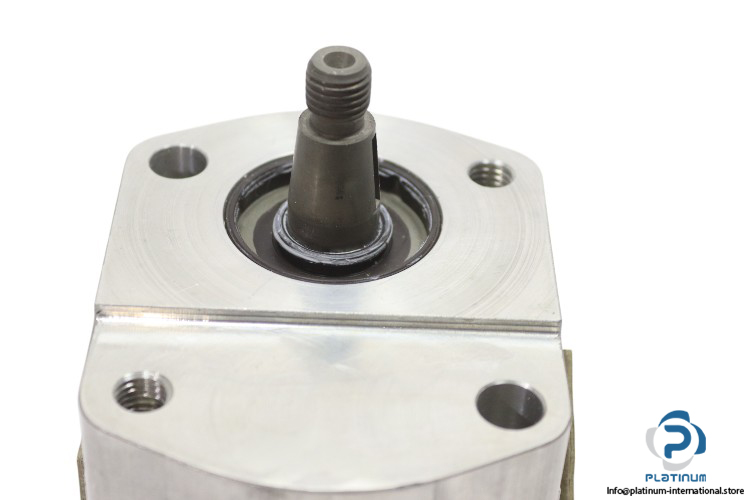

| Shaft End | Taper 1:5 |
| Shaft Load Capacity Max. | 160 Nm |
| Rotation Direction | Clockwise |
| Shaft Length, Diameter | 40.5, 12 mm |
| Material | Aluminium |
| Seal | FKM |
| Pneumatic Connection | 15.13 mm |
| Media Temperature | -20 / 150 °C |
