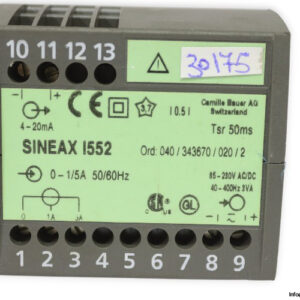

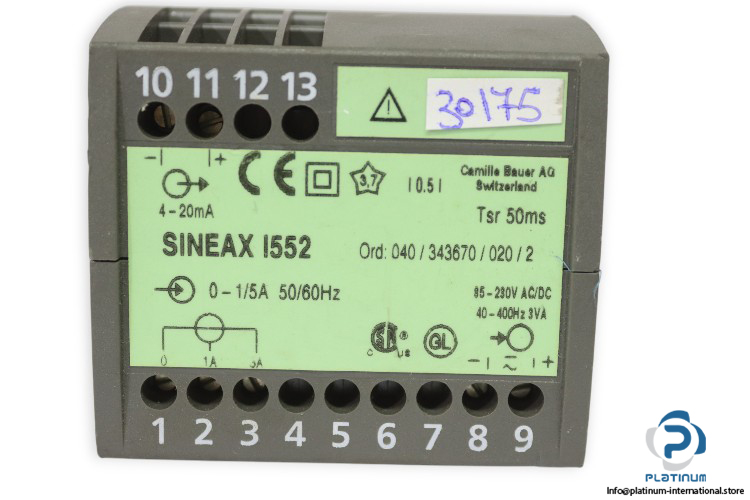

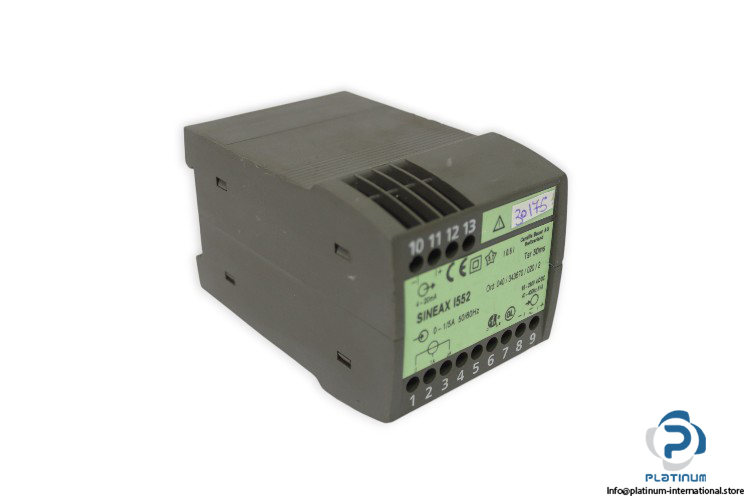

CAMILLE BAUER SINEAX I552 Transducer for AC Current
The CAMILLE BAUER SINEAX I552 is a precision transducer designed for AC current measurement. Engineered for industrial reliability, it offers accurate output signals and flexible mounting, making it suitable for a wide range of electrical monitoring applications.
Manufacturer: CAMILLE BAUER
Type: Transducer for AC Current
Model: SINEAX I552
ORD NO.: 040/343670/020/2
Technical Information
- Supply Voltage: 85 “ 230 V AC
- Power Consumption: approx. 3 VA
- Frequency: 40 “ 400 Hz
- Measuring Range: 0 “ 1/5 A
- Output Signal: 4 / 20 mA
- Nominal Frequency (fN): 50/60 Hz
- Protection Degree: IP40 housing / IP20 terminals
- Contamination Level: 2
- Mounting: For rail mounting
- Operating Temperature: -10 / +55 °C
