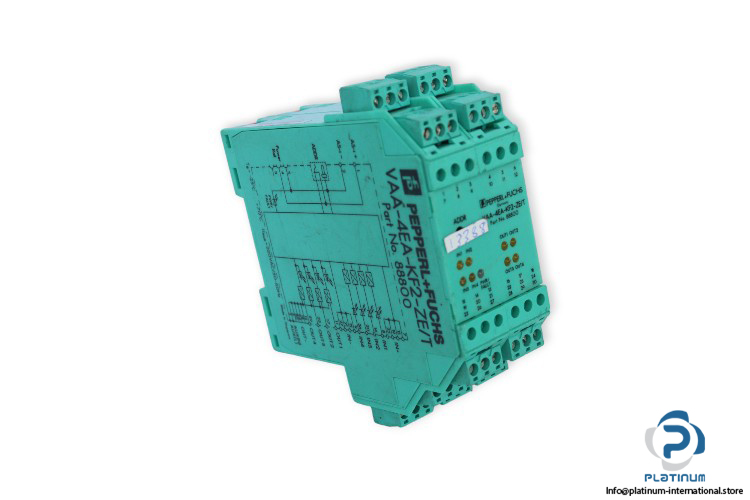

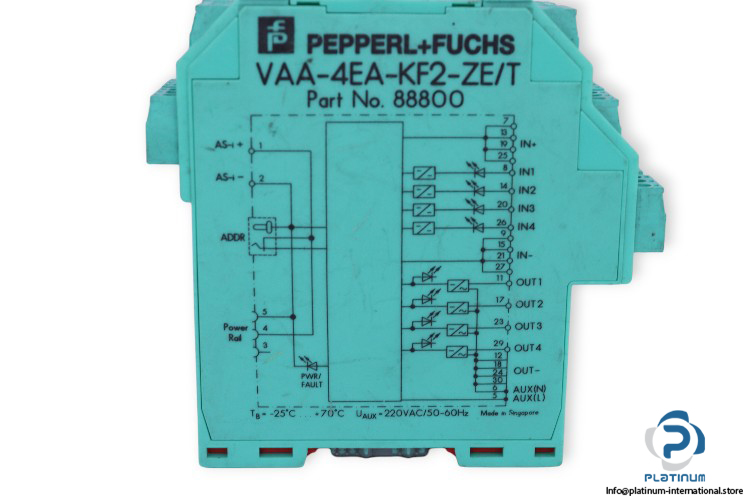

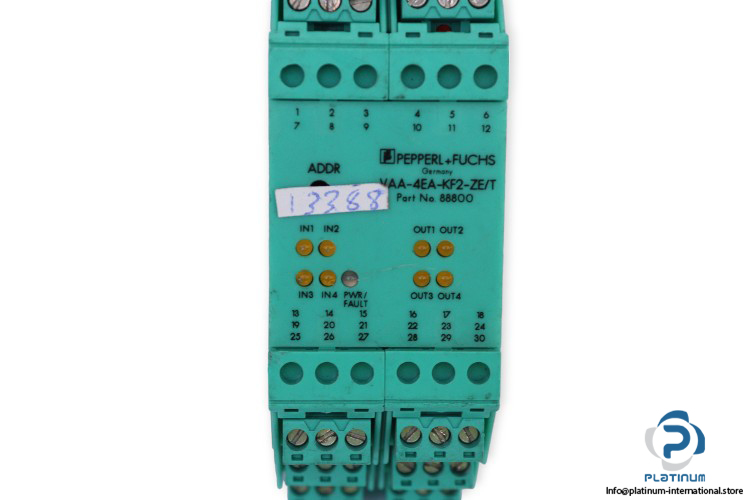

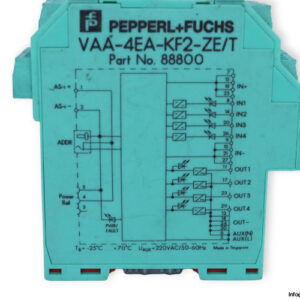

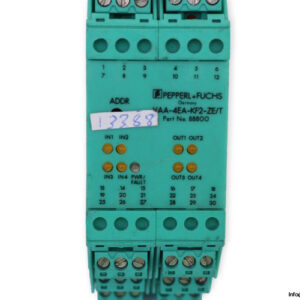

Pepperl+Fuchs VAA-4EA-KF2-ZE/T AS-Interface Sensor / Actuator Module
Used
In stock7 unitsReady to ship
Manufacturer:
PEPPERL+FUCHS
Type:
AS-Interface Sensor/Actuator Module
Model:
VAA-4EA-KF2-ZE/T
Part No.:
88800
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: PEPPERL+FUCHS
Type: AS-Interface Sensor/Actuator Module
Model: VAA4EAKF2ZET
Part No.: 88800
Rated Auxiliary Voltage Max: 220 V AC
Rated Operational Voltage: 26.5 … 31.6 V DC
Rated Operational Current Max.: 200 mA
Frequency: 50 … 60 Hz
Input: 4-Inputs, 2 or 3 Sensors, PNP, 21 … 31 V DC, 150 mA
Output: 4-Electronic Outputs, PNP, 2/8 A
Protection Class: IP20
Ambient Temperature: -25 … 70 °C
Dimensions: 118 x 40 x 114 mm
