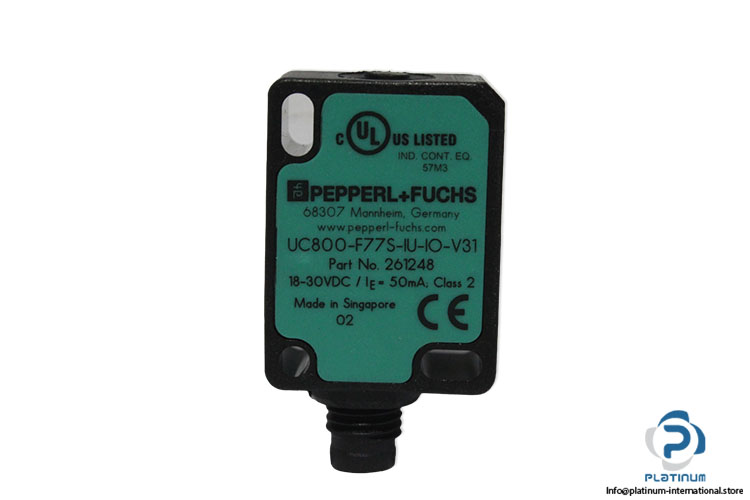

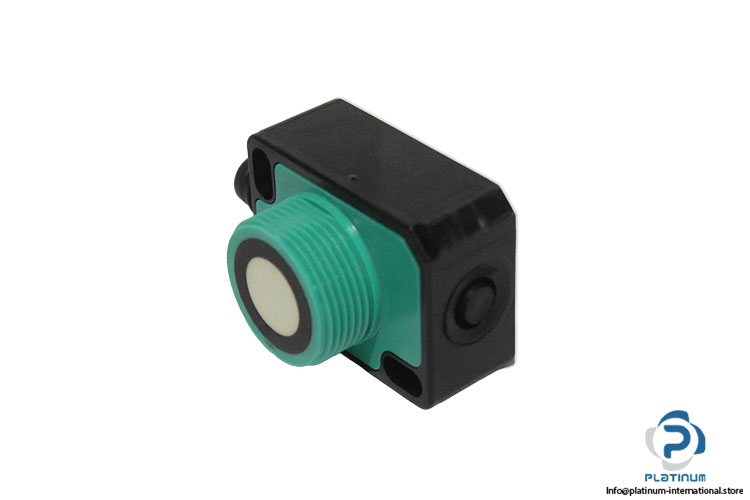

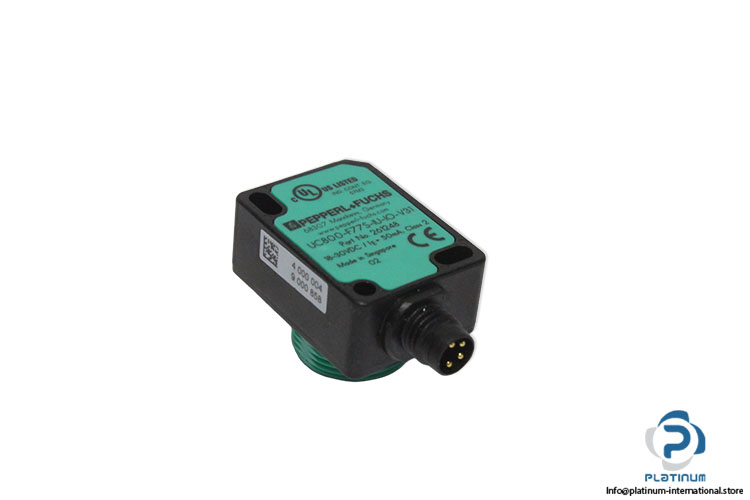

Pepperl+Fuchs UC800-F77S-IU-IO-V31 Ultrasonic Sensor
New
In stock1 unitReady to ship
389,99$
Ultrasonic sensor The PEPPERL+FUCHS UC800-F77S-IU-IO-V31 is 18–30 V DC operation, and IP67 protection for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

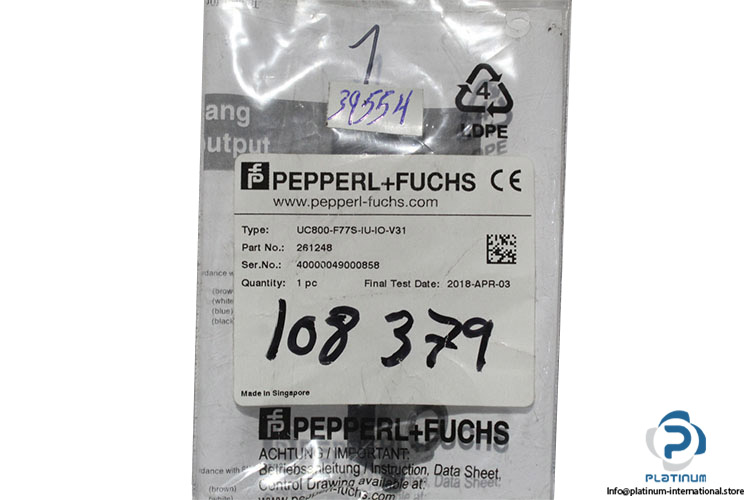

| Part No. | 261248 |
| Ser.No . | 40000049000858 |
| Sensing range | 60 ... 800 mm |
| Adjustment range | 70 ... 800 mm |
| Dead band | 0 ... 60 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 255 kHz |
| Response delay | minimum : 13 ms,factory setting: 49 ms |
| Sensor cycle time | 13 ms (factory setting) ;programmable to 60 s |
| Non-volatile memory | EEPROM |
| Write cycles | 300000 |
| LED green, solid | power on flashing: standby mode or IO-Link communication |
| LED yellow , solid | object in evaluation range flashing: programming of the limits, object detected |
| LED red , solid | fault flashing: programming limits, object not detected |
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS |
| No-load supply current | 50 mA |
| Power consumption | 500 mW |
| Time delay before availability | 300 ms |
| Interface type | IO-Link (available after activation via programming button until next reset) |
| Input/output type | 1 synchronization connection, bidirectional |
| 0 Level | 0 ... 1 V |
| 1 Level | 2.5 V ... UB |
| Input impedance | 22 kO |
| Output current | current source < 2.5 mA |
| Pulse length | 1 ms with external control, low active |
| Common mode operation | 82 Hz |
| Multiplex operation | 82 Hz / n , n = number of sensors , n = 10 |
| Output type , | 1 analog output 0 (4) ... 20 mA or 1 analog output 0 ... 10 V |
| Resolution | current output: evaluation range [mm]/3200 but = 0.35 mm voltage output: evaluation range [mm]/4000 but = 0.35 mm |
| Deviation of the characteristic curve | ± 1 % of full-scale value |
| Repeat accuracy | ± 0.1 % of full-scale value |
| Load impedance | current output: = 500 Ohm |
| voltage output | = 1000 Ohm |
| Standards | EN IEC 60947-5-2:2020,IEC 60947-5-2:2019,EN 60947-5-7:2003,IEC 60947-5-7:2003,IEC 61131-9:2013 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated =36 V |
| Ambient temperature | current output -25 ... 60 °C |

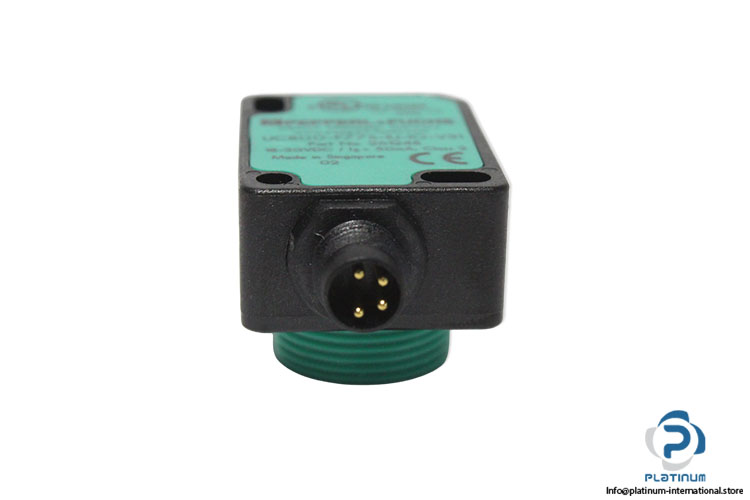

| Connection type | Connector plug M8 x 1 , 4-pin |
| Degree of protection | IP67 |
| Housing Material | Polycarbonate |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Height | 31 mm |
| Width | 21 mm |
| Length | 23 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100971 |
| Weight | 0,02 |
