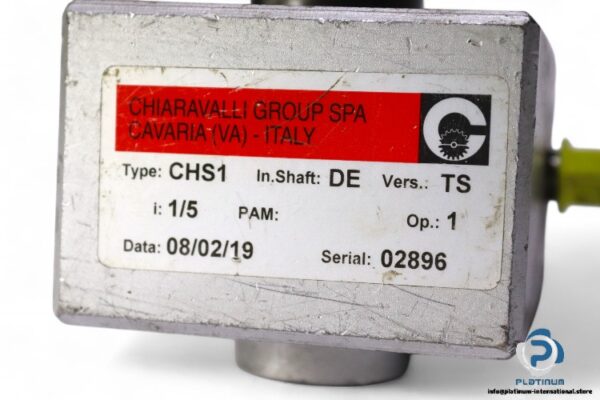

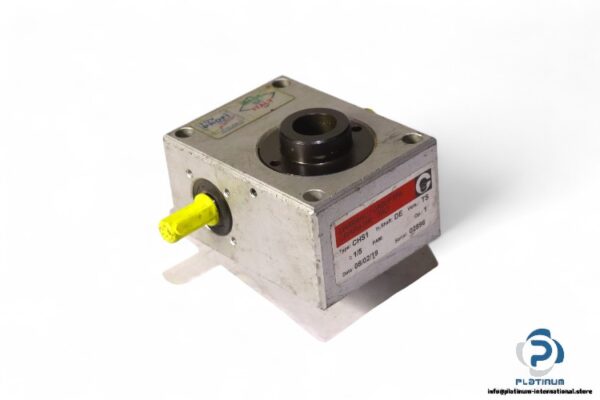

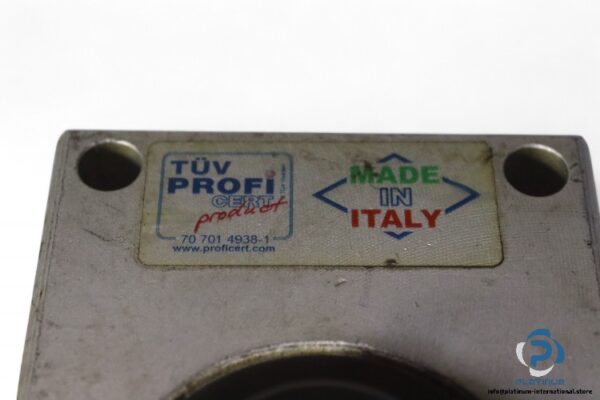

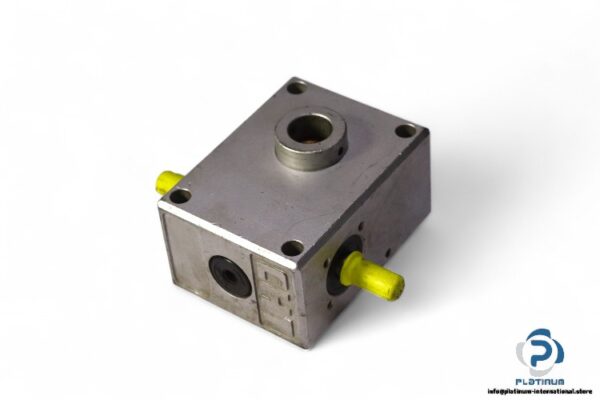

CHIARAVALLI CHS1 SCREW JACK
The CHIARAVALLI CHS1 Screw Jack is designed for efficient lifting and load movement, offering high reliability and performance. With a load capacity of 500 kg and gear ratios of 5:1 and 20:1 for fast and normal speeds, this screw jack provides precise control and is built to operate in various industrial conditions.
Manufacturer: CHIARAVALLI
Type: SCREW JACK
Model: CHS1
Technical Specifications
- LOAD daN: 500 Kg
- Tpn Screw Diameter: 18 mm
- Pitch: 4 mm
- Gear Ratios:
- Fast Speed: 5:1
- Normal Speed: 20:1
- Stroke For INPUT REV:
- Fast Speed: 0.80
- Normal Speed: 0.20
- Efficiency:
- Fast Speed: 25.5 %
- Normal Speed: 23.8 %
- Case Material: G25
- Grease Type: Agip Gr Mu Ep2
- Operating Temperature: -5 to 80° C
