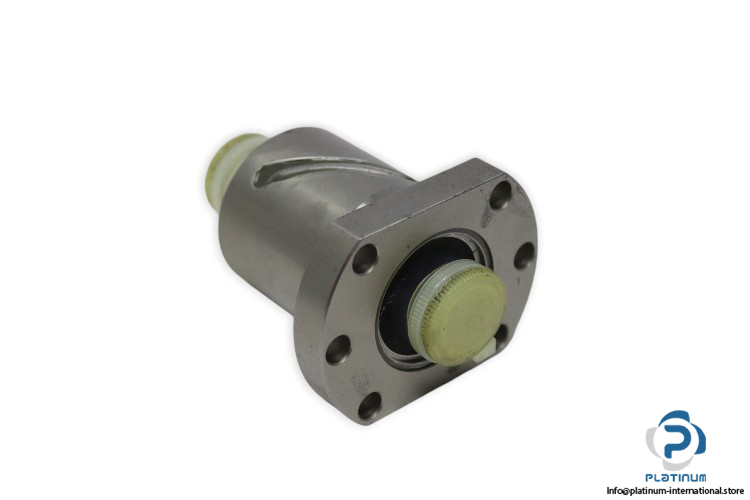

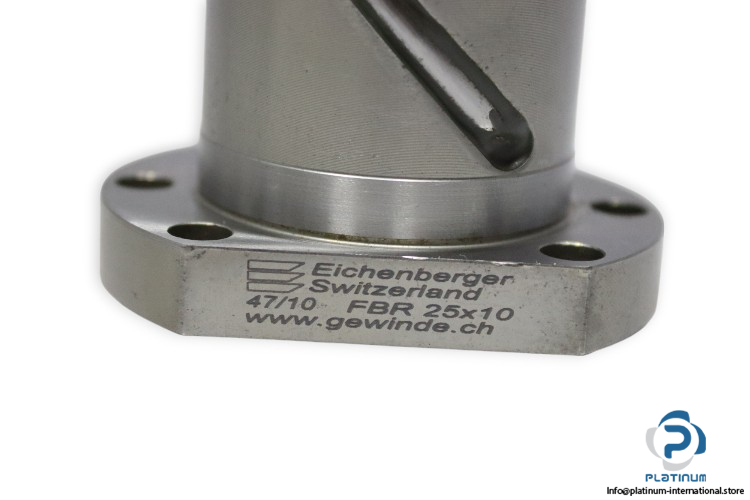

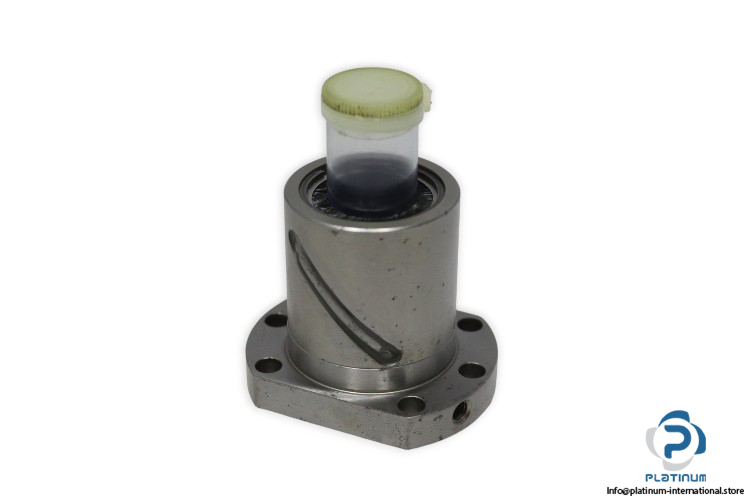

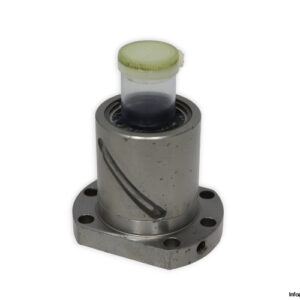

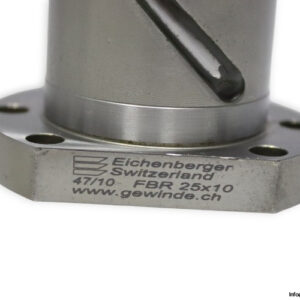

Eichenberger FBR 2510 Flanged NUT Ball Screw

Manufacturer: EICHENBERGER
Type: FLANGED NUT BALL SCREW
Model: FBR-2510

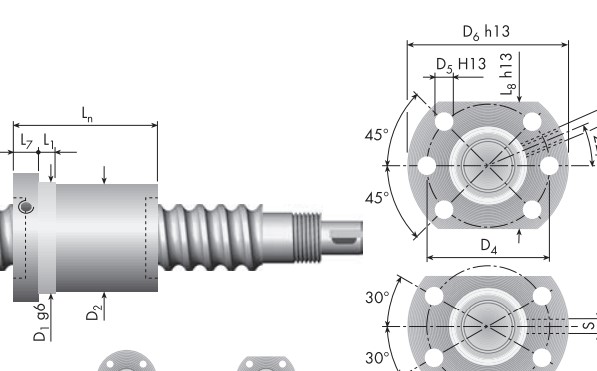

Nominal size(d0xp): 25×10 mm
Nominal screw diameter d0: 25 mm
Lead p: 10 mm
Outside screw diameter d1: 24.8 mm
Nut Diameter D1: 43 mm
Hole circle Diameter D4: 55 mm
Shape: FB, Flange nut type
Ball return system: R, tube ball return type
Direction of Lead: Right-Hand Threads
Load rates:
Dynamic: 21000 N
Static: 54000 N
Lubrication Hole S: M6
Wiper: B, Brushes
