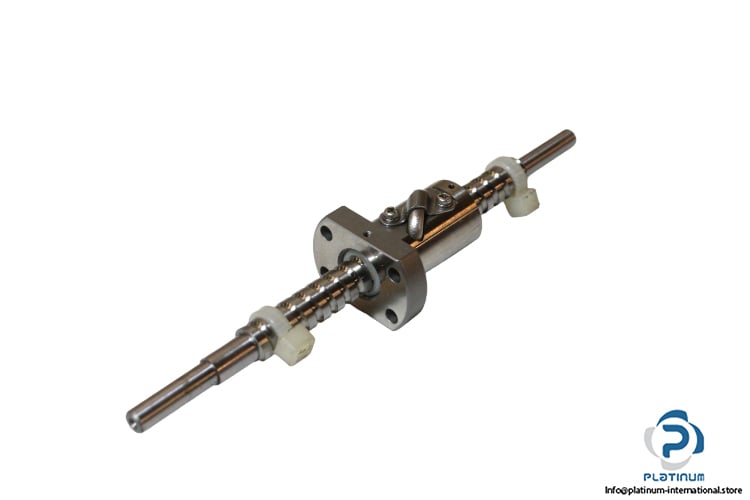

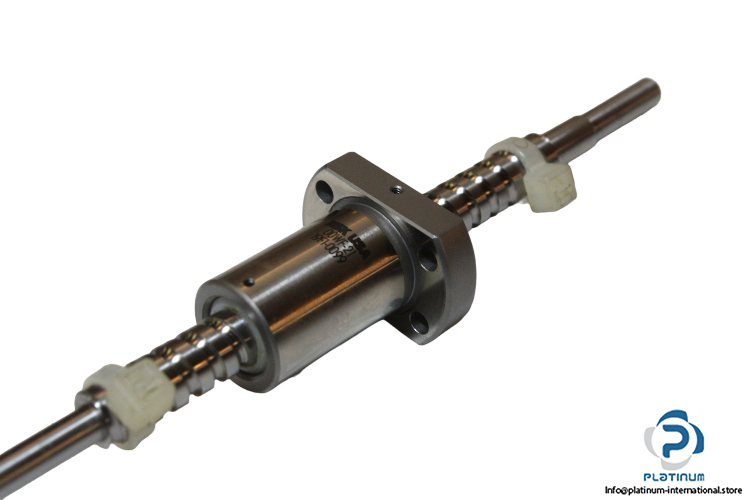

NSK 00WF-21 Ball Screw

Manufacturer: NSK

Type: External recirculation ball screw

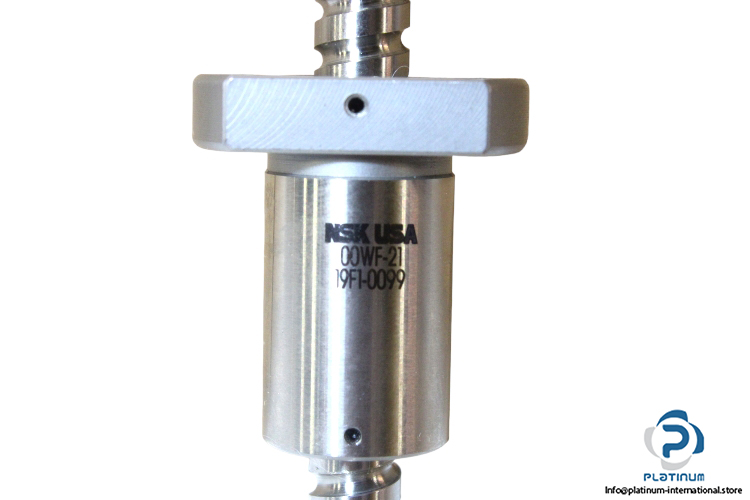

Model: 00WF-21 (19F1-0099)

Size: 8 x 4 R

Nominal Diameter: 8 mm

Lead l: 4 mm

Direction of Lead: Right-Hand Thread

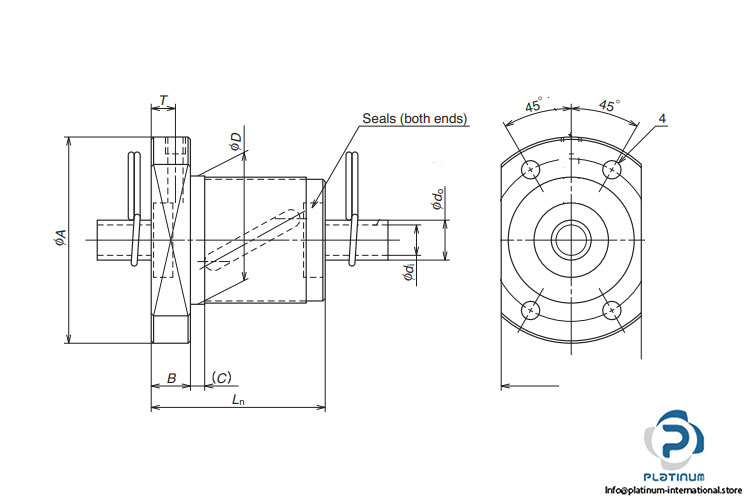

Dimensions:

A: 28 mm

D: 16 mm

L_n : 31 mm

H: 19 mm

B: 6 mm

Path length: 84 mm

Shaft Total length: 133 mm
