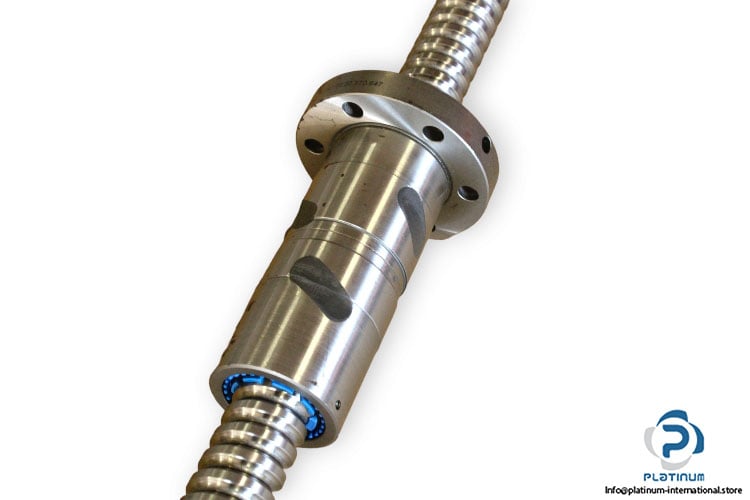

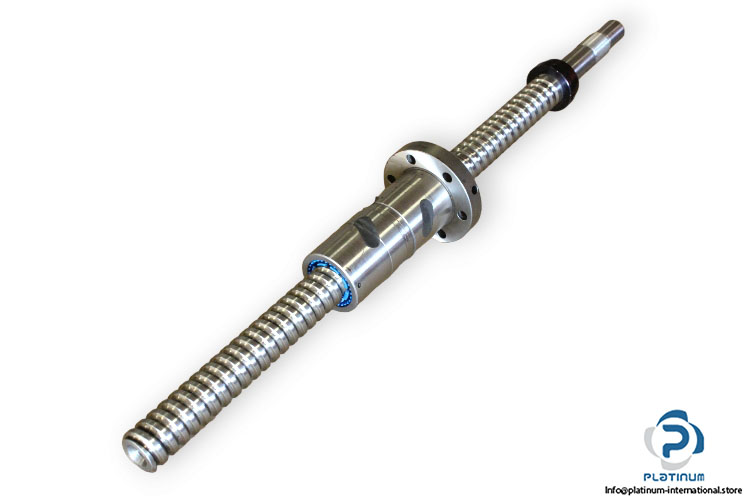

Steinmeyer 1514.162/10.32.510.647 Flange Double NUT Ball Screw

Name: STEINMEYER 1514.162/10.32.510.647 FLANGE DOUBLE NUT BALL SCREW
SKU: 1008081
Availability: LimitedAvailability

steinmeyer-1514-162_10-32-510-647-flange-double-nut-ball-screw-1

steinmeyer-1514-162_10-32-510-647-flange-double-nut-ball-screw-2

steinmeyer-1514-162_10-32-510-647-flange-double-nut-ball-screw-3

New

In stock3 unitsReady to ship

Manufacturer: STEINMEYER Type: Flange double nut with 2-point-contact, with standard synthetic wipers on both ends Model: 1514.162/10.32.510.647

Manufacturer

STEINMEYER

SKU

1008081

Category

Screw & Ball Screws

Condition

New

32 Ball d0:Double flanged Linear mm Motion nut screw Steinmeyer

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: STEINMEYER
Type: Flange double nut with 2-point-contact, with standard synthetic wipers on both ends

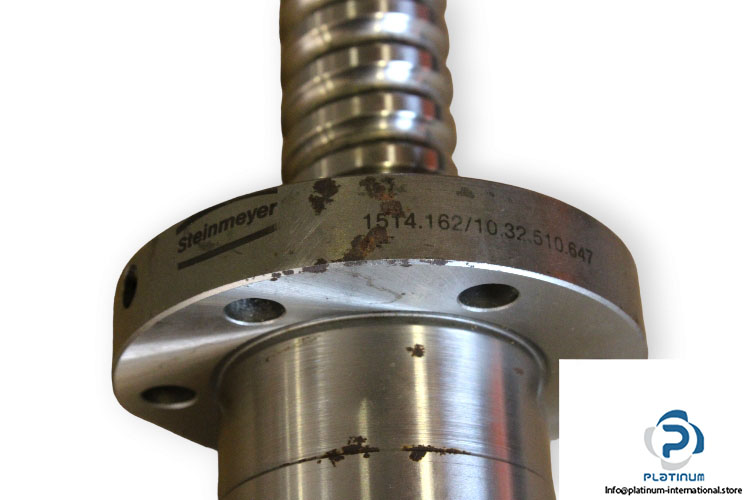

Model: 1514.162/10.32.510.647

Size: 32

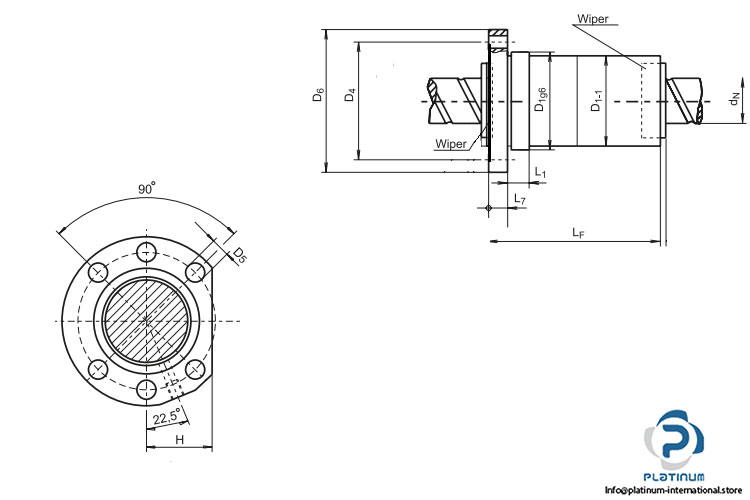

Dimensions:
Flange diameter: 88 mm
Nut outer diameter: 54 mm
Nut length: 141 mm
Flange thickness: 15 mm
Nominal Diameter d_N: 32 mm
Lead P: 10 mm
Direction of Lead: Right-Hand Thread
Threaded length: 510 mm
Total screw length: 647 mm

Specification	Value
Weight	4,95 kg
Condition	New
Size	32 x 10 R
Shelf No.	231221
Flange Thickness [mm]	15 mm
Manufacturer	STEINMEYER
Type of Product	FLANGE DOUBLE NUT BALL SCREW
Flange Diameter [mm]	88 mm
Nut Length [mm]	141 mm
Nut Outer Diameter [mm]	54 mm
