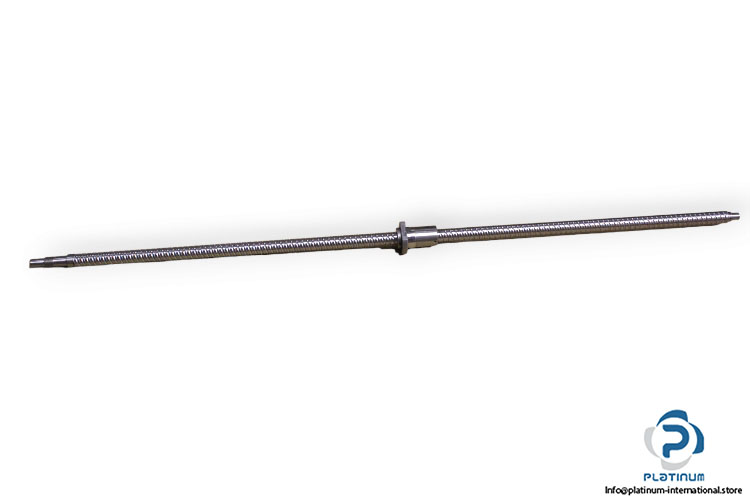

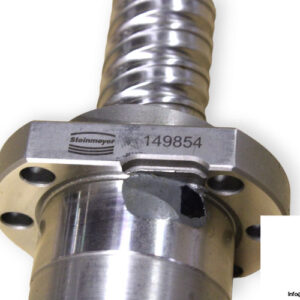

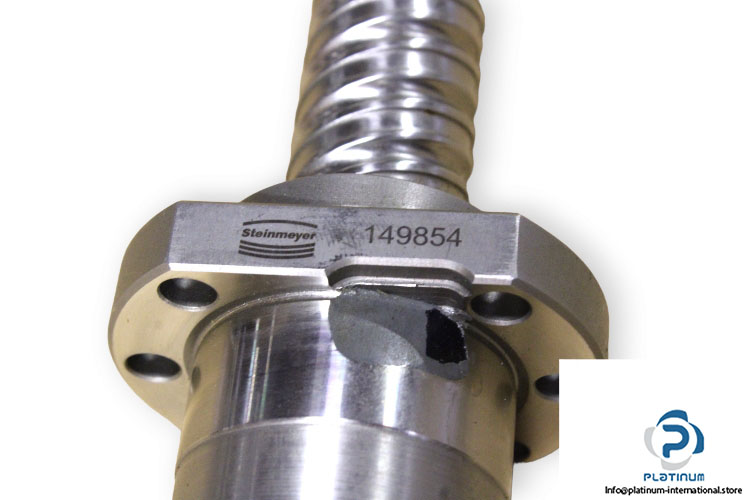

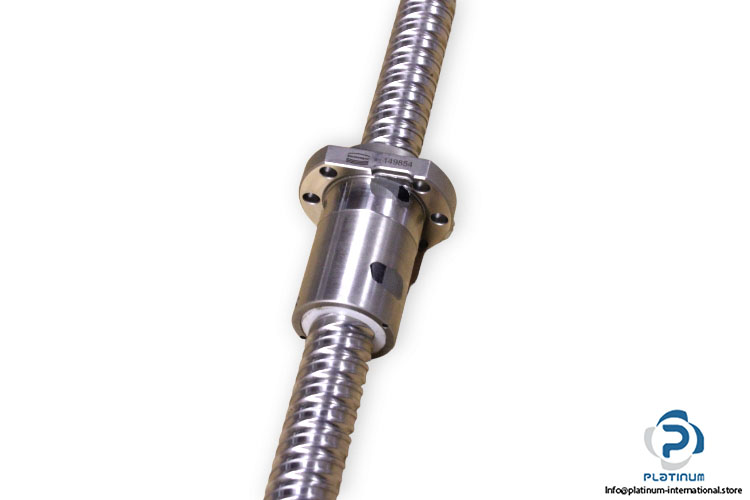

Steinmeyer 149854 Ball Screw

Steinmeyer-149854-ball-screw
steinmeyer-149854-ball-screw-1
steinmeyer-149854-ball-screw-2
steinmeyer-149854-ball-screw-3
New
In stock4 unitsReady to ship

Manufacturer: STEINMEYER Type: Flange nut with dual start Model: 149854

Manufacturer
STEINMEYER
SKU
1008117
Category
Screw & Ball Screws
Condition
New
25Balld0:DualflangedLinearmmMotionnutscrewStartSteinmeyer
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: STEINMEYER
Type: Flange nut with dual start
Model: 149854

Size: 25
Nominal Diameter dN: 25 mm

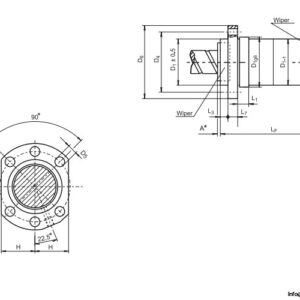

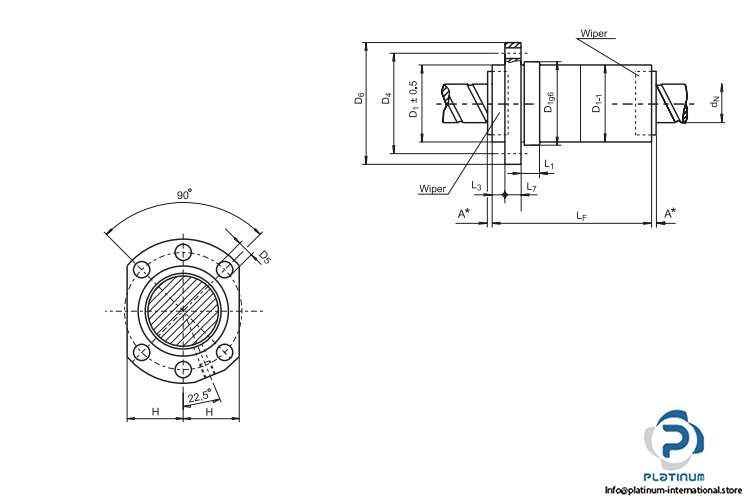

Dimensions:
Flange diameter: 62 mm
Nut outer diameter: 40 mm
Nut length: 76 mm
Flange thickness: 10 mm
Cutting flange width: 48 mm
Lead P: 20 mm
Direction of Lead: Right-Hand Thread
Threaded length: 1260 mm
Total screw length: 1370 mm

More From STEINMEYER

Steinmeyer 40-15 Ball Screw
Used

STEINMEYER

Steinmeyer 40-15 Ball Screw

SKU: 1008078

Qty: 2

Available through quotation
Steinmeyer 40-15 Ball Screw
New

STEINMEYER

Steinmeyer 40-15 Ball Screw

SKU: 1008080

Qty: 2

Available through quotation

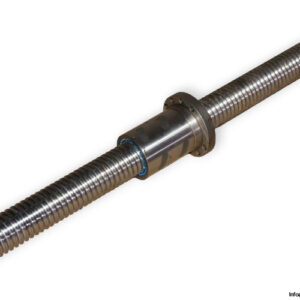

Steinmeyer 63-10 Ball Screw
Used

STEINMEYER

Steinmeyer 63-10 Ball Screw

SKU: 1042246

Qty: 1

Available through quotation
Steinmeyer 63-10 Ball Screw
Used

STEINMEYER

Steinmeyer 63-10 Ball Screw

SKU: 1042249

Qty: 2

Available through quotation
Steinmeyer 1516.73/5.63.745.950 P3 Flange NUT Ball Screw
New

STEINMEYER

Steinmeyer 1516.73/5.63.745.950 P3 Flange NUT Ball Screw

SKU: 1086983

Qty: 1

1 666,66$
Add to Cart

Related Products

Steinmeyer 32-10 Ball Screw
Used

STEINMEYER

Steinmeyer 32-10 Ball Screw

SKU: 1008076

Qty: 5

499,99$
Add to Cart
Steinmeyer 120370 Flange Double NUT Ball Screw
Used

STEINMEYER

Steinmeyer 120370 Flange Double NUT Ball Screw

SKU: 1008084

Qty: 1

Available through quotation
Rexroth Star 1552-3-1004 Adjustable Single NUT SEM-E-S
UsedAvailable on request

REXROTH STAR

Rexroth Star 1552-3-1004 Adjustable Single NUT SEM-E-S

SKU: 1007763

Available on request

1 499,00$
Steinmeyer 1514.162/10.32.510.647 Flange Double NUT Ball Screw
New

STEINMEYER

Steinmeyer 1514.162/10.32.510.647 Flange Double NUT Ball Screw

SKU: 1008081

Qty: 3

Available through quotation
THK BLK3636 Ball Screw
New

THK BLK3636 Ball Screw

SKU: 1000801

Qty: 3

Available through quotation
Platinum International
Surplus, New & Used - Always Reliable
STEINMEYER SKU: 1008117
Steinmeyer 149854 Ball Screw
Steinmeyer 149854 Ball Screw
PriceOn Request
Stock4 In stock
ManufacturerSTEINMEYER
CategoryScrew & Ball Screws
ConditionNew
SKU1008117

Manufacturer: STEINMEYER
Type: Flange nut with dual start
Model: 149854

Technical Specifications
Weight5,05 kg
ConditionNew
Size25 x 20 R
Shelf No.231221
Flange Diameter [mm]62 mm
Nut Outer Diameter [mm]40 mm
Flange Thickness [mm]10 mm
ManufacturerSTEINMEYER
Type of ProductBALL SCREW
Nut Length [mm]76 mm
Cutting Flange Width [mm]48 mm
