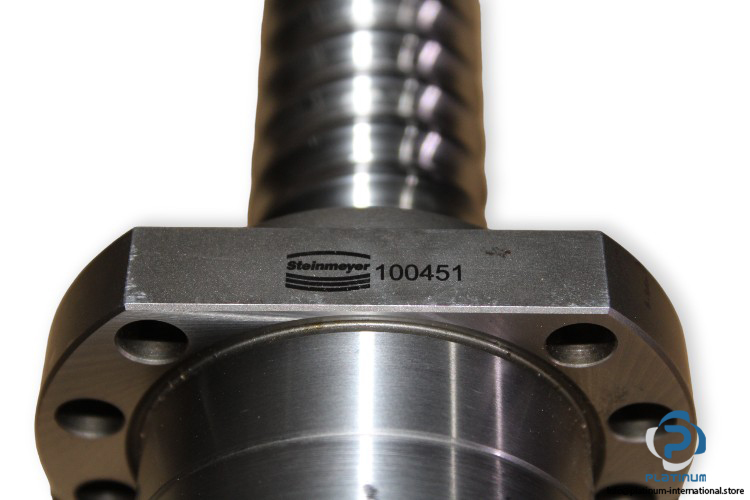

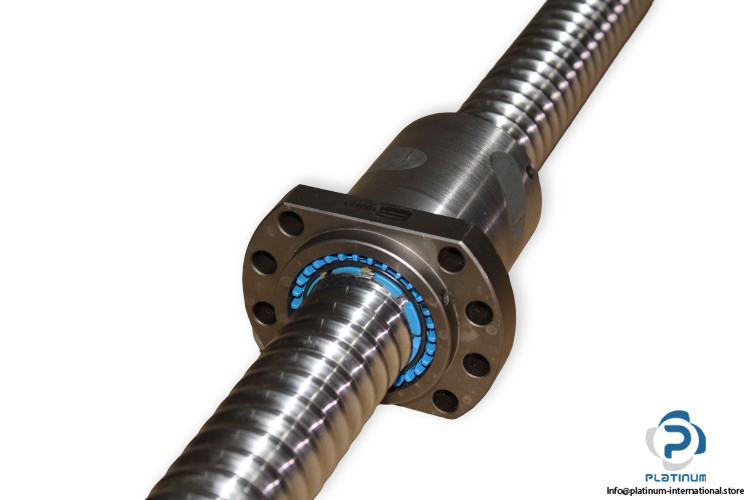

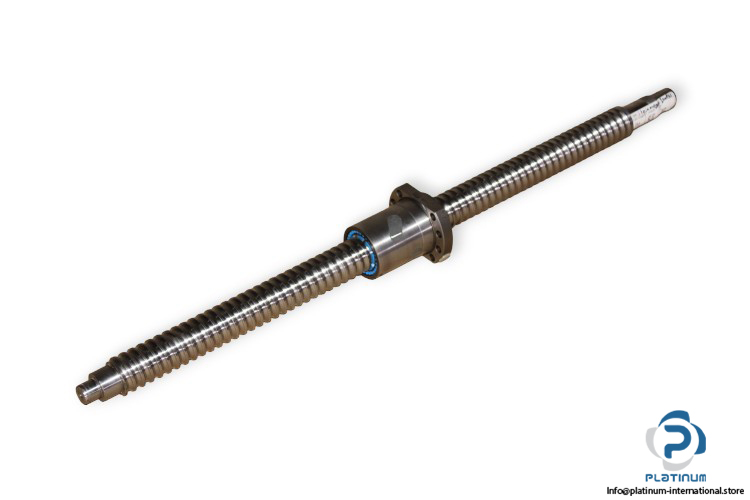

Steinmeyer 100451 Ball Screw

Manufacturer: STEINMEYER
Type: DIN Standard Flanged Nut, Ball Oversize Preload
Model: 1416/10.40.700.830
Nut type: 1416/10.40.7,5.4

Size: 40
Nominal Diameter d_N: 40 mm
Lead P: 10 mm
No. of circuits i: 4
Ball diameter d_W: 7.5 mm
Direction of Lead: Right-Hand Thread
Dynamic load rating C_a: 59 kN
Static load rating C_0a: 95.1 kN
Stiffness R_{nu, ar}: 520 N/µm
Threaded length: 700 mm
Total screw length: 830 mm
L1: 16 mm
D4: 78 mm
