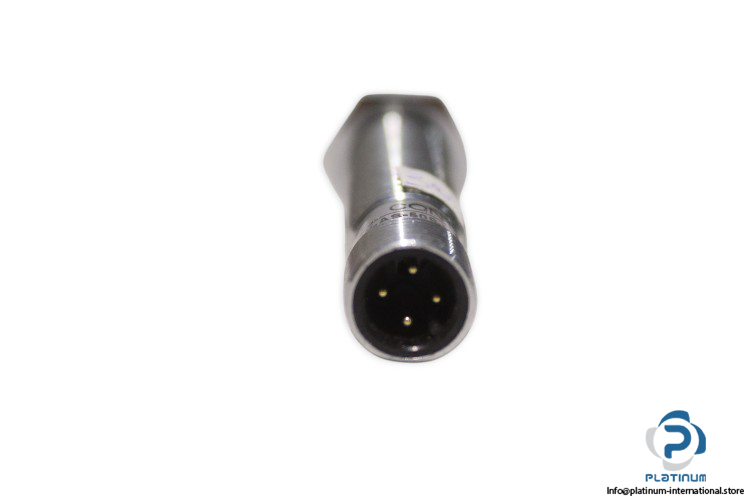

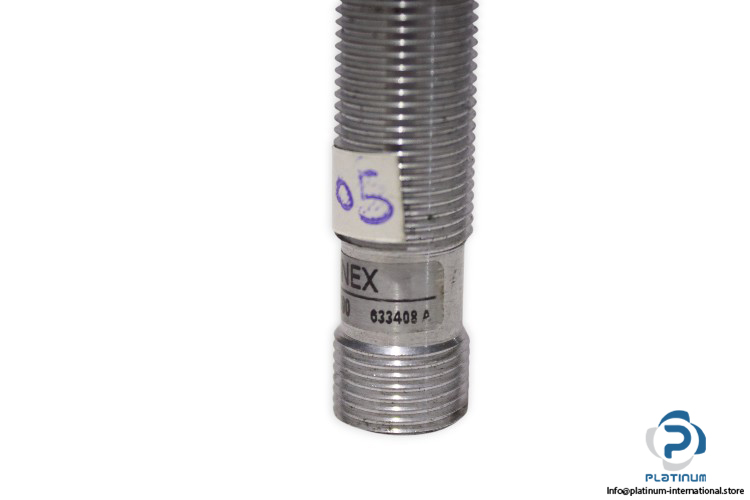

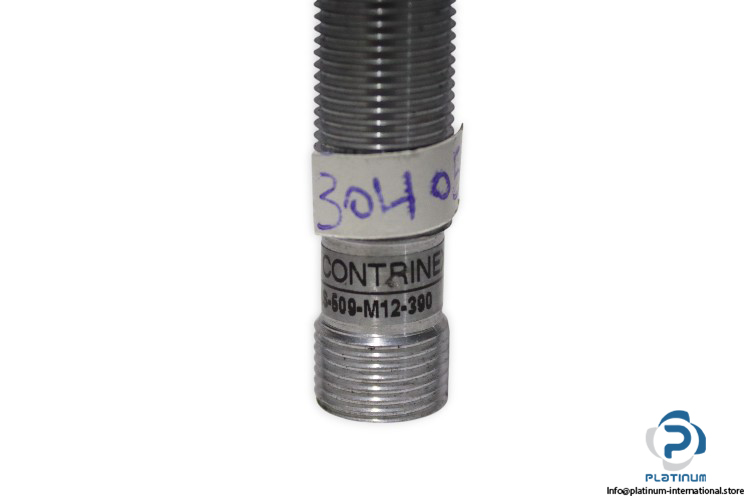

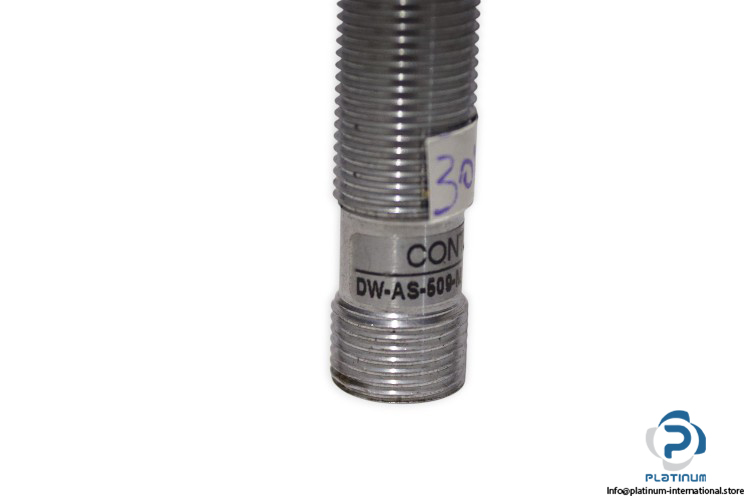

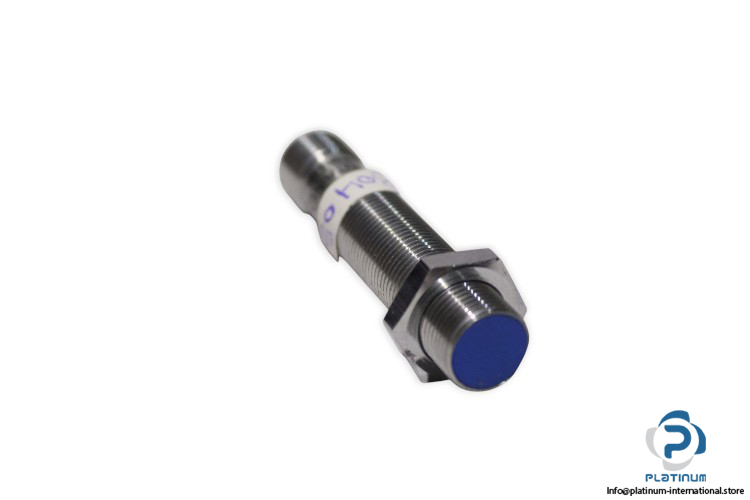

CONTRINEX DW-AS-509-M12-390 Inductive Proximity Switch
The CONTRINEX DW-AS-509-M12-390 is a durable inductive proximity switch designed for precise and reliable detection in industrial environments. With a compact M12 housing, wide supply voltage range, and robust protection class, it ensures consistent performance in demanding applications.
Manufacturer: CONTRINEX
Type: Inductive Proximity Switch
Model: DW-AS-509-M12-390
MRN: 633408 A
Technical Information
- Operating Distance: 6 mm
- Supply Voltage Range (UB): 15…30 VDC
- Housing: M12
- Housing Material: Chrome-plated brass
- Sensing Face Material: PBTP
- Protection Class: IP67
- Connection: M12 4-pin
- Output: 0…10 V, 4…20 mA
- Operating Temperature: -25 / 70°C
