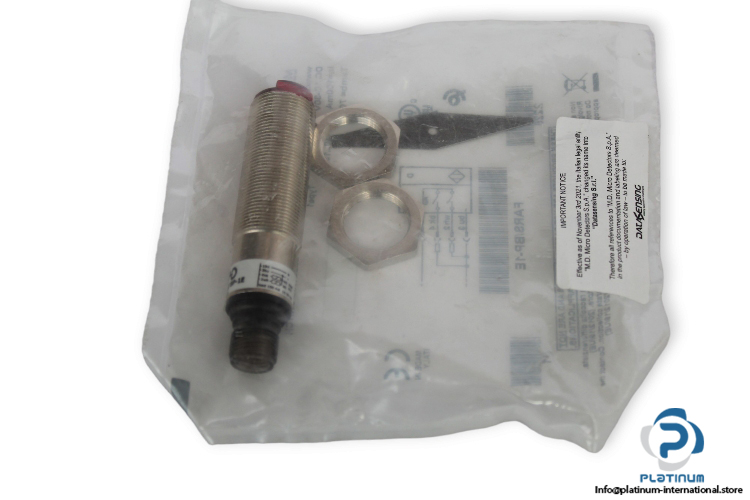

Micro Detectors FARS/BP-1E Direct Diffuse Sensor

Name: MICRO DETECTORS FARS/BP-1E DIRECT DIFFUSE SENSOR
SKU: 1043649
Availability: LimitedAvailability

micro-detectors-FARS_BP-1E-direct-diffuse-sensor-(new)

micro-detectors-FARS_BP-1E-direct-diffuse-sensor-(new)-1

New

In stock4 unitsReady to ship

Manufacture:

Micro Detectors

Type:

Direct Diffuse with Adjustable Background Suppression

Model:

FARS/BP1E

Series:

FARS

Manufacturer

MICRO DETECTORS

SKU

1043649

Category

Sensors

Condition

New

Adjustable Background Detectors Diffuse Direct MD Micro NC NO Other PNP Sensor suppression With

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacture: Micro Detectors
Type: Direct Diffuse with Adjustable Background Suppression
Model: FARS/BP1E
Series: FARS

Sensing Distance range: 30 … 130 mm
Ripple: ≤ 10 %
Switching Frequency: 1 KHz
Operating Voltage: 10 … 30 V DC
Supply Current: 25 mA
load Current: 100 mA
Tightening Torque: 25 Nm
Electrical Design: PNP
Switching Output: 1 Normally open/ 1 Normally closed
Protection Class: IP67
LEDs: Yellow
Operating Temperature: -25 … 70°C
Plug Connection: Axial M12 plastic plug output
Housing material: plastic
Optic material: plastic
Optic: axial
Length: 79.4 mm

Specification	Value
Weight	0,06 kg
Condition	New
Min. Sensing Range [mm]	30
Material	Plastic
Max. Sensing Range [mm]	130
Length [mm]	79
Manufacturer	MICRO DETECTORS
Nominal Voltage [DC]	24 V
Contact	1 NC, 1 NO
Torque [Nm]	25
Current [A]	0.1
Shelf No.	240420
Diameter [mm]	M12
Type of Product	Direct Diffuse with Adjustable Background Suppression
Connection	Axial M12 plastic plug output
