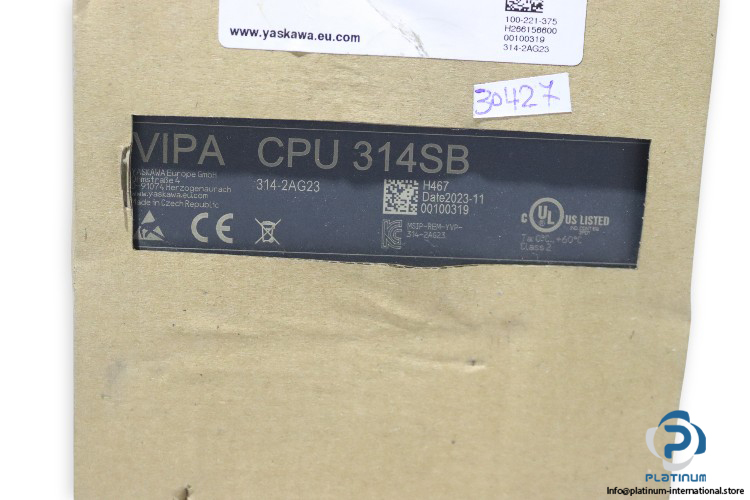

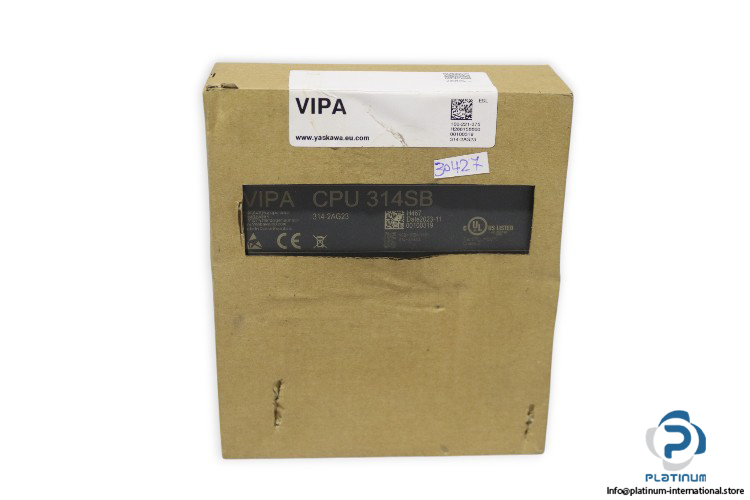

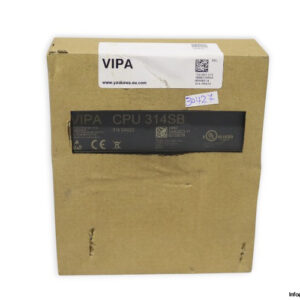

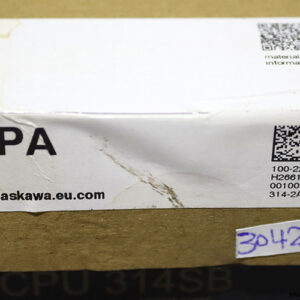

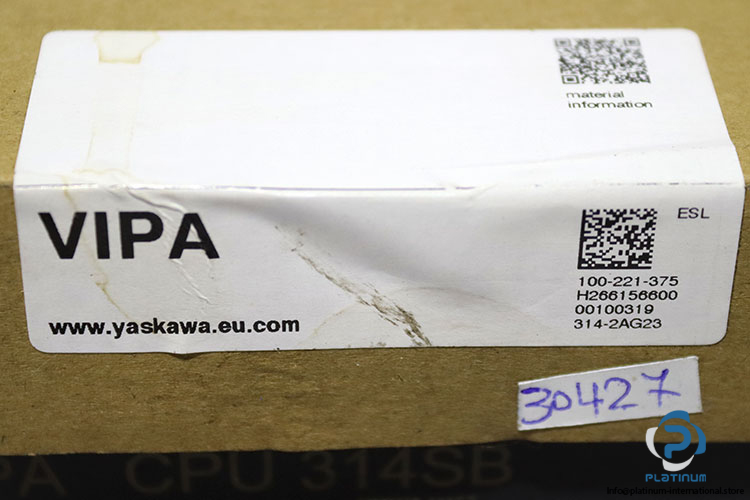

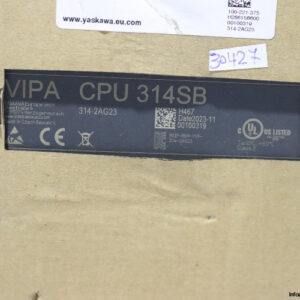

VIPA Yaskawa CPU314SB Compact CPU Module

The VIPA Yaskawa CPU314SB is a high-performance compact CPU module from the 300S series, designed for industrial automation applications. It provides advanced connectivity and reliable operation with integrated MPI, Ethernet, and PROFIBUS DP interfaces.

Manufacturer: VIPA Yaskawa
Type: Compact CPU Module
Model: CPU314SB
Part Number: 314-2AG23
Series: 300S

Technical Information

• Interfaces: MPI interface, card slot, real time clock, Ethernet interface for PG/OP, PROFIBUS DP master
• Power Supply (Rated Value): DC 24 V
• Power Supply (Permitted Range): DC 20.4…28.8 V
• Current Consumption (No-Load Operation): 200 mA
• Current Consumption (Rated Value): 1 A
• Inrush Current: 5 A
• I²t: 0.5 A²s
• Max. Current Drain at Backplane Bus: 2.5 A
• Work Memory (Integrated): 512 KB
• Work Memory (Maximal): 1 MB
• Memory Card Slot: SD/MMC-Card with max. 2 GB
• Modules per Rack (Max.): 8 in multiple, 32 in a single rack
• Number of Integrated DP Master: 1
• Number of DP Master via CP: 4
• Operable Function Modules: 8
• Operable Communication Modules PtP: 8
• Operable Communication Modules LAN: 8
