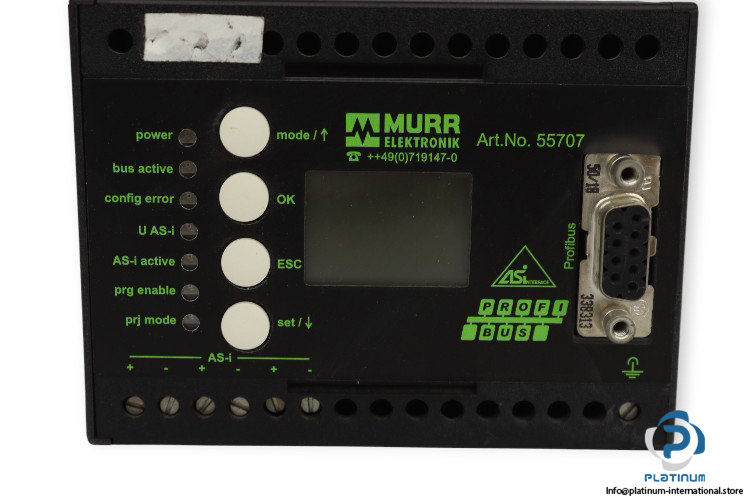

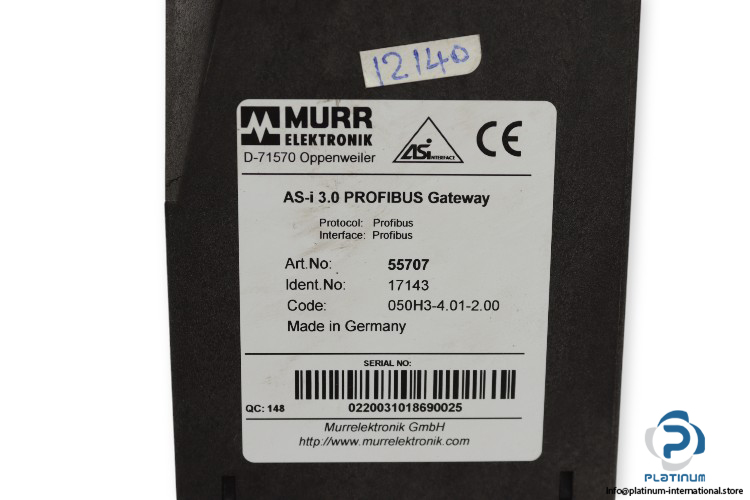

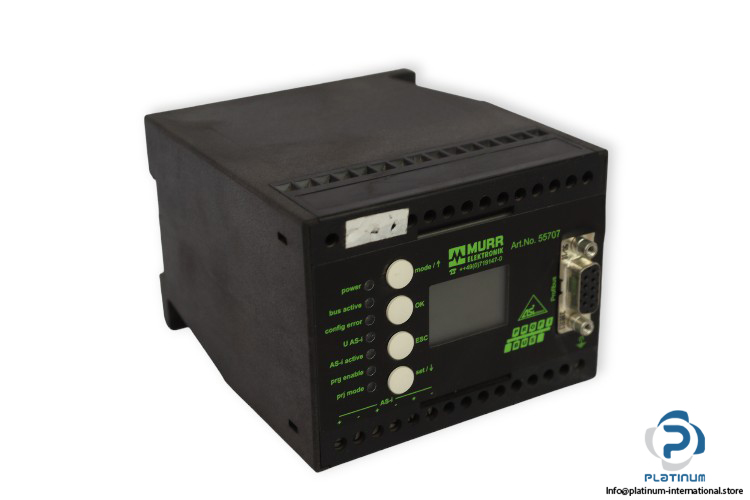

Murr 55707 Gateway Profibus

Manufacturer: Murr Elektronik
Type: Gateway Profibus
Model: AS-I 3
Art. No.: 55707
Ident. No.: 17143
Order code: 050H3-4.01-2.00

Network protocol: PROFIBUS
Device type: Gateway
Supply Voltage: 26.5 … 31.6 V DC
Max. Operating Current: 200 mA
Test isolation voltage: min. 500 V
Mounting method: DIN-rail mountable (EN 60715)
Bus connection: via screw terminals on the front
No. of slaves: max. 62
Fieldbus Buttons: 4 (mode/set/OK/ESC)
Transfer rate: 9.6…1 2000 kBaud, automatic detection
Temperature Range: 0 … 55°C
Protection degree: IP20
Dimensions: 83 × 75 × 120 mm
