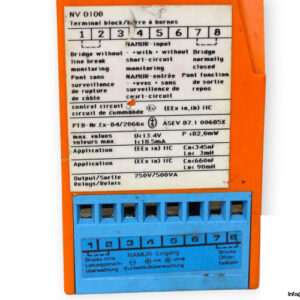

Manufacture: Ifm
Type: Switching amplifiers for Namur sensors
Model: N00109
Series: NV 0100

Application: short-circuit monitoring; Wire monitoring
Operating voltage: 230 V AC
No. of channels: 1
Electrical design: relay
Contact rating: 4 A, 250 V AC / 500 VA
Switching frequency: 10 Hz
Protection degree: Housing IP 30, Terminal: IP 20
Mounting: DIN rail
Connection terminals: 16 x …2.5 mm²
Ambient temperature: -20 … 60°C
Dimensions: 75 x 55 x 110 mm
