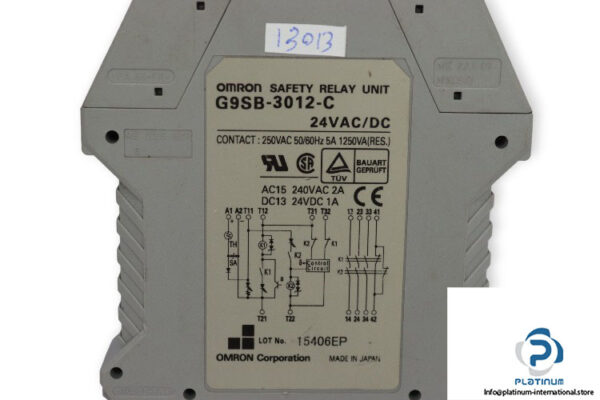

Manufacturer: Omron
Type: Safety Relay
Model: G9SB3012C

Rated Voltage: 24 VAC/VDC
Input current: 30 mA max
Power consumption: 1.7 VA/1.7 W max
Number of input channels: 2 channels
Main contacts: 3PST-NO 3 safety contacts
Auxiliary Contact: SPST-NC
Switching rating:
AC15: 240 V AC,2 A
DC13: 240 V DC,1 A
Contact load: 250 VAC, 5 A,1250 VA
Frequency: 50/60 Hz
Contact resistance: 100 mohm
Operating time: 30 ms max
Ambient operating temperature: -25 … 55°C
Terminal tightening torque: 0.5 N·m
Dimensions: 22.5 x 112 x 100 mm
