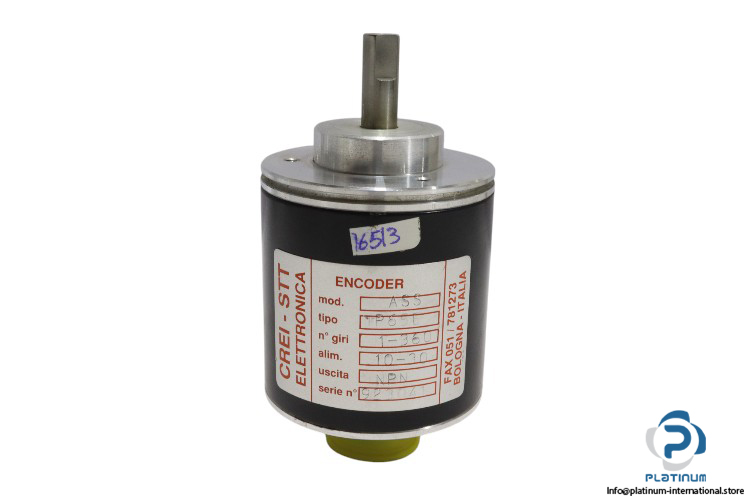

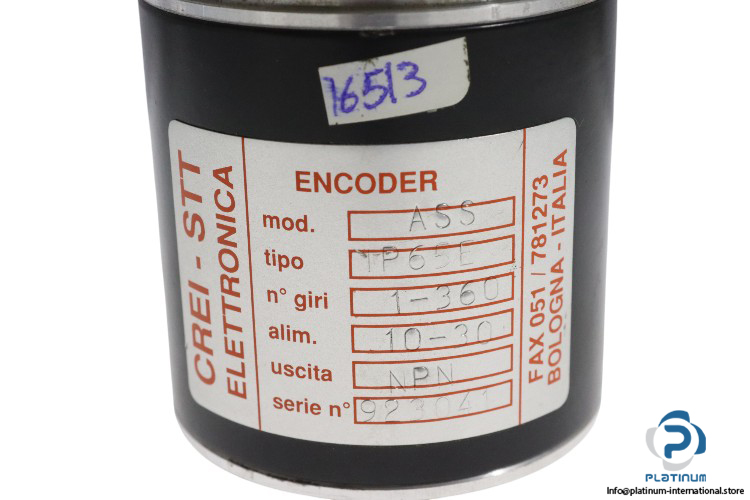

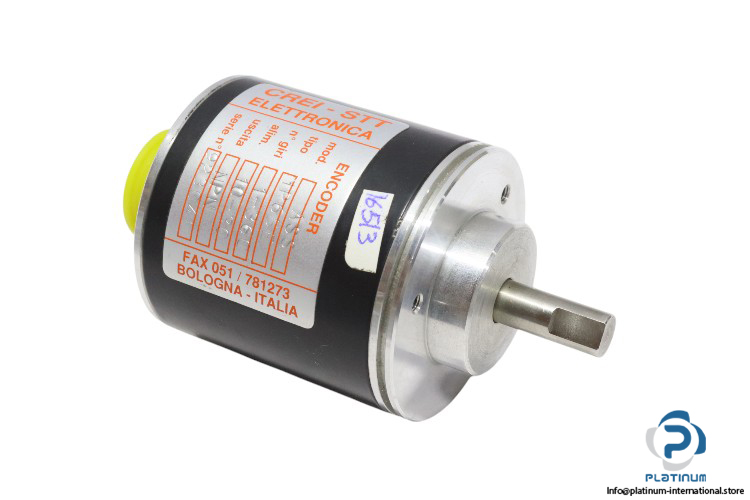

CREISTT ASS IP65E Absolute Encoder

The CREISTT ASS IP65E Absolute Encoder is a high-precision encoder designed for automation systems requiring stable feedback and rugged design. With a supply voltage of 10“30 VDC, IP65 protection, and a stainless steel Ø10×26 mm shaft, it delivers reliable performance in harsh industrial environments.

Manufacturer: CREISTT

Type: Absolute Encoder

Model: ASS

Part No.: IP65E

Technical Information:

• Supply Voltage: 10“30 VDC
• Max RPM: 3000
• Max Output Current: 30 mA
• Output Signal: Parallel open-collector NPN
• Current Consumption: 80“120 mA
• Protection Type: IP65
• Temperature Range: 0“60°C
• Case Material: Anodized aluminum
• Flange Type: Round, 65 mm
• Shaft Type: Ø10×26 mm stainless steel
• Starting Torque: 2 Ncm

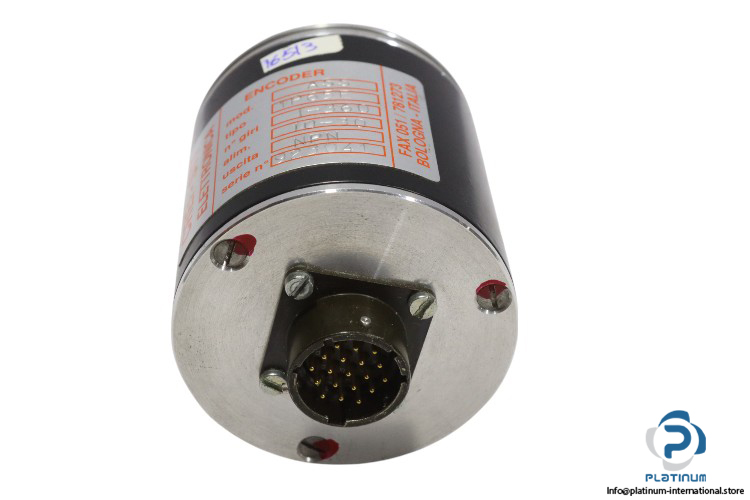

• Connector: 19-pin MIL male, axial
• Max Cable Length: 15 m
