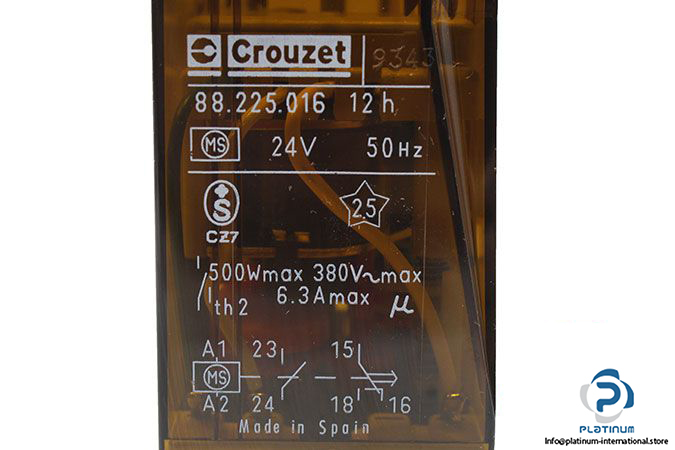

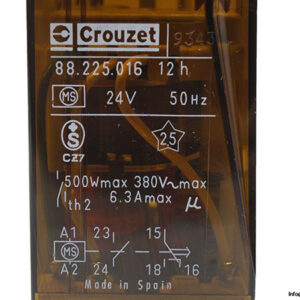

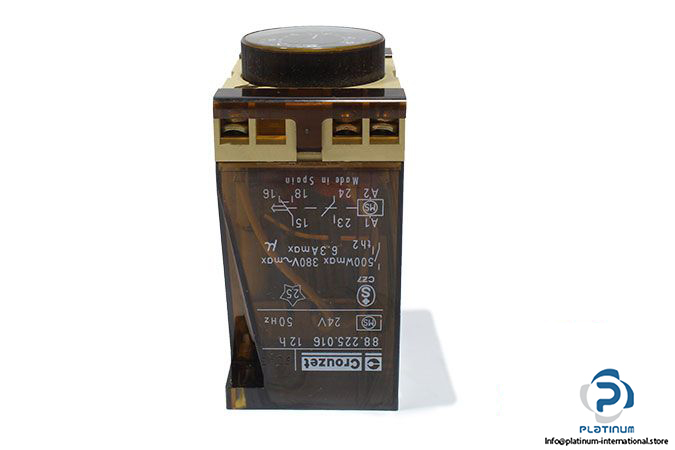

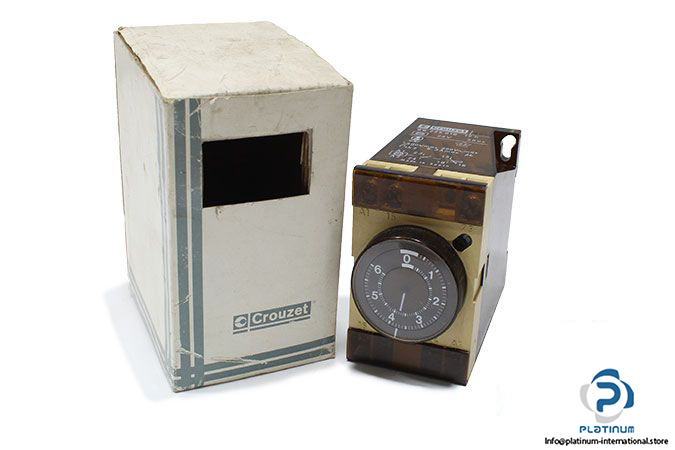

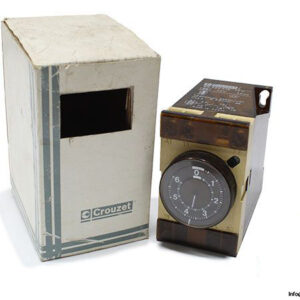

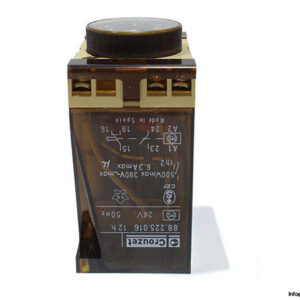

Crouzet 88225016 Time Delay Relay
The Crouzet 88225016 is a mechanical time delay relay designed for precise timing control in automation and electrical systems. Built for reliability and long operational life, it offers easy adjustment with a hand dial and durable screw-terminal connections, making it ideal for industrial panels and machinery.
Manufacturer: Crouzet
Type: Time Delay Relay
Model: 88225016
Technical Information
- Supply Voltage: 24 VAC
- Frequency: 50 Hz
- Reset Time: 12 hrs
- Contact Voltage: 380 VAC
- Contact Power: Max. 500 W
- Contact Current: Max. 6.3 A

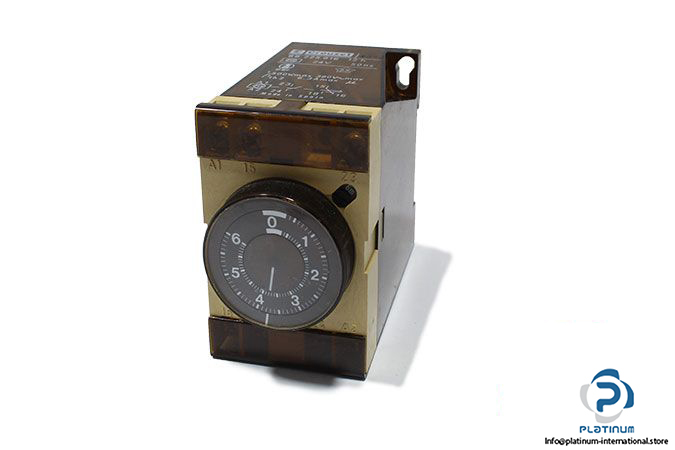

- Timing Adjustment Method: Hand Dial
- Termination Style: Screw Terminal
- Relay Type: Mechanical Relay
- Dimensions: 54 × 91 × 70 mm
