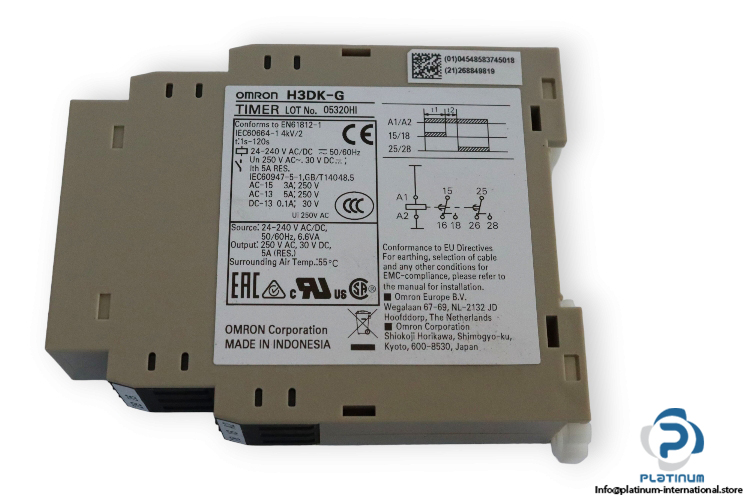

Omron H3DK-G Timer
Manufacturer: OMRON
Type: Timer
Model: H3DKG
Rated Supply Voltage: 24 … 240 V AC / DC
Power Consumption: 6.6 VA
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 5 kV
Time Range: 1 … 120 sec
Contact: SPDT 2 Changeover (CO)
Rated Contact Voltage: 250 V AC / 30 V DC
Rated Contact Current: 5 A
Operating Mode: Star-Delta
Protection Class: IP30
Ambient Temperature: -20 … 55 °C
Dimensions: 79 x 22.5 x 100 mm
