Manufacturer: Crouzet
Type: DIN Rail Mount

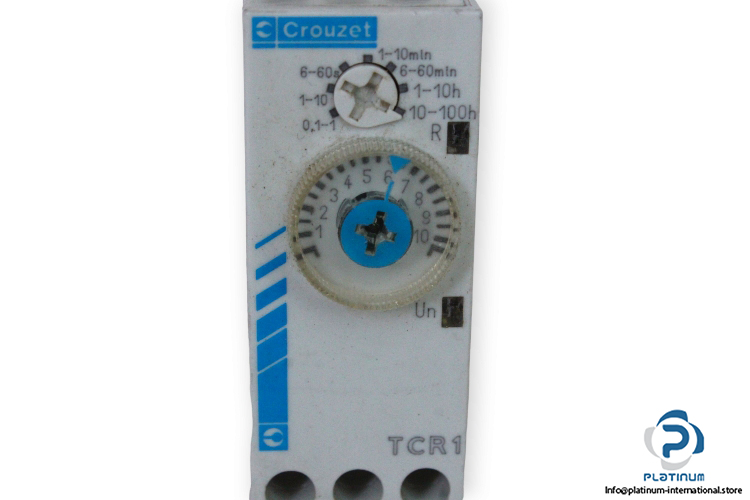

Model: TCR1

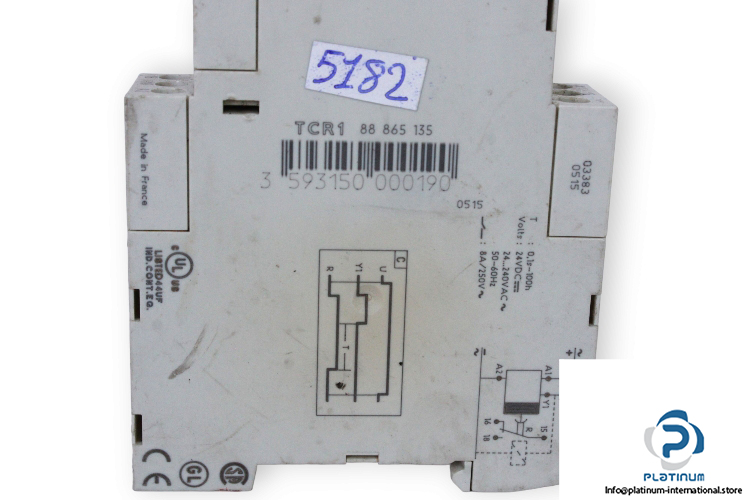

Part No: 88 865 135

Supply Voltage: 24 V DC, 24 … 240 V AC
Frequency: 50 … 60 Hz
Contact Configuration: 1 Changeover (CO)
Contact Voltage: 250 V AC
Contact Current: 8 A
Measuring Range: 0.1 s … 100 h
Rated Power: 2000 VA
Operating Temperature: -20 … 60 °C
Degree of protection: IP20
Housing Material: Self-extinguishing
Dimensions: 78 X 22.5 X 103.5 mm
