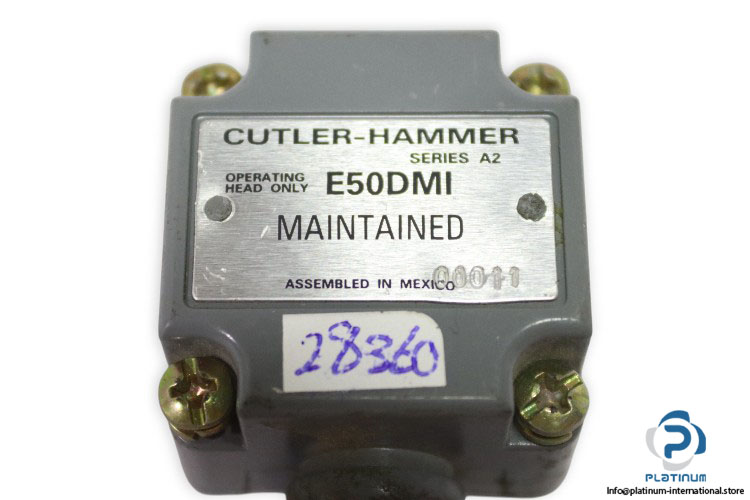

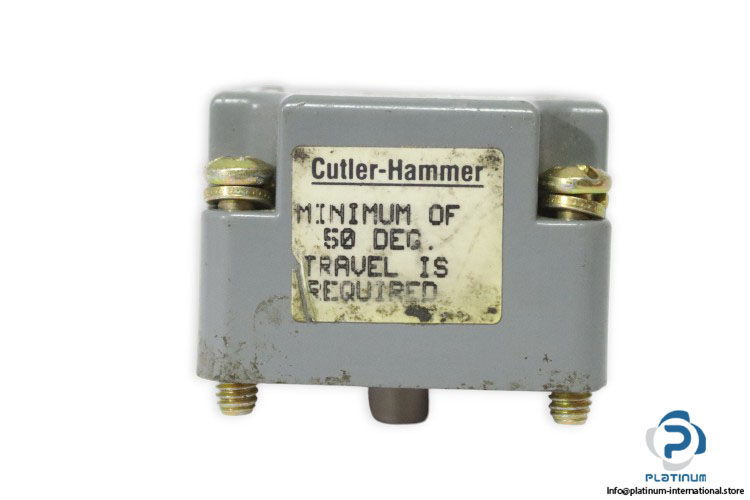

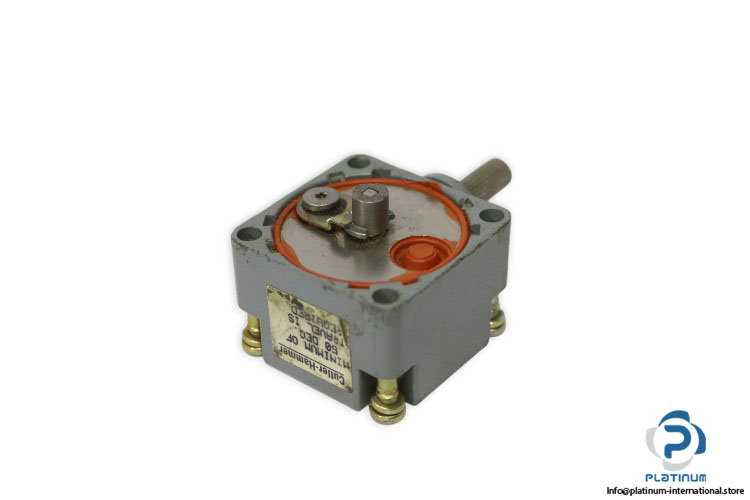

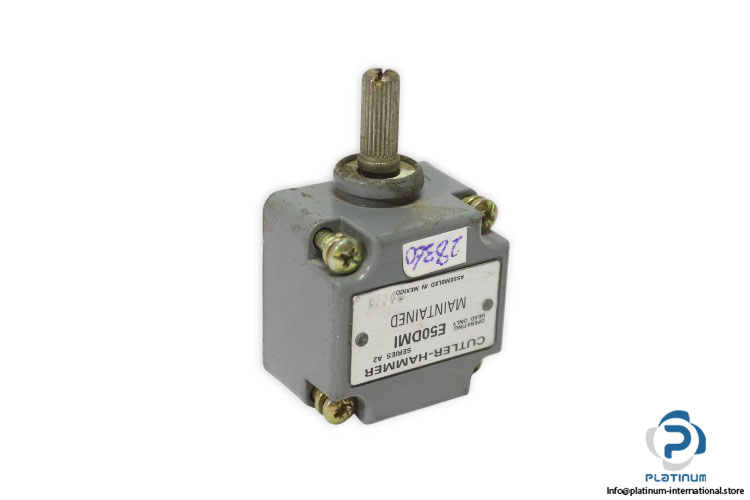

EATON / CUTLER-HAMMER HEAVY DUTY LIMIT SWITCH E50DM1
The Eaton / Cutler-Hammer E50DM1 heavy duty limit switch from the A2 E50 series is designed for precise and durable performance in demanding industrial applications. Built with a die cast zinc enclosure and rated for harsh environments, this limit switch ensures reliable operation across a wide range of conditions.
Manufacturer: Eaton / Cutler-Hammer
Type: Heavy Duty Limit Switch
Model: E50DM1
Series: A2 E50
Technical Information
- Actuator Type: Side Rotary
- Travel to Operate Contacts: 50°
- Travel to Reset Contacts: 50°
- Total Travel: 90°
- Force to Operate Contacts: 3 in-lbs
- Operating Temperature: -10° to 94°C
- Enclosure Material: Die Cast Zinc
- Environmental Rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
