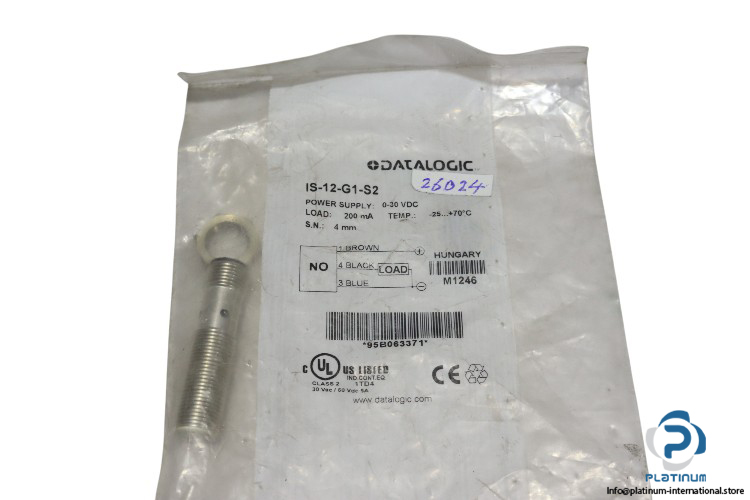

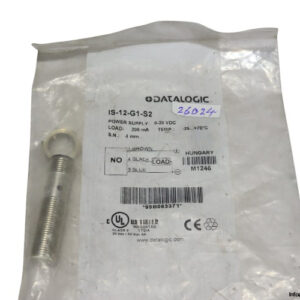

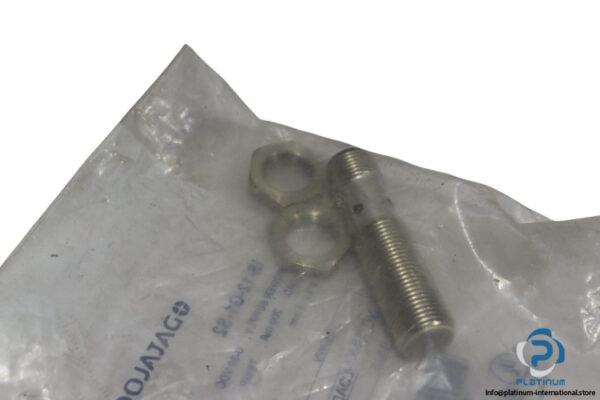

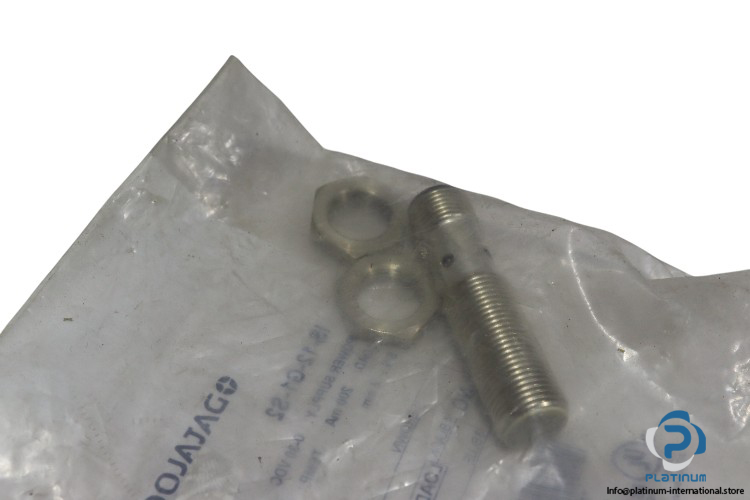

Datalogic IS-12-G1-S2 Inductive Proximity Sensor

The Datalogic IS-12-G1-S2 is a high-performance inductive proximity sensor designed for non-contact detection of metallic objects. With robust IP67 protection and compact dimensions, it is ideal for automation environments where precision, durability, and space-saving design are essential.

• Manufacturer: Datalogic
• Type: Inductive Proximity Sensor
• Model: IS-12-G1-S2

Technical Information:

• Nominal Sensing Distance: 4 mm
• Operating Voltage: 10…30V DC
• No-Load Supply Current: 10 mA
• Load Current: 200 mA
• Output Type: PNP
• Output Function: NO (Normally Open)
• Connections: M12 Plug
• Switching Frequency: 500 Hz
• Protection Class: IP67
• Housing Material: Nickel-plated brass
• Operating Temperature: -25°C / +70°C
• Dimensions: Ø12 x 48 mm
