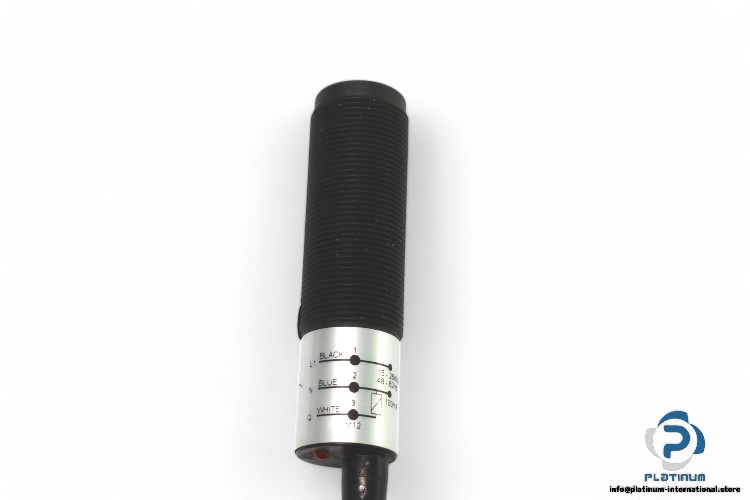

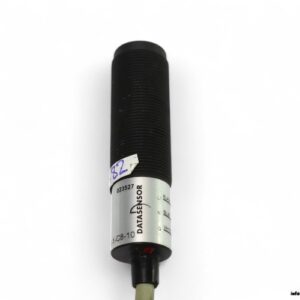

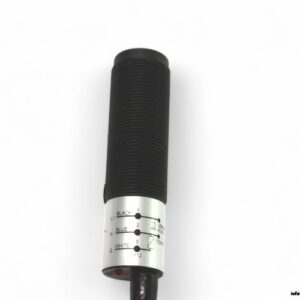

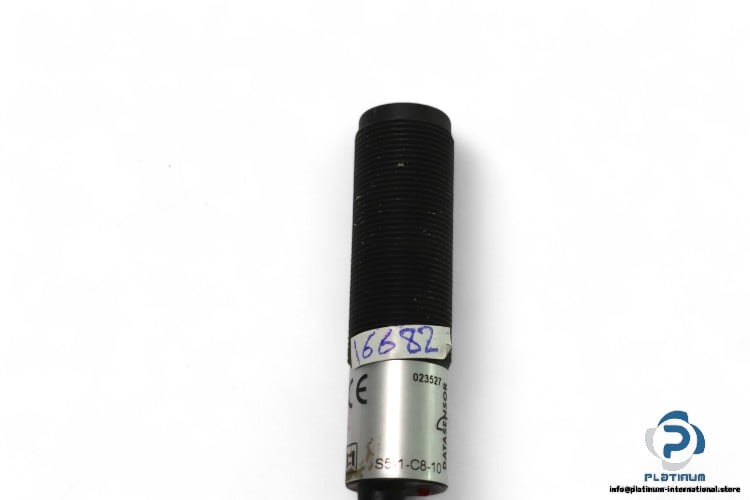

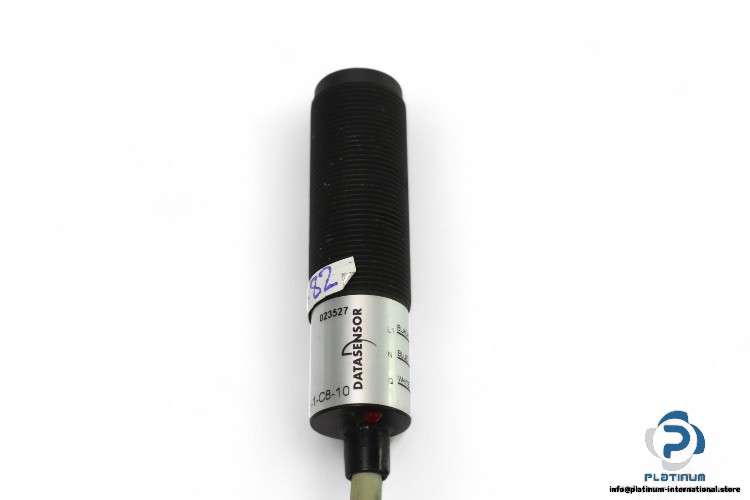

Datasensor S5-1-C8-10 Photoelectric Sensor

Manufacturer: DATASENSOR
Type: PHOTOELECTRIC SENSOR
Model: S5-1-C8-10

AC Type
Power supply: 15 to 264 V AC, 48 to 62 Hz
Current consumption: 10 mA max
Load current: 100 mA max
Switching frequency: 25 Hz max.
DC Type
Power supply: 10 to 30 V DC
Current consumption: 30 mA max.
Output Configuration: NPN/PNP transistor output 30 V DC max.
Load current: 150 mA max
Switching frequency: 500 Hz max.

Switching Output: Light-ON/Dark-ON selectable
Electrical Connection: M12 connector version
IP Class: IP67
Housing Material: Plastic
Operating Temperature: -15 … 55°C
